(4) Detaching and refitting the MP paper feed pulley and MP separation pad

Follow the procedure below to replace the MP paper feed pulley and MP separation pad.
Procedure
1. Open the front cover and remove the waste
toner box. Pull out the drawer.
2. Remove the screw and then the front left
lower cover.
3. Remove the paper conveying unit (see page
1-5-7).
4. Remove the stop ring and bushing at the
machine front side.
5. Remove the rear cover.
6. Remove the stop ring, MP paper feed clutch
and bushing at the machine rear side.

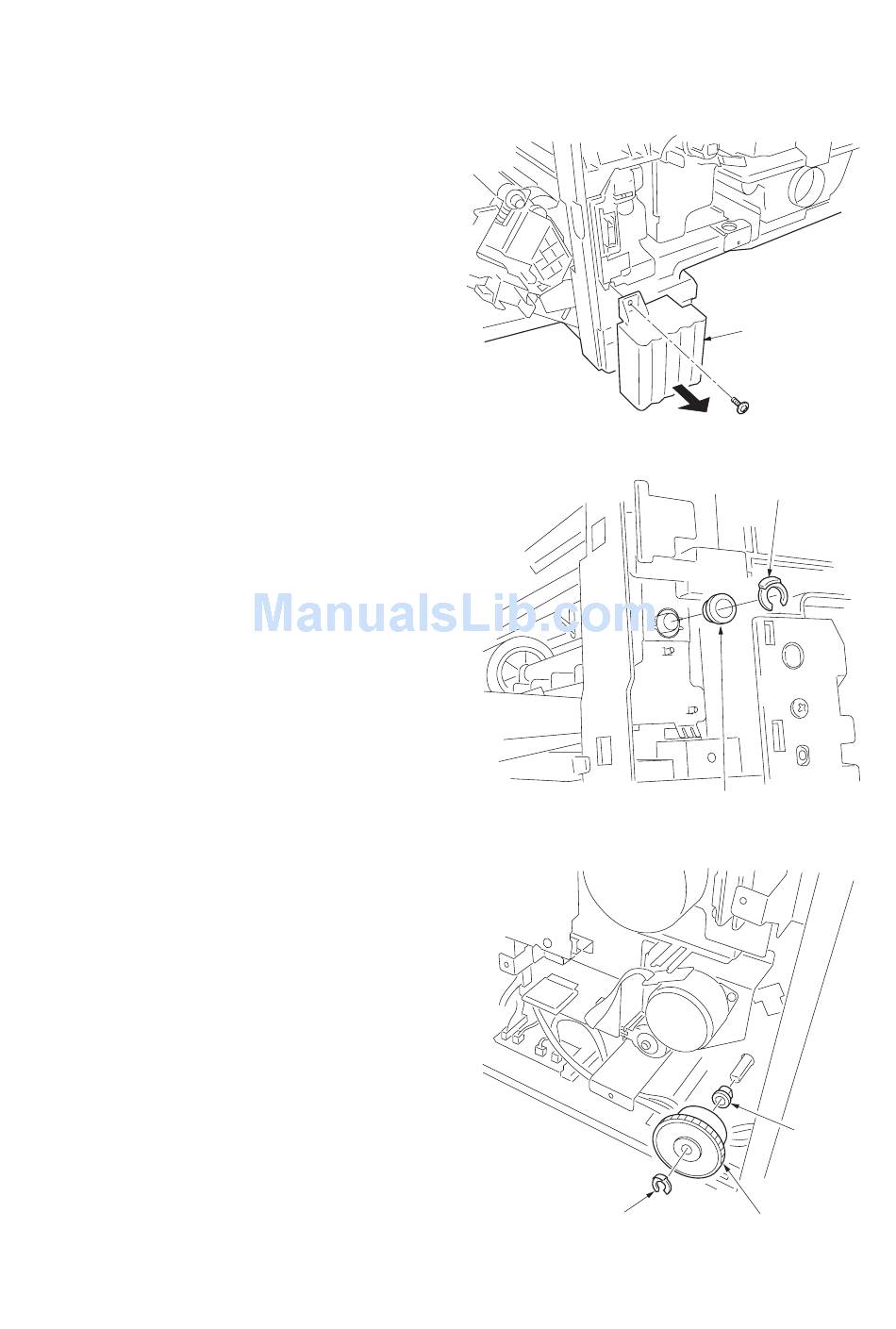

Front left lower
cover
Figure 1-5-15
Stop ring
Bushing
Figure 1-5-16
Stop ring
MP paper feed clutch
Figure 1-5-17
2HA/2HB
Bushing
1-5-9
