Page 1: Network Camera
CAM5130 D1 PTZ Dome Indoor Network Camera User Manual Release 1.0 October 2010... -
Page 2: Copyright Statement
Product specifications are also subject to change without notice. Trademarks Surveon and Surveon logo are trademarks of Surveon Technology Inc. All other names, brands, products or services are trademarks or registered trademarks of their respective owners... -
Page 3: Table Of Contents
User Account............... 20 Date & Time................ 23 Network ................. 24 Network Configuration ............25 Port Settings ............... 26 UPnP ................27 Video & Audio Settings ..............28 Basic Settings ..............28 Image Appearance ..............29 Surveon Network Camera User Manual... - Page 4 Surveon CAM5130 Video Streams ..............32 Audio Settings..............34 PTZ ..................35 Speed Adjustments:............... 35 Recording................36 Recording Basic Settings ............36 Recorded File Management ............37 Event Notification..............39 Event Server ............... 39 Motion Detection ..............41 Tampering Detection ............. 42 Tampering Detection .............
-
Page 5: Chapter 1. Overview

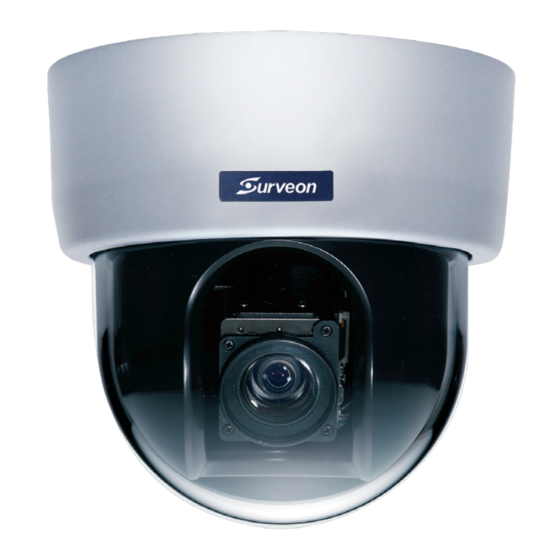

Overview 1.1. Network Camera Introduction CAM5130 is a professional IP network speed-dome camera capable of making 360 degree continuous rotation at 0.15 to 360 degrees per second, ensuring direct and accurate target positioning. CAM5130 uses Internet Protocol (IP) to transmit video streams and control signals over networks, and is capable of operating over both LANs and WANs. -
Page 6: Network Camera Specifications
Surveon CAM5130 1.3. Network Camera Specifications Image sensor 1/4" D1 Mintron CCD (Sony Chip) Lens 4.2 - 42 mm varifocal lens, F1.8 (wide) - F2.9 (telephoto) Day/Night ICR IR LED Min. illumination 0.07 Lux @ F1.8 (AGC on B/W) 0.5 Lux @ F1.0 (Color) -
Page 7: Network Camera Hardware Installation
Connect the camera to a power source. CAM5130s can accept power from a power adapter or from Power over Ethernet enabled switches. Connect the camera to a switch using an Ethernet cable. The Ethernet port is located on the rear of the camera. Surveon Network Camera User Manual... -
Page 8: Chapter 2. Connecting To The Network Camera
Web Browser – A simple web-based interface. Internet Explorer is the • recommended web browser for use with Surveon network cameras, and our examples will be from this browser. Usage on other browsers will be similar. RTSP Player – These include common streaming media players, such as •... -
Page 9: Connecting With A Web Browser
Enter the IP address of the network camera in the address bar of your browser and press enter. The IP address can be obtained using the Surveon IP Utility, or if your network does not have DHCP service, the default IP address is 192.168.88.10. -
Page 10: Logging Into The System For The First Time
Surveon CAM5130 Logging into the System for the First Time If this is the first time that the network camera is being accessed, the camera will prompt you to change the administrator password after your first login. Click Okay Click OK when informed of the need to change your password. This will cause a Configure Admin Password popup to display. -
Page 11: Installing Active X Components In Internet Explorer
Search for Download signed ActiveX controls. Under this heading select Prompt and then click OK. Continue installing the Active X components. After installing ActiveX, go to Tools> Internet Options> Trusted Websites> Sites and add the IP Address of the camera. Surveon Network Camera User Manual... -
Page 12: Logging Out Of The System
Surveon CAM5130 Logging Out of the System Logging off of the camera can be performed by closing the browser window. Users can also choose to click the Logout link located at the top of the screen. Using the Help Interface While using the web interface, you may click on the Help link located under the title bar. -
Page 13: Connecting With An Rtsp Player
Surveon CAM5130 2.2. Connecting with an RTSP Player Surveon cameras support connections through RTSP Media Players such as Real Player and QuickTime Player. Launch Real Player or QuickTime Player； Select File> Open URL, to open a URL dialog box. Enter the camera URL in the address bar. -
Page 14: Chapter 3. Web Interface
Surveon CAM5130 Chapter 3. Web Interface 3.1. Interface Layout This section demonstrates the layout of the network camera’s main interface. The 5 main areas on the interface are: 1. Menu Bar - The links on this bar allow users to toggle between live- view and settings screens, as well as logout and pull up the help menu. -
Page 15: Control Descriptions
Full-Screen: Goes to full-screen when clicked; press “ESC” to return to windowed view. Image Capture: When clicked, captures the current screen as an image in a new pop-up window and saves it in C:\Surveon\Record. This location can be changed under Settings> Recording> Recording Basic Settings. file name “Camera... - Page 16 Surveon CAM5130 Control Description Language: Sets the UI language. Available languages include English, Simplified Chinese, and Traditional Chinese. Streams: Allows users to choose which camera stream to view. The indicator above the stream will turn light green when the stream is selected.
- Page 17 Pan/Tilt Speed: The Pan and Tilt dropdowns define the amount which the camera will pan or tilt when one of the directional buttons is clicked in the Pan/Tilt Control. There are 3 options: Slow, Normal and Fast. Surveon Network Camera User Manual...
-
Page 18: Settings
Users may replace the default name with a new name consisting of alphanumeric characters, spaces and the ":" character. Camera Name: by default set to "Surveon + model name"; after • selecting Camera Name” from Settings> Video & Audio> Basic Settings, the Camera Name will show on the display. - Page 19 LED off during camera access - LED default on, off during camera access o LED always off - LED always off Click OK to save or Cancel to abort the changes before you leave the page. Surveon Network Camera User Manual...
-
Page 20: User Account
Surveon CAM5130 User Account The User Account section, found under General> User Account, controls the user account information and privileges. There are two pre-configured accounts: admin - This is the default administration account, and cannot be • deleted. guest - This is an account with only live view capability. - Page 21 Password - a passkey used to control user access. This password • should be retyped in the Confirm password field, to ensure that the correct key is saved. Click OK when finished to add the user to the system. Surveon Network Camera User Manual...
- Page 22 Surveon CAM5130 Editing Accounts In General> User Account under the User Account heading, select an existing account by clicking on the account entry. The entry will be highlighted in yellow. Clicking Edit will allow you to change the following fields: User Group - The system allows for 2 types of users.
-
Page 23: Date & Time
Synchronize with computer time - Synchronizes the time with the • computer’s internal clock. Click OK to save or Cancel to abort the changes before you leave the page. Surveon Network Camera User Manual... -
Page 24: Network
Surveon CAM5130 Network The network settings, including network configuration, port configuration, and universal plug and play (UPnP) settings are used to configure camera connectivity. These settings are found under the Settings > Network context. www.surveon.com... -
Page 25: Network Configuration
Select desired DDNS service website, check the Enable DDNS option, and fill in valid user name and password. You can then access the camera through the registered domain name. Click OK to save or Cancel to abort the changes before you leave the page. Surveon Network Camera User Manual... -
Page 26: Port Settings
Surveon CAM5130 Port Settings Ports are a software construct used to multiplex the transmission information to and from the camera. They act as separate endpoints within an IP address where software "listens" for incoming information. This section, which can be accessed under Network>... -
Page 27: Upnp
Start> Control Panel> Add or Remove Programs. In the Add or Remove Programs page, select Add/Remove Windows Components>Networking Services and click Details. Select UPnP from the popup window, and OK out to install UPnP services. Surveon Network Camera User Manual... -
Page 28: Video & Audio Settings
Surveon CAM5130 Video & Audio Settings Video and audio are the heat of a network camera's functionality. The settings for video and audio can be found under Settings> Video & Audio. Under this section, you can access basic video and audio settings, video appearance parameters, video stream settings, as well as audio parameters. -
Page 29: Image Appearance
Flickerless option and raise the brightness. Contrast - Adjusts the range between the brightest and darkest areas • of the image. Saturation - Adjusts the color saturation of the image. • Sharpness – Adjusts the sharpness of the image • Surveon Network Camera User Manual... - Page 30 Surveon CAM5130 Sensor Configuration The Sensor Configuration tabs provide the following options: AGC Gain – Adjusts the level of gain that the auto gain control function can apply. Auto white balance - turns on and off the auto white balance feature.
- Page 31 Schedule for day mode. Under Auto mode, Night gain threshold must be set, with ranges from 0 to 255. The schedule mode requires a start and end time to be set. Click OK to save or Cancel to abort the changes before you leave the page. Surveon Network Camera User Manual...
-
Page 32: Video Streams
Surveon CAM5130 Video Streams The configuration for video streams, including resolution, framerate and image quality parameters can be found under Video & Audio> Video Streams. The page is split into settings for 2 streams. Common settings are: Video format - The compression format for the video stream. - Page 33 QQVGA video, with MPEG4 compression at 128kbps and 2 seconds between key frames. None of the parameters can be changed. Click OK to save or Cancel to abort the changes before you leave the page. Surveon Network Camera User Manual...
-
Page 34: Audio Settings
Surveon CAM5130 Audio Settings The audio settings, under Video & Audio> Audio Settings, contain parameters dealing with audio coming from the cameras built in mic, or an external microphone. Mute - Selects whether or not to mute the incoming audio from the •... -
Page 35: Ptz
Surveon CAM5130 The CAM5130 Speed Dome has built in pan-tilt-zoom (PTZ) functionality, and is able to quickly change the camera’s viewing angle to pursue action. The PTZ menu Settings> PTZ> PTZ Settings allows configuration of PTZ functionality. Pan/Tilt Control: The directional buttons pan and tilt the camera view in the direction pressed. -
Page 36: Recording
Surveon CAM5130 Recording The Recording menu, Settings> Recording, deals with recording settings and managing recorded video files. Recording Basic Settings Recording basic settings, Recording> Recording Basic Settings are parameters which deal with the recording location and scheduling. The following parameters can be configured within this menu: Memory Card Recording - When turned on, video will automatically •... -
Page 37: Recorded File Management
You may also narrow the entries displayed by clicking on the Media Type column. This will give you the option of choosing All, H264, MPEG4, or MJPEG types. The system will only show video files of the format selected. Surveon Network Camera User Manual... - Page 38 Surveon CAM5130 Managing Video Files Once you have located the video files of interest you may select them by checking the box in the leftmost column of the entry. You can also select all displayed entries by checking the box in the header row.
-
Page 39: Event Notification
SMTP Server Port - the SMTP port of the email server; Default 25. • Test - Click this button to send a test email. E-mails will only be sent • if all parameters are entered correctly. Surveon Network Camera User Manual... - Page 40 Surveon CAM5130 FTP Settings FTP settings are used to configure recording to a remote location via the file transfer protocol. Server Address - The address of the FTP server. • FTP Server Port - The port number of the FTP server; Default 21.
-
Page 41: Motion Detection
To delete a window, select a window in and click Remove. After windows are set, you can activate motion detection by checking the Enable Motion Detection box. Surveon Network Camera User Manual... - Page 42 Surveon CAM5130 Activating and Scheduling Motion Detection Motion detection is activated by checking the Enable Motion Detection box. Activate Motion Detection By: denotes when motion detection will be triggered as an event. Auto – As long as Enable Motion Detection is checked, an event is •...
-
Page 43: Tampering Detection
Options are Very Low, Low, Normal, High, and Very High. Higher sensitivities can detect more tampering attempts, but also increase the chances that the camera will produce a false alarm. Click OK to save or Cancel to abort the changes before you leave the page. Surveon Network Camera User Manual... -
Page 44: Di & Do
Surveon CAM5130 DI & DO Digital Input (DI) and Digital Output (DO) stand are used for event triggering. The camera has 1 DO and 1 DI ports. Settings for these ports can be found under Event Notification> DI & DO. Conditions for DI and DO triggering, as... - Page 45 Low - DO acts as a ground when triggered, and is connected to the • output circuit in the following manner: Off - Closes DO output; no signals will be sent. • Click OK to save or Cancel to abort the changes before you leave the page. Surveon Network Camera User Manual...
-
Page 46: Event Settings
Surveon CAM5130 Event Settings Event settings deal with alarm handling and notification, as well as feature scheduling. These settings can be found under the Event Notification> Event Settings menu. The event handler is rule based. There are lists for both two types of rules: Event List –... - Page 47 If editing a rule that has not been triggered, the rule will not be triggered after until after editing is complete. If the rule is triggered, any changes will not be applied until the current trigger is resolved. Surveon Network Camera User Manual...
- Page 48 Surveon CAM5130 General The following general fields should be filled in: Name - Specifies the name of the Event. • Minimum time interval between triggers - The time frame in which a • subsequent trigger of the same event will be ignored (maximum 23:59:59).
- Page 49 Options are 1, 2, 5, 10, 20 or 30 seconds. For more information please refer to the section on DI & Click OK to save or Cancel to abort the changes before you leave the page. Surveon Network Camera User Manual...
- Page 50 Surveon CAM5130 Adding/Editing a Scheduled Rule The Add and Edit screens contain the following actions: Note: If editing a rule that has not been triggered, the rule will not be triggered after until after editing is complete. If the rule is triggered, any changes will not be applied until the current trigger is resolved.
- Page 51 Options are 1, 2, 5, 10, 20 or 30 seconds. For more information please refer to the section on DI & Click OK to save or Cancel to abort the changes before you leave the page. Surveon Network Camera User Manual...
-
Page 52: System
Surveon CAM5130 System The system settings, which deal with hardware and firmware parameters, logs, and configuration lists, can be found under Settings> System. System Status The camera status can be found under System> System Status. This section displays useful system information including:... -
Page 53: System Log
Clicking Email will send the log out as an email the notification e-mail address specified in Event Server; Clicking Download will begin the browser download process to download the log to the local PC. Surveon Network Camera User Manual... -
Page 54: Firmware Upgrade
In certain cases, improvements to the camera firmware will be made to improve the image quality or enhance the usability of the camera. These upgrades will be made available via Surveon support or our website www.surveon.com. Once you have obtained a new firmware file, firmware upgrades can be performed under System>... -
Page 55: Reset To Factory Default
“Reset” button on the bottom of the camera, press and hold the “Reset” button for 3 seconds. During this time, the LED indicator in front of the camera will blink in red. Surveon Network Camera User Manual... -
Page 56: Export/Import & Reboot
Surveon CAM5130 Export/Import & Reboot In certain situations it may be necessary to restart your network camera (network settings changed, DHCP added, etc). The settings under System> Export/Import & Reboot allow you to restart the camera. This menu also contains options to export configuration details (for backup or replication purposes), as well as import configuration details.
