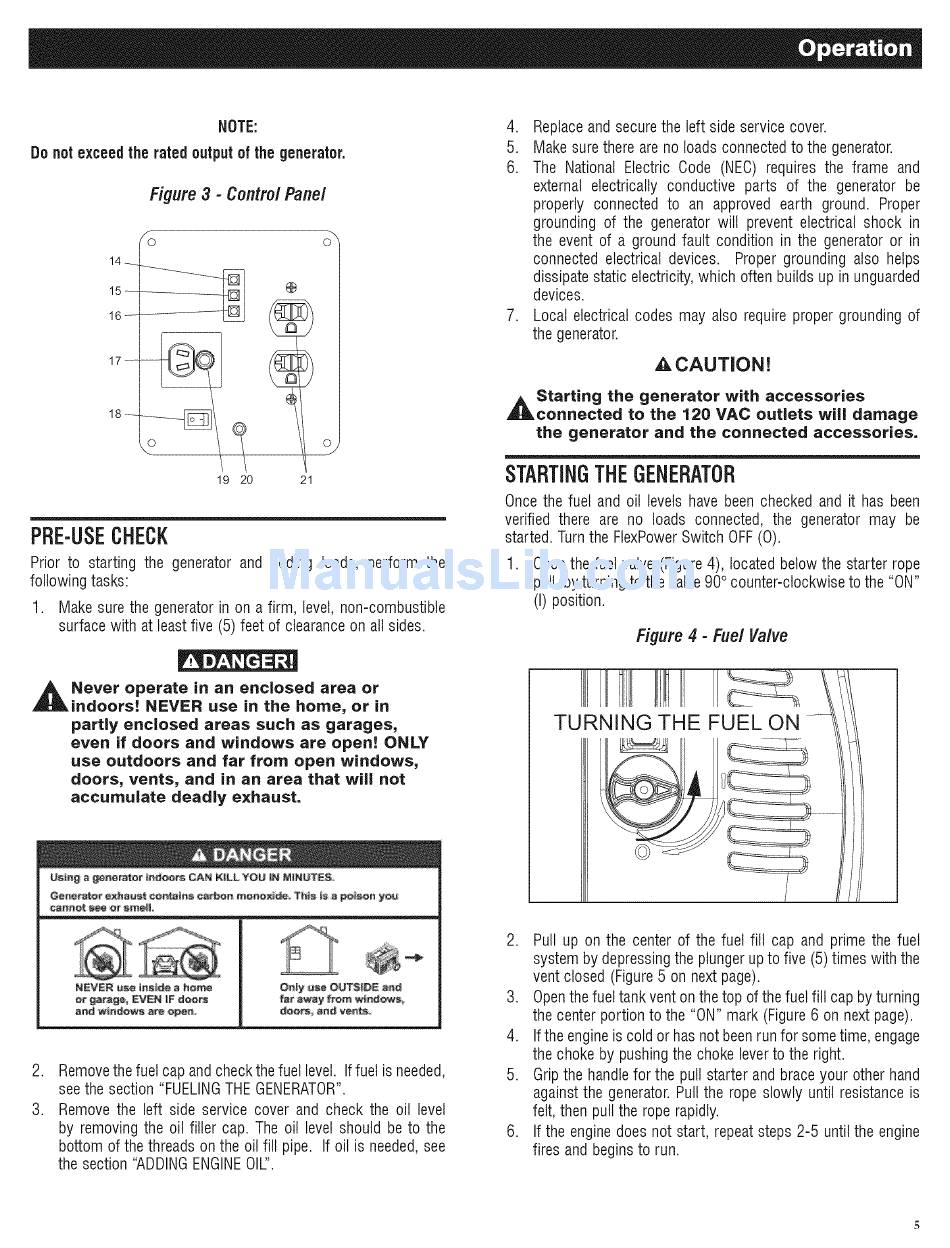

Pre=Use Check; Starting Thegenerator - Generac Power Systems 005792-0 Owner's Manual

NOTE:
Do not exceedthe rated outputof the generator.
Figure3 - ControlPanel
14_
15--
16--
17--
18--
0 0
o
19 20
@
21
PRE-USE C HECK
Prior to starting the generator and adding loads, perform the
following tasks:
1. Make sure the generatorin on a firm, level, non-combustible
surface with at least five (5) feet of clearanceon all sides.
Never operate in an enclosed area or
indoors! NEVER use in the home, or in
partly enclosed areas such as garages,
even if doors and windows are open! ONLY
use outdoors and far from open windows,
doors, vents, and in an area that will not
accumulate deadly exhaust.
4. Replaceand securethe left side service cover.
5. Make sure there are no loads connectedto the generator.
6. The National Electric Code (NEC) requires the frame and
external electrically conductive parts of the generator be
properly connected to an approved earth ground. Proper
grounding of the generator will prevent electrical shock in
the event of a ground fault condition in the generator or in
connected electrical devices. Proper grounding also helps
dissipatestatic electricity, which often builds up in unguarded
devices.
7. Local electrical codes may also require proper grounding of
the generator.
,ACAUTION!
_1 Starting the generator with accessories
connected to the 120 VAC outlets will damage
the generator and the connected accessories.
STARTING THEGENERATOR
Once the fuel and oil levels have been checked and it has been
verified there are no loads connected, the generator may be
started. Turnthe FlexPowerSwitch OFF(0).
1. Openthe fuel valve (Figure4), located below the starter rope
pull, byturning to the valve 90° counter-clockwiseto the "ON"
(I) position.
Figure4 - Fuel Va/ve
.
3.
Removethefuel cap and checkthe fuel level. If fuel is needed,
see the section "FUELING THEGENERATOR".
Remove the left side service cover and check the oil level
by removing the oil filler cap. The oil level should be to the
bottom of the threads on the oil fill pipe. If oil is needed,see
the section "ADDING ENGINE OIL:'.
2. Pull up on the center of the fuel fill cap and prime the fuel
system by depressingthe plungerup to five (5) times with the
vent closed (Figure5 on next page).
3. Openthe fuel tank vent on the top of the fuel fill cap by turning
the center portion to the "ON" mark (Figure6 on next page).
4. If the engineis cold or hasnot beenrun for some time, engage
the choke by pushingthe choke leverto the right.
5. Grip the handlefor the pull starter and brace your other hand
against the generator.Pull the rope slowly until resistance is
felt, then pull the rope rapidly.
6. If the engine does not start, repeatsteps 2-5 until the engine
fires and beginsto run.
