Summary of Contents for Atlona AT-COMP-88M

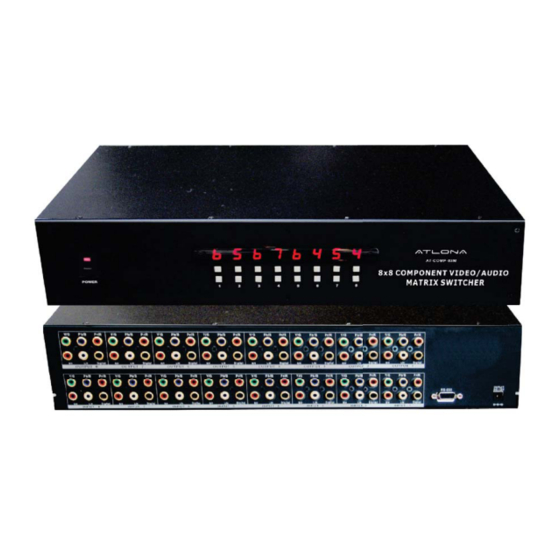

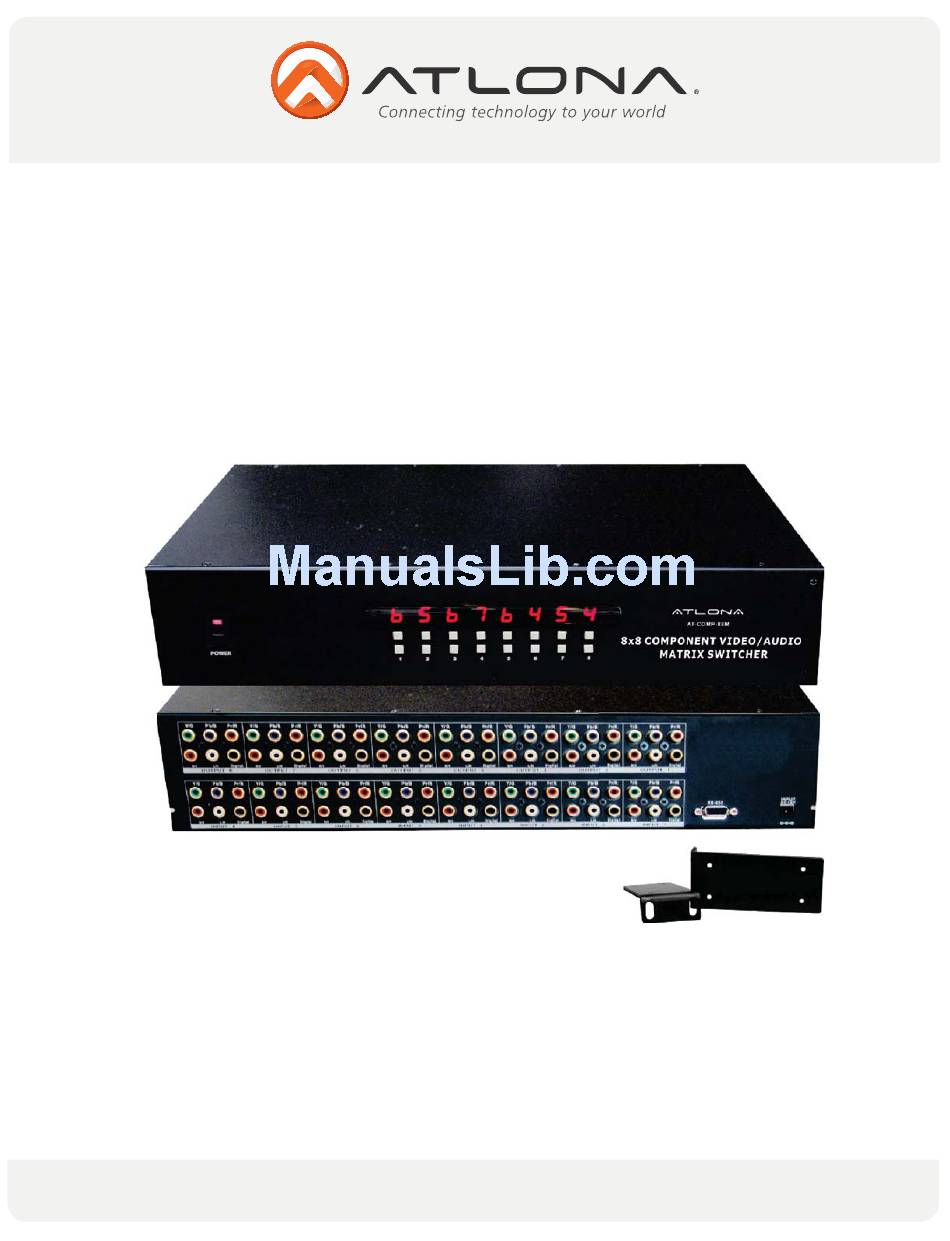

- Page 1 Atlona 8x8 Component Matrix Switcher with Stereo Audio AT-COMP-88M User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
4.1 Front Panel ..........4.2 Rear Panel ..........5. Remote Control ..........3 6. RS-232 ..........4 7. Application ..........5 8. Safety Information ..........6 9. Warranty ..........7 10. Atlona Product Registration ..........8 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION The AT-COMP-88M has 8 individual component inputs with s tereo audio and 8 individual outputs. The matrix switch allows any input or output to be selected . The matrix is ideal for connecting sources such as VCRs, Camcorders, AppleTV, Video Game Consoles, DVDs, Satellite Receivers, and Set Top Boxes to displays such as HDTV, LCDs, Plasma Monitors, Video Projectors. -
Page 4: Panel Descriptions
Panel Descriptions 1. Front Panel AT-COMP-88M 8x8 COMPONENT VID EO /AUD IO MAT RI X SWITCHER switcher is powered ON INPUT LED DISPLAY: Input channel readout matches numbered outputs marked directly below. Input SET BUTTONS: Sets selected source. Front Panel Operation Example Press Select button until desired input channel is displayed, then press Set button to confirm. -
Page 5: Remote Control
Digital Audio (PCM) Via 1x RCA connector switcher inputs 1-8 Digital Audio(PCM) Via 1x RCA connector Note: With 6x RCA female connectors Remote Control 1. Power ON 2. Power OFF HDTV 8:8 HDTV SWITCHER YPbPr OUT Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Rs-232
Save2 Recall[Y] Recall the preset command [Y]. [Y] ranges from 0 to 9 Recall2 Clear[Y] Clear the preset command [Y]. [Y] ranges from 0 to 9 Clear2 Mreset Reset device to manufacture default Mreset Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Application
APPLICATION 8x Component sources to 8x Component Output Matrix Switcher up to 8 DVD’s PC RS232 Control up to 8 HDTV’s HDTV’ Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-COMP-88M. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 10: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure.
