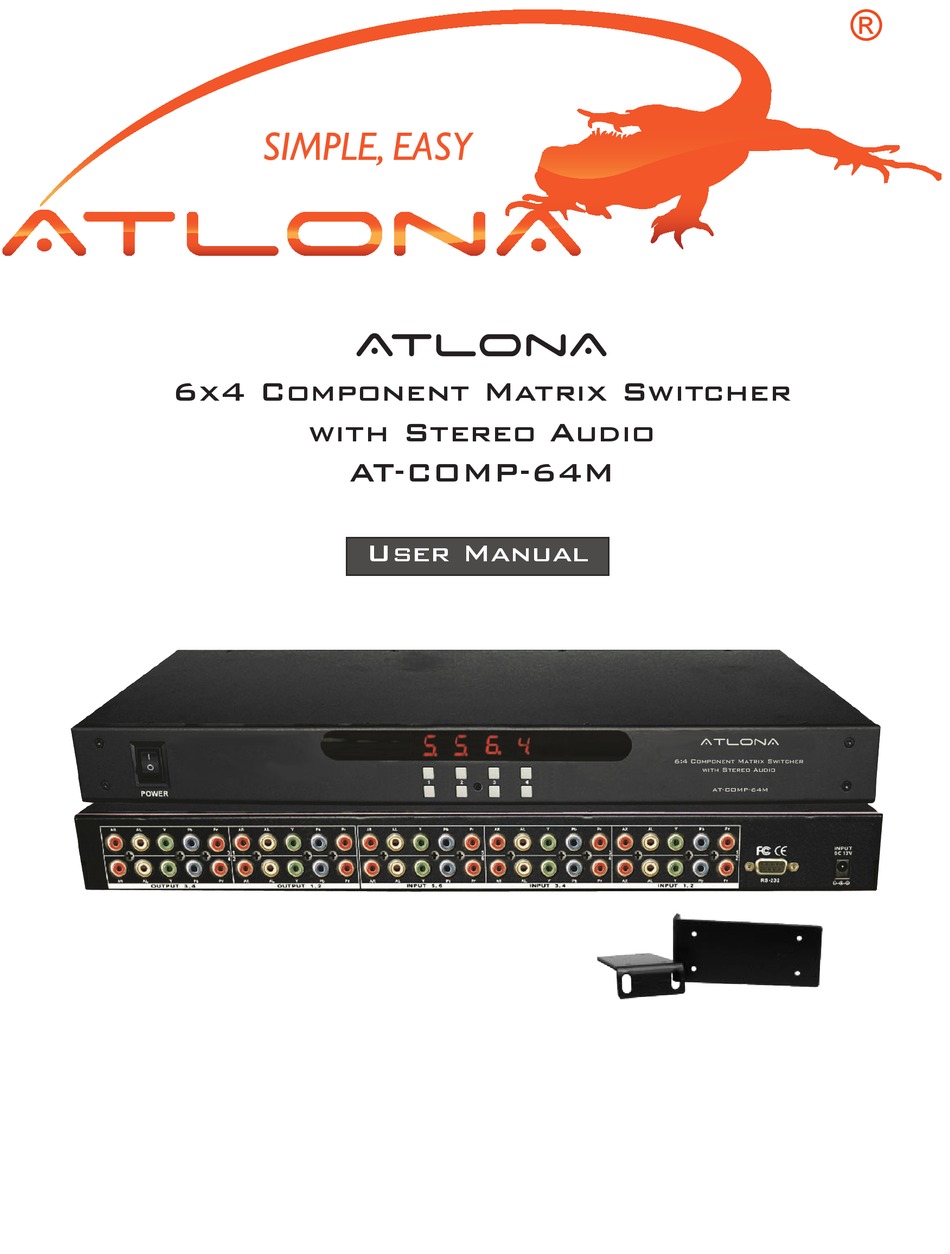

- Page 1 AtlonA 6x4 Component Matrix Switcher with Stereo Audio AT-COMP-64M User Manual...
-
Page 2: Table Of Contents
7.3. Protocol Commands ..........8. RS232 Serial Commands ..........8.1. Power Off Mode ..........8.2. Front Panel Lock ..........8.3. Unit Reset ..........9. Typical Application ..........10. Installation ..........11. Safety Information ..........12. Warranty ..........13. Atlona Product Registration .......... -
Page 3: Introduction

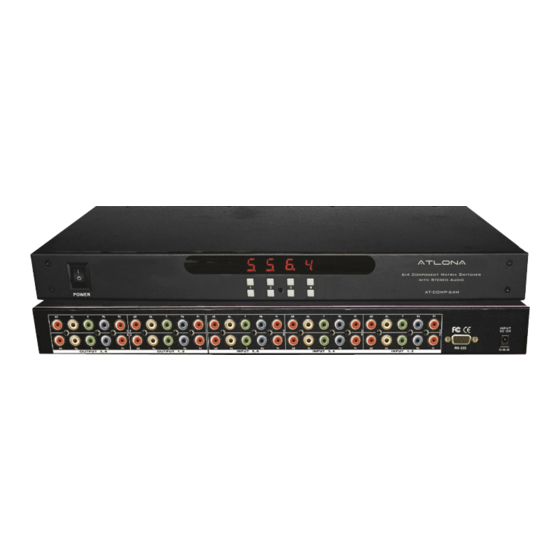

Atlona Technologies’ AT-COMP-64M is one of the most innovative Component Matrix switchers with Stereo Audio on the market. The AT-COMP-64M has 6 individual Component Video (RCA) inputs with Stereo Audio and 4 individual outputs. Because it is a matrix switch, any input can route to any output;... -
Page 4: Specifications
SPECIFICATIONS Type of Switcher 6 inputs to 4 outputs, Component Video/Digital Audio Matrix Switch I/O Signals Component Video (YPBPR) 0.5~1.0Vpp, DDC 5Vpp, Stereo Audio - 2x RCA connector (Red/white) Video Bandwidth 325MHz (-3db), 200mVp-p Video Supported High Resolution formats 480i/p, 720p & 1080i/p Audio Supported Stereo Audio(Audio Right/Audio Left) Low all hostile crosstalk... -
Page 5: Rear Panel
2. Rear Panel 1. DC Power Input. DC power plug-park input connector. Ensure that the plug-park used is of an approved type and is of sufficient current carrying capacity with the correct voltage and connector polarity. 12Volt DC power supply 2A Max. Power Jack: DC Jack - inner OD O 2.1mm (+ ) Outside OD O 5.5mm (GND) -
Page 6: Remote Control
REMOTE CONTROL Before making any connections to the AT-COMP-64M, observe the following: Mains voltage supply must match the label on the supplied plug-Pack (+/- 10%) Power switch is OFF All system grounds (earth) must be connected to a common point. -
Page 7: Rs232 Serial Interface
Not used 2. RS232 Atlona’s AT-COMP-64M can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system. The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit When the unit recognizes a complete command it will perform the requested action - there is no delimiter character required. -
Page 8: Rs232 Serial Commands
RS-232 SERIAL COMMANDS Note: Turning the unit System Power Off over RS232 will distinguish the LED display leaving only the Power Switch LED on. The Video and Audio outputs will also mute. While the unit is turned off by RS232 it will continue to accept and act upon switching commands. -
Page 9: Typical Application
TYPICAL APPLICATION Satellite Receiver DVD Player VCR Player HD Player up to 6 Sources AT-COMP-64M PC RS232 Control up to 4 HDTV’s... -
Page 10: Installation
INSTALLATION CONTROL PORTS : 1. IR REMOTE - IR Remote Controller 2. RS 232 Interface - RS 232 interface system INPUTS 1 - 6 HD SOURCE SIGNALS : COMPONENT VIDEO - Component Video(YPBPR), RCA's AUDIO - Stereo Audio, RCA's OUTPUT 1 - 4 HDTV DISPLAY SIGNALS : COMPONENT VIDEO - Component Video(YPBPR), RCA's AUDIO - Stereo Audio, RCA's... -
Page 11: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 12: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 13: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
