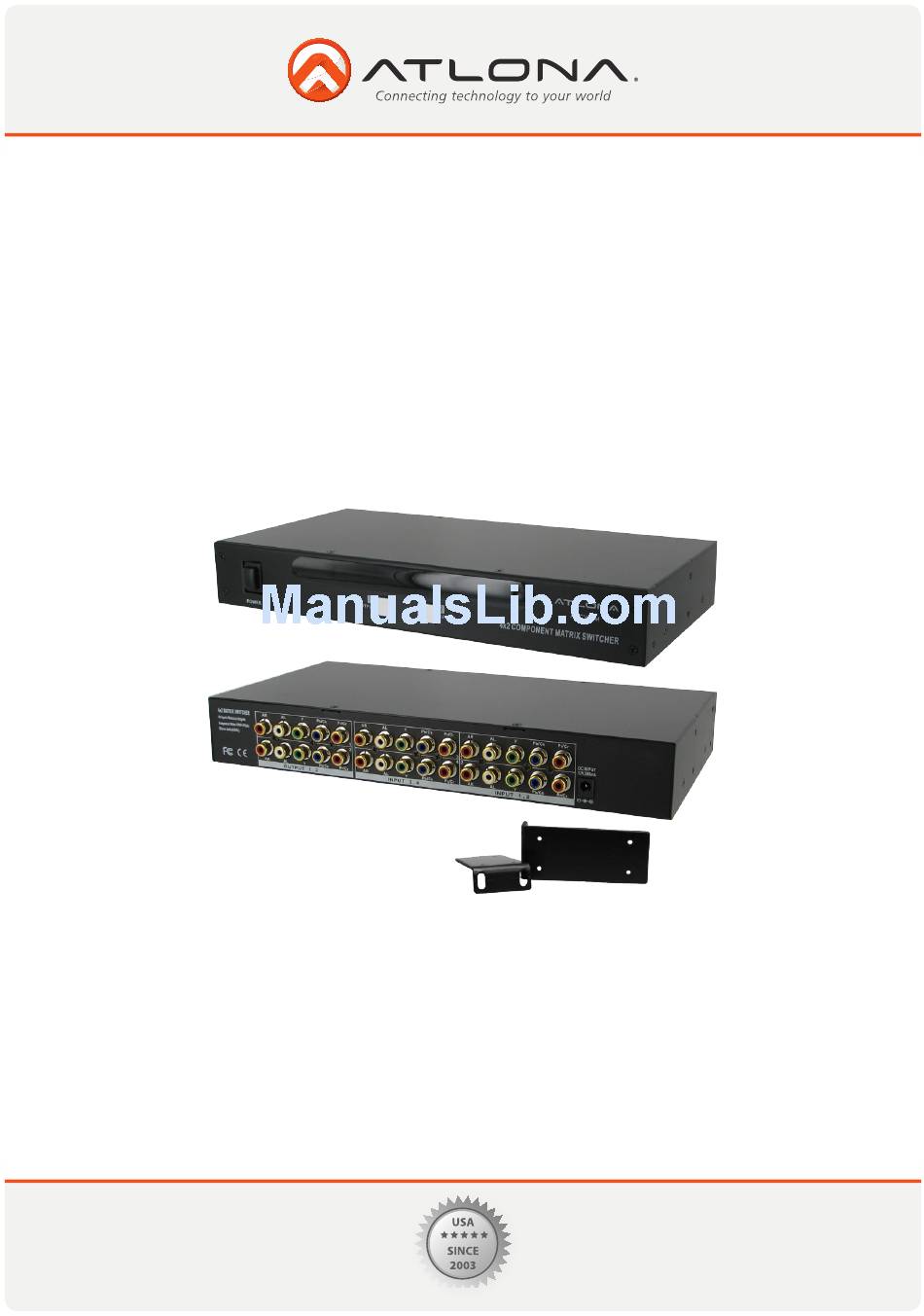

- Page 1 4x2 Component Matrix Switcher with Stereo Audio AT-CV42M User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel Descriptions 5.1. Front Panel 5.2. Rear Panel 6. Remote Control 7. Installation 8. Connection Diagram 9. Safety Information 10. Warranty 11. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Atlona Technologies’ AT-CV42M is one of the most innovative Component Matrix switchers with Stereo Audio on the market. The AT-CV42M has 4 individual Component Video (RCA) inputs with Stereo Audio and 2 indi- vidual outputs. Because it is a matrix switch, any input can rout to any output; and the same input can rout to all outputs or any other combination. -
Page 4: Specifications
3. INPUT SOURCE SELECT . Select between input sources 1 - 4 4. IR SENSOR. The IR sensor receives IR commands from the supplied remote controller. 2. Rear Panel Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... - Page 5 Outputs 1- 24 display port signals : Component Video(YPBPR), 3x RCA Connectors, Stereo Audio(AR/AL), 2x RCA Connectors Component Video (YPBPR) Via 3x RCAs Stereo Audio(AR/AL) Via 2x RCA connectors Note: With 5x RCA female connectors. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 6: Remote Control
COMPONENT VIDEO : Component Video(YPBPR) with RCA AUDIO : Stereo Audio (AR/AL), with RCA OUTPUT 1 – 2 HDTV DISPLAY SIGNALS : COMPONENT VIDEO : Component Video(YPBPR) with RCA AUDIO : Stereo Audio (AR/AL), with RCA Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Connection Diagram
CONNECTION DIAGRAM Satellite Receiver DVD Player HD Player VCR Player AT-CV42M HDTV 2 HDTV 1 Audio AMP Audio AMP Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-CV42M. Opening the product will void the warranty. -
Page 9: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 10: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
