Summary of Contents for Atlona AT-COMP-42M
- Page 1 4 x 2 Component Matrix Switcher with Digital/Analog Audio AT-COMP-42M User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
AT-COMP-42M ATLONA PRODUCT REGISTRATION Atlona 4x2 Component Matrix Switcher with Digital/Analog Audio TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. Package Contents ..........4. Panel Descriptions ..........4.1 Front Panel ..........4.2 Rear Panel ..........5. Connection and Installation .......... -
Page 3: Introduction
Atlona 4x2 Component Matrix Switcher with Digital/Analog Audio INTRODUCTION Atlona Technologies’ AT-COMP-42M is one of the most innovative Component Video Matrix switcher with Digital/Analog Audio on the market. The AT-COMP-42M has 4 Component /Optical/Digital Coax and Stereo Audio inputs and 2 outputs. -
Page 4: Panel Descriptions

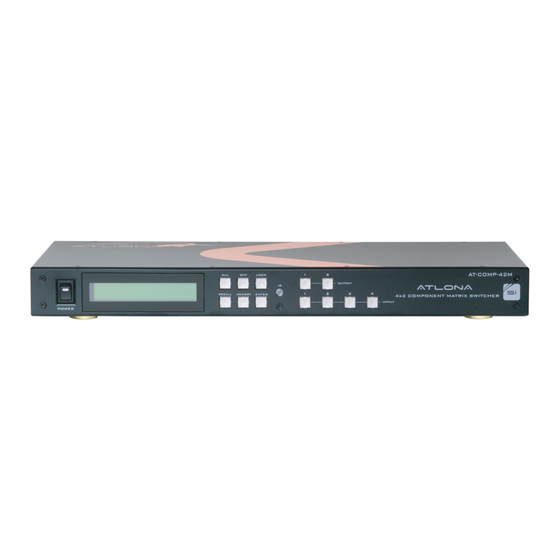

AT-COMP-42M ATLONA PRODUCT REGISTRATION Atlona 4x2 Component Matrix Switcher with Digital/Analog Audio PANEL DESCRIPTIONS Front Panel 1. Power switch: Press top of power switch to turn on. LED will illuminate red to indicate the switcher is receiving power. Press bottom of power switch to turn powe 2. -
Page 5: Connection And Installation
AT-COMP-42M ATLONA PRODUCT REGISTRATION Atlona 4x2 Component Matrix Switcher with Digital/Analog Audio CONNECTION and INSTALLATION DVD Player Satellite Receiver tellite Receiver HD Player VCR Player AT-COMP-42M PC RS232 Control Audio AMP Audio AM Audio AMP Audio AM... -
Page 6: Ir Codes
AT-COMP-42M ATLONA PRODUCT REGISTRATION Atlona 4x2 Component Matrix Switcher with Digital/Analog Audio SPECIFICATIONS Input / Output Digital : Digital Audio(S/PDIF), Composite Video Video Bandwidth HDTV Scan Rate 480I, 480P, 576P, 1080I, 720P, 1080P Optical Digital (S/PDIF) Stereo Audio (AR/AL) Channel switch time... -
Page 7: Rs232 Control Commands
AT-COMP-42M ATLONA PRODUCT REGISTRATION Atlona 4x2 Component Matrix Switcher with Digital/Analog Audio RS232 - Cable Pin Lines Baud Rate : 9600 bps, Data Bit :8 bits, Parity : None, Stop Bit :1 bit Each command is terminated with a •... -
Page 8: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-COMP-42M. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 10: Atlona Product Registration
Digital/Analog Audio Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure.
