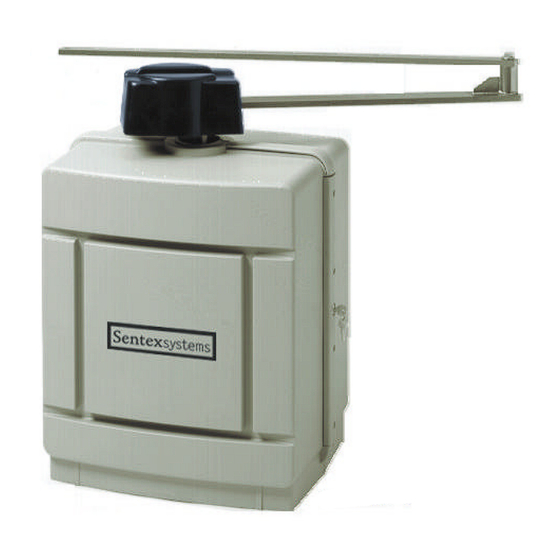

Sentex SW2200 Installation Instructions Manual

Swing gate operator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation Instructions
Swing Gate Operator
Model SW2200
Doc 01-G0181
Rev A

Advertisement

Table of Contents
loading

Related Manuals for Sentex SW2200

Summary of Contents for Sentex SW2200

  • Page 1 Installation Instructions Swing Gate Operator Model SW2200 Doc 01-G0181 Rev A...

  • Page 2: Table Of Contents

    Contents Contents Safety Information______________________________________________ 3 Definitions _____________________________________________________________ 3 Important Safety Information _______________________________________________ 3 Classifications___________________________________________________________ 5 Specifications __________________________________________________ 6 Mechanical _____________________________________________________________ 6 Electrical _______________________________________________________________ 6 Site Preparation _______________________________________________ 10 Pad Mounting __________________________________________________________ 10 Installation ___________________________________________________ 11 Mechanical ____________________________________________________________ 11 Electrical ______________________________________________________________ 13 Basic Setup and Device Connections ______________________________ 14 Setup...

  • Page 3: Safety Information

    Safety Information Safety Information Definitions ENTRAPMENT CAUTION The condition when an object is Indicates a potentially hazardous situation caught or held in a position that which, if not avoided, may result in minor increases the risk or moderate injury. It may also be used to of injury.
  • Page 4 Safety Information INSTALL THE GATE OPERATOR ONLY IF . . . The operator is appropriate for the construction of the gate and the usage class of the gate. All openings are guarded or screened to prevent access by arms or legs through openings anywhere in the gate.

  • Page 5: Classifications

    Safety Information Classifications CLASS I Residential Vehicular Gate Operator A vehicular gate operator (or system) intended for use in a home or one-to-four single family dwelling, or a garage or parking area associated therewith. Required additional equipment—Type B1 non-contact sensor. CLASS II Commercial/General Access Vehicular Gate Operator A vehicular gate operator (or system) intended for use in a commercial location or...

  • Page 6: Specifications

    Specifications Specifications Mechanical GENERAL SPECIFICATIONS Overall Size Weight 19”L x 23”W x 31”H 190 Pounds Table 1 GENERAL CONSTRUCTION GATE CAPACITY Electroplated, welded steel frame with This operator is designed for maximum a dual gearbox reduction of 600:1 and size gates. In general, the operator may an ultimate strength of 2,000 foot work with any gate below 1000 pounds pound.
  • Page 7 Specifications Figure 1 PROGRAMMING Programming is accomplished with a 5 button, 2 LED membrane switch located on top of the control box. Programming instructions are presented on a 2 row, 16 character LCD screen (see Figure 2). Sentexsystems 01-16169F1 Figure 2 DEVICE CONNECTIONS Connections are made to the lower half (exposed half) of the front panel PCB.
  • Page 8 Specifications 01-20211F1 Figure 3 MASTER/SLAVE CONNECTIONS (OPTION) Sentex Systems recommends18-20 gauge wire for the minimal wattage required to run a pair in master/slave setups. MASTER SLAVE STOP RELAY CLOSE RELAY OPEN RELAY GREEN WHITE BLACK 01-20211F2 Figure 4 Doc 01-G0181...
  • Page 9 Specifications FULL BATTERY BACKUP (OPTION) 24 hours continuous operation with normal use of accessory! This is the only operator offered with transparent battery backup. Doc 01-G0181 Rev A...

  • Page 10: Site Preparation

    Site Preparation Site Preparation Pad Mounting For pad mounting instructions, perform the steps below and refer to the Figures below. Excavate to the depth required by AVAILABLE CABLE ENTRY ZONE local code or below frost line. (Keep All Conduits Within Shaded Area) COVER Situate pad according to Figure 7.

  • Page 11: Installation

    Installation Installation Mechanical Only qualified contractors experienced with mechanical installations and the hazards associated with them should perform the following instructions. Ensure all power is disconnected. Prepare the site (see Site Preparation, p. 10). Pull and label wires for power and control. Bolt operator in place (see Figure 8).
  • Page 12 Installation Adjust length of crank arm (LC) to 25-1/2” (see Figure 11) and length of extension arm (LE) to 44” (see Figure 12). OPERATOR CRANKSHAFT CENTERLINE 44” STANDARD 25-1/2” STANDARD 01-G0181F12 01-G0181F11 Figure 12 Figure 11 Modify the lengths and the gate bracket position so the crank and extension arms lineup when the gate is closed (see Figure 13).

  • Page 13: Electrical

    Installation Electrical Turn off line power (at the circuit breaker/panel) and operator (operator switch to off). Attach power wiring (L1, L2, and ground). Apply line power (115VAC). Check to see if the pilot light is on and the operator power switch is still off. Check if operator does not run, beep or function, and LED's are off.

  • Page 14: Basic Setup And Device Connections

    Basic Setup and Device Connections Basic Setup and Device Connections Setup WARNING Use only qualified electricians. Serious injury or death can occur from electrical shock or entanglement in operator. NOTE: Follow manufacturer’s instructions for safety devices such as edges and photo eyes. Install the stop button (normally closed) UNLOCKED on J7 terminals.
  • Page 15 If during testing, the gate stops or ENGAGE reverses due to entrapment, adjust GEARS the entrapment settings (see the PULL TO SLMAX/SW2200 Programming DISENGAGE Manual). GEARS 10 Using the {+/-} buttons, run gate to the open position. stop when passpoint LED flashes (see Figure 18).

  • Page 16: Device Connections

    Basic Setup and Device Connections Device Connections All electrical connections are made with a euro-connector for quick and easy maintenance of the electrical box. You may make 95% of all accessory connections with 18-24 gauge wire. Accessory power should be 16-18 gauge. NOTE: Connect line power to the electrical box according to the instructions on page 6.

  • Page 17: Operator Programming Menu (Lcd Screen)

    (see Error! Reference source not found.). Programming instructions appear on a 2-row, 16-character LCD screen. NOTE: This chapter serves as an overview of the SW2200’s programming functions and features. For more detailed instructions, refer to the SLMAX/SW2200 Programming Manual.
  • Page 18 Running Header ELECTRIC LOCK DELAY All gates installed with a maglock (connected to the JP6 connector/input) may have the electric lock delay function programmed into the system. This delays the gate from opening for a programmed number of seconds (1-10) when the operator is prompted to open.

  • Page 19: Troubleshooting

    Troubleshooting Troubleshooting Diagnostic Screen The Diagnostic Screen is real-time screen displaying critical information for troubleshooting the operator. Refer to Figure 21. ENTRAPMENT MODE: RELATIVE POSITION T = Normal torque measurement. This shows the position using the E = Indicates overtorque entrapment passpoint as a zero reference.

  • Page 20: Entrapment Adjustment

    Running Header Entrapment Adjustment Changes sensitivity of the inherent entrapment system from off, 0-99. Increase value until gate runs smoothly without false entrapment. 0 is the most sensitive and 99 is the least sensitive. Set a nominal entrapment level of 25. No Position or Speed Verify with the Troubleshooting Screen (see page 19).
