Summary of Contents for Atlona AT-LINE-PRO5-GEN2
-

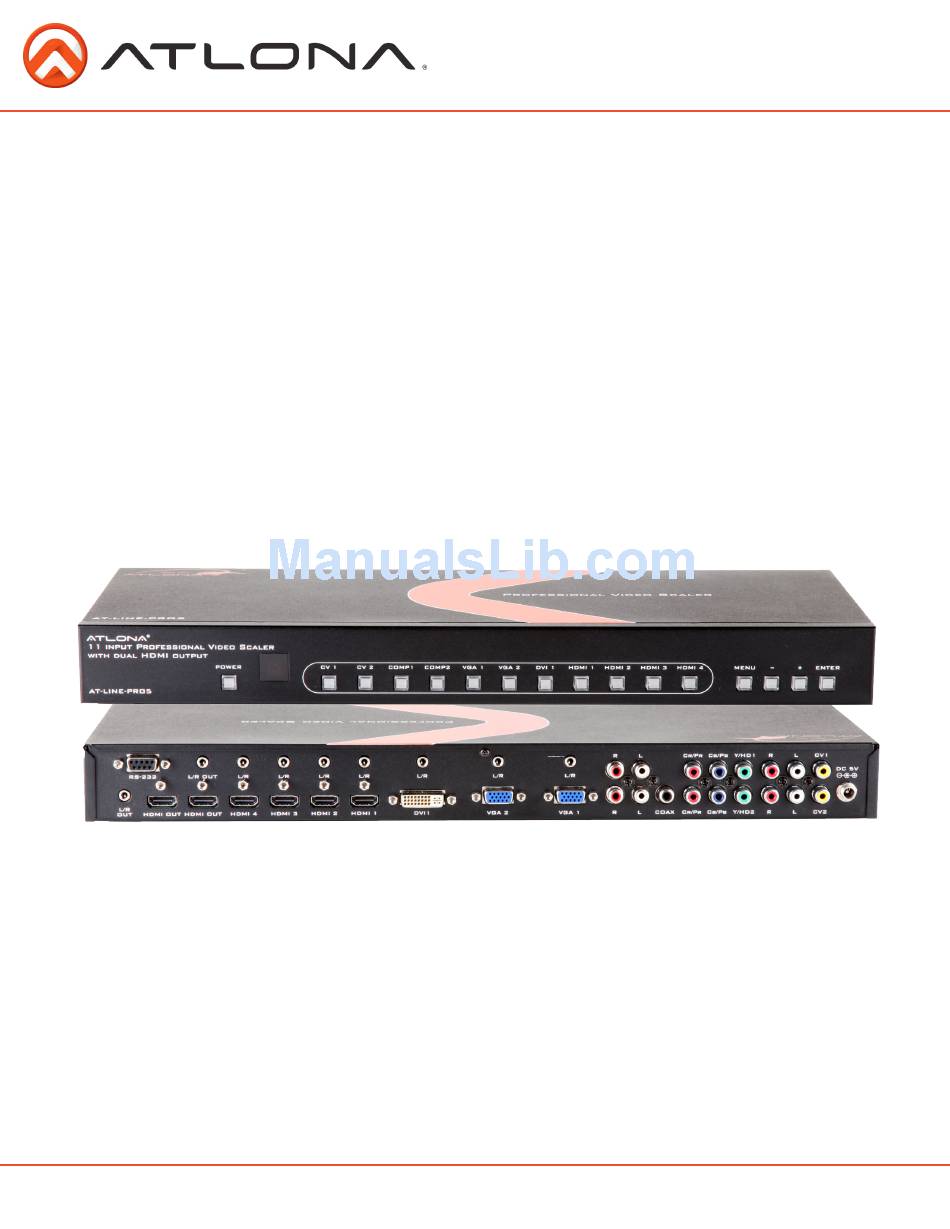

Page 1: User Manual
Atlona 11 Input Scaler and Switcher w/Dual Mirrored HDMI Outputs AT-LINE-PRO5-GEN2 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
.................... 5 7. On Screen Display Options .................... 8 8. Connection and Installation .................... 7 9. RS-232 .................... 7-11 10. Safety Information .................... 12 11. Warranty .................... 13 12. Atlona Product Registration .................... 14 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

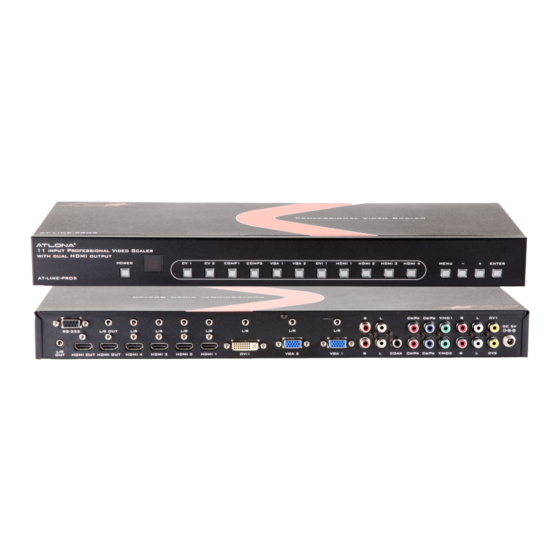

Introduction The Atlona 11 Input Scaler and Switcher w/Dual Mirrored HDMI Outputs allows 4 x HDMI or DVI (with use of HDMI to DVI adapter i.e AT14050), 1 x DVI, 3 x VGA, 2 x Component, 2 x Composite video inputs to be scaled to a dual HDMI outputs. -
Page 4: Specifications
7. HDMI 1 through 4: Press the HDMI number to choose input 1, 2, 3 or 4, the LED will illuminate red 8. MENU: Press this button to bring up the On Screen Display. 9. -/+: Press -/+ buttons to make a selection. 10. ENTER: Press this button to confirm the selection. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
On Screen Display Menu to select them. 7. MENU: Press to bring up On Screen Display. 8. Auto Adjust: Press to optimize the position of the picture (picture centering) on the screen. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: On Screen Display Menu
OFF / 40MS / 110MS / 150 MS SOUND ON / MUTE EXIT Back to the 1st Tier INFORMATION SOURCE (Input interface) INPUT (Input Resolution) OUTPUT (Output Resolution) VERSION (Firmware Version) EXIT Close the OSD Menu Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Connection And Installation
Not used Transmit Receive ---- Not used Ground ---- Not used ---- Not used 9 8 7 6 ---- Not used ---- Not used Baud Rate: 19200bps Data Bit: 8bits Parity: None Stop Bit: 1bit Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: On Screen Display Options
> OUTPUT WXGA Set the output EDID to WXGA (1280x800@60) S OUTPUT 17 > OUTPUT WSXGA Set the output EDID to WSXGA (1680x1050@60) S OUTPUT 18 > OUTPUT WUXGA Set the output EDID to WUXGA (1920X1200@60) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 9 > OSDBACKGROUND 0~8 Adjust the OSD Background between 0 and 8 S AAUD 0 > AAUD 0 Mute audio S AAUD X > AAUD 1 ~ 41 Adjust volume level, replace X with 1 through 41 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 10 > OSDTIMEOUT 0~100 Displays OSD TIMEOUT value R OSDBACKGROUND > OSDBACKGROUND 0~8 Displays OSD BACKGROUND status R AUDIOMUTE > AUDIOMUTE OFF~ON Displays AUDIO MUTE status R AUDIODELAY > AUDIODELAY OFF~150ms Displays AUDIO DELAY status Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 Remote control key LEFT K RIGHT > RIGHT Remote control key RIGHT K EXIT > EXIT Remote control key EXIT K AUTO > AUTO Remote control key AUTO K RESET > RESET Remote control key RESET Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 12: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-LINE-PRO5-GEN2. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 13: Warranty
Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 14: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
