EUROCOM Sky X4 User Manual page 222

Modules

USIM Card Orienta-
tion
Note that the USIM
card's readable
(with the gold-colored
contacts) should face
upwards as illustrated.
6

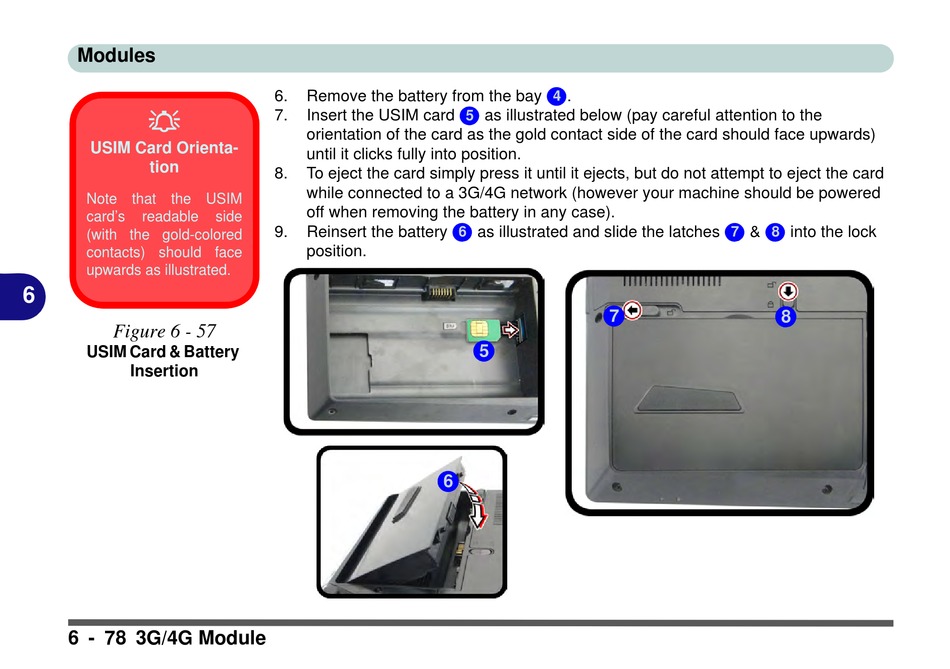

Figure 6 - 57
USIM Card & Battery
Insertion
6 - 78 3G/4G Module
6. Remove the battery from the bay
7. Insert the USIM card
orientation of the card as the gold contact side of the card should face upwards)
until it clicks fully into position.
8. To eject the card simply press it until it ejects, but do not attempt to eject the card
while connected to a 3G/4G network (however your machine should be powered
off when removing the battery in any case).
side
9. Reinsert the battery
position.
.
4
as illustrated below (pay careful attention to the
5
as illustrated and slide the latches
6
7
5
6
& into the lock
7 8
8
