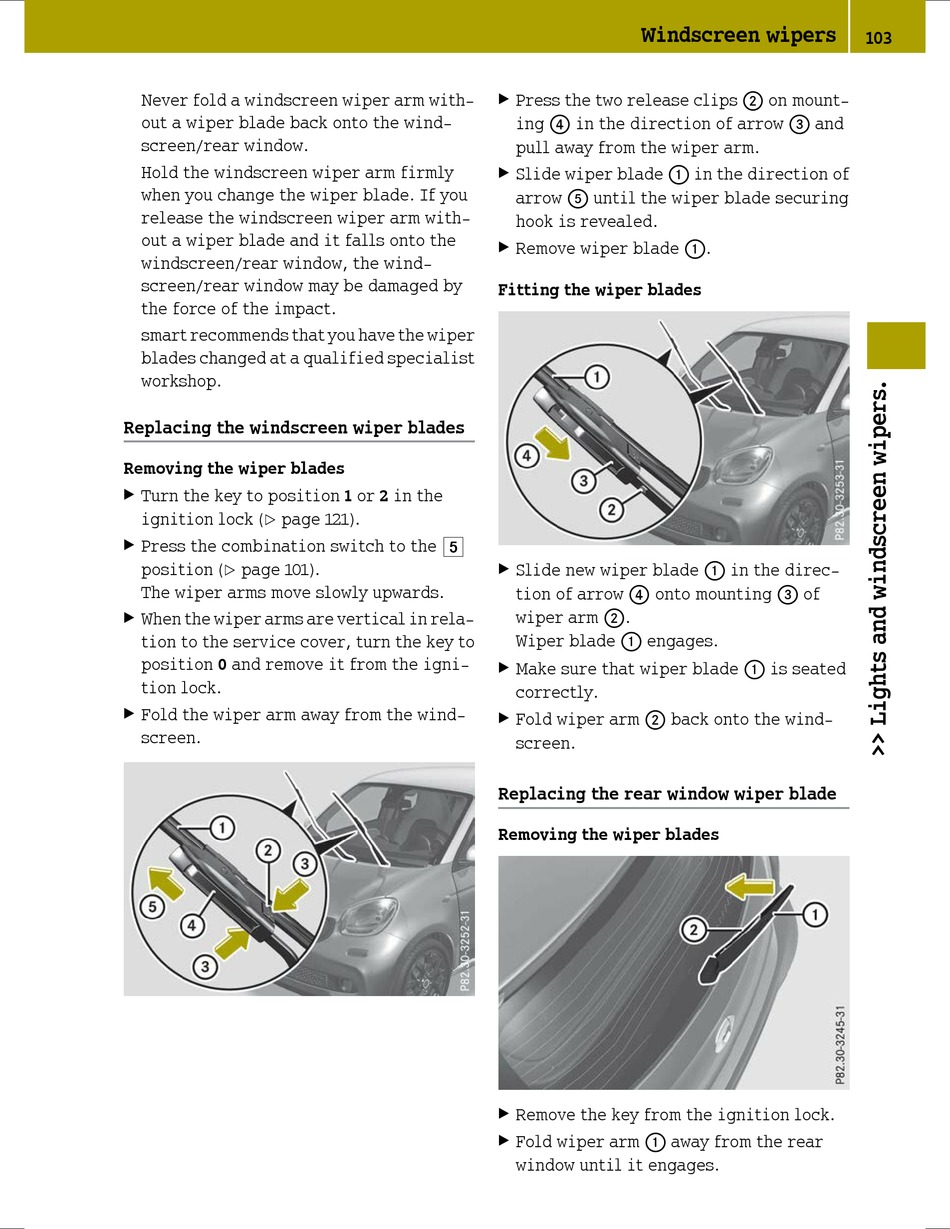

Windscreen Wipers - SMART forfour Owner's Manual

Never fold a windscreen wiper arm with-
out a wiper blade back onto the wind-
screen/rear window.
Hold the windscreen wiper arm firmly
when you change the wiper blade. If you
release the windscreen wiper arm with-
out a wiper blade and it falls onto the
windscreen/rear window, the wind-
screen/rear window may be damaged by
the force of the impact.
smart recommends that you have the wiper
blades changed at a qualified specialist
workshop.
Replacing the windscreen wiper blades
Removing the wiper blades
X
Turn the key to position 1 or 2 in the
Y
ignition lock ( page 121).
X
Press the combination switch to the 5
Y
position ( page 101).
The wiper arms move slowly upwards.
X
When the wiper arms are vertical in rela-
tion to the service cover, turn the key to
position 0 and remove it from the igni-
tion lock.
X
Fold the wiper arm away from the wind-
screen.

Windscreen wipers

X
Press the two release clips ; on mount-
ing ? in the direction of arrow = and
pull away from the wiper arm.
X
Slide wiper blade : in the direction of
arrow A until the wiper blade securing
hook is revealed.
X
Remove wiper blade :.
Fitting the wiper blades
X
Slide new wiper blade : in the direc-
tion of arrow ? onto mounting = of
wiper arm ;.
Wiper blade : engages.
X
Make sure that wiper blade : is seated
correctly.
X
Fold wiper arm ; back onto the wind-
screen.
Replacing the rear window wiper blade
Removing the wiper blades
X
Remove the key from the ignition lock.
X
Fold wiper arm : away from the rear
window until it engages.
103
Z
