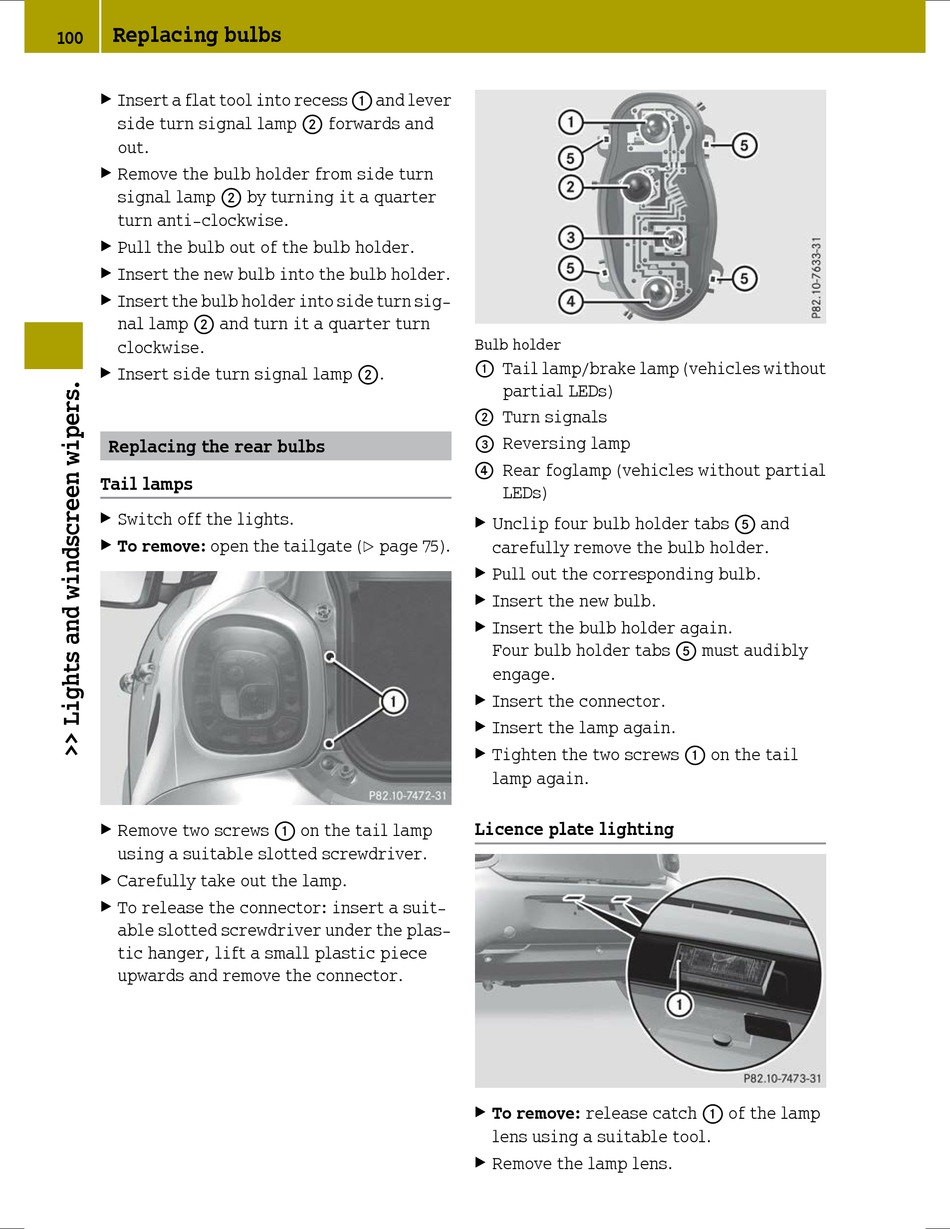

Replacing bulbs
100
X
Insert a flat tool into recess : and lever
side turn signal lamp ; forwards and
out.
X
Remove the bulb holder from side turn
signal lamp ; by turning it a quarter
turn anti-clockwise.
X
Pull the bulb out of the bulb holder.
X
Insert the new bulb into the bulb holder.
X
Insert the bulb holder into side turn sig-
nal lamp ; and turn it a quarter turn
clockwise.
X
Insert side turn signal lamp ;.
Replacing the rear bulbs
Tail lamps
X
Switch off the lights.
X
To remove: open the tailgate (
X
Remove two screws : on the tail lamp
using a suitable slotted screwdriver.
X
Carefully take out the lamp.
X
To release the connector: insert a suit-
able slotted screwdriver under the plas-
tic hanger, lift a small plastic piece
upwards and remove the connector.
Bulb holder
Tail lamp/brake lamp (vehicles without
:
partial LEDs)
Turn signals
;
Reversing lamp
=
Rear foglamp (vehicles without partial
?
LEDs)
X
Unclip four bulb holder tabs A and
Y
page 75).
carefully remove the bulb holder.
X
Pull out the corresponding bulb.
X
Insert the new bulb.
X
Insert the bulb holder again.
Four bulb holder tabs A must audibly
engage.
X
Insert the connector.
X
Insert the lamp again.
X
Tighten the two screws : on the tail
lamp again.
Licence plate lighting
X
To remove: release catch : of the lamp
lens using a suitable tool.
X
Remove the lamp lens.
