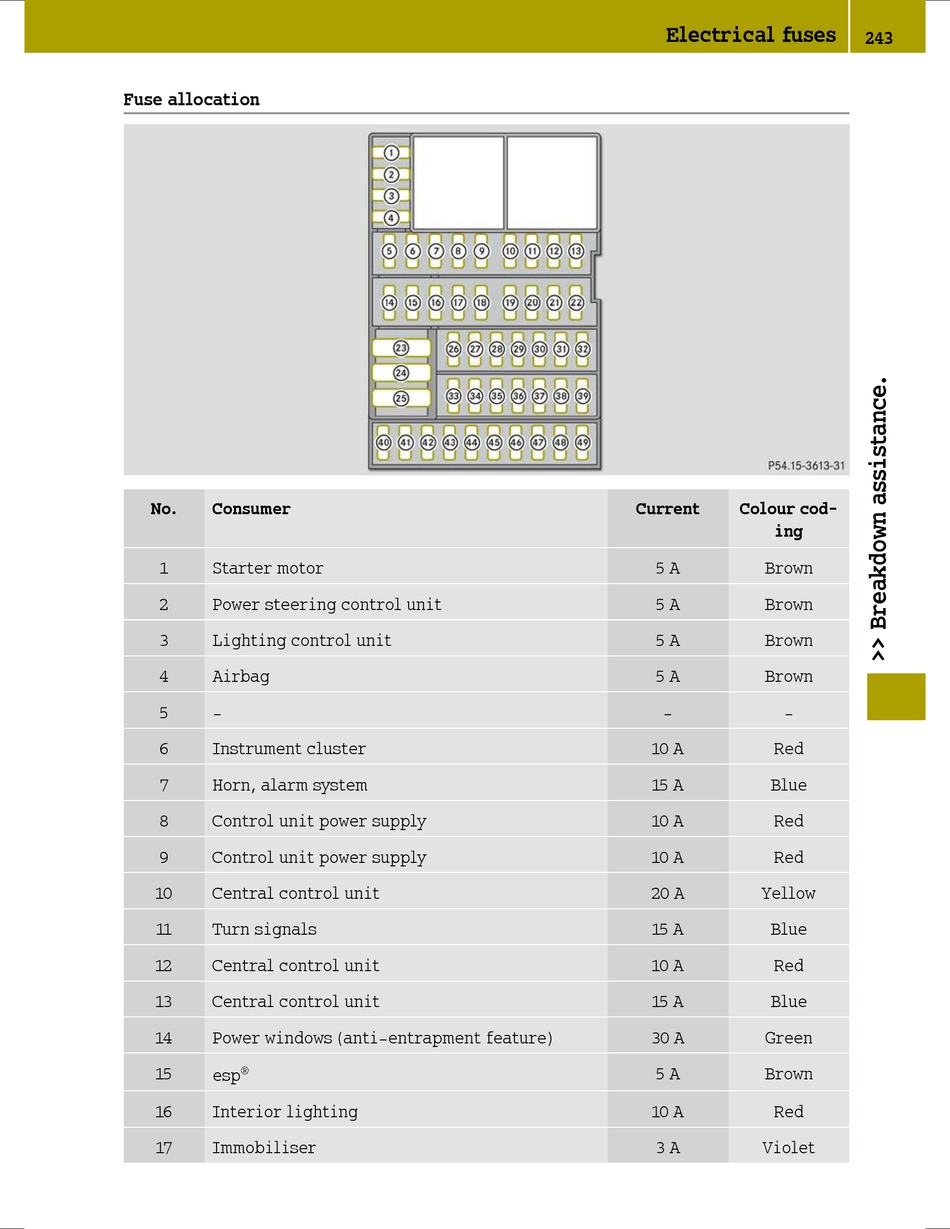

Fuse allocation
No. Consumer
1 Starter motor
2 Power steering control unit
3 Lighting control unit
4 Airbag
5 ‑
6 Instrument cluster
7 Horn, alarm system
8 Control unit power supply
9 Control unit power supply
10 Central control unit
11 Turn signals
12 Central control unit
13 Central control unit
14 Power windows (anti-entrapment feature)
15 ®
esp
16 Interior lighting
17 Immobiliser
Electrical fuses
Current Colour cod-
ing
5 A Brown
5 A Brown
5 A Brown
5 A Brown
‑ ‑
10 A Red
15 A Blue
10 A Red
10 A Red
20 A Yellow
15 A Blue
10 A Red
15 A Blue
30 A Green
5 A Brown
10 A Red
3 A Violet
