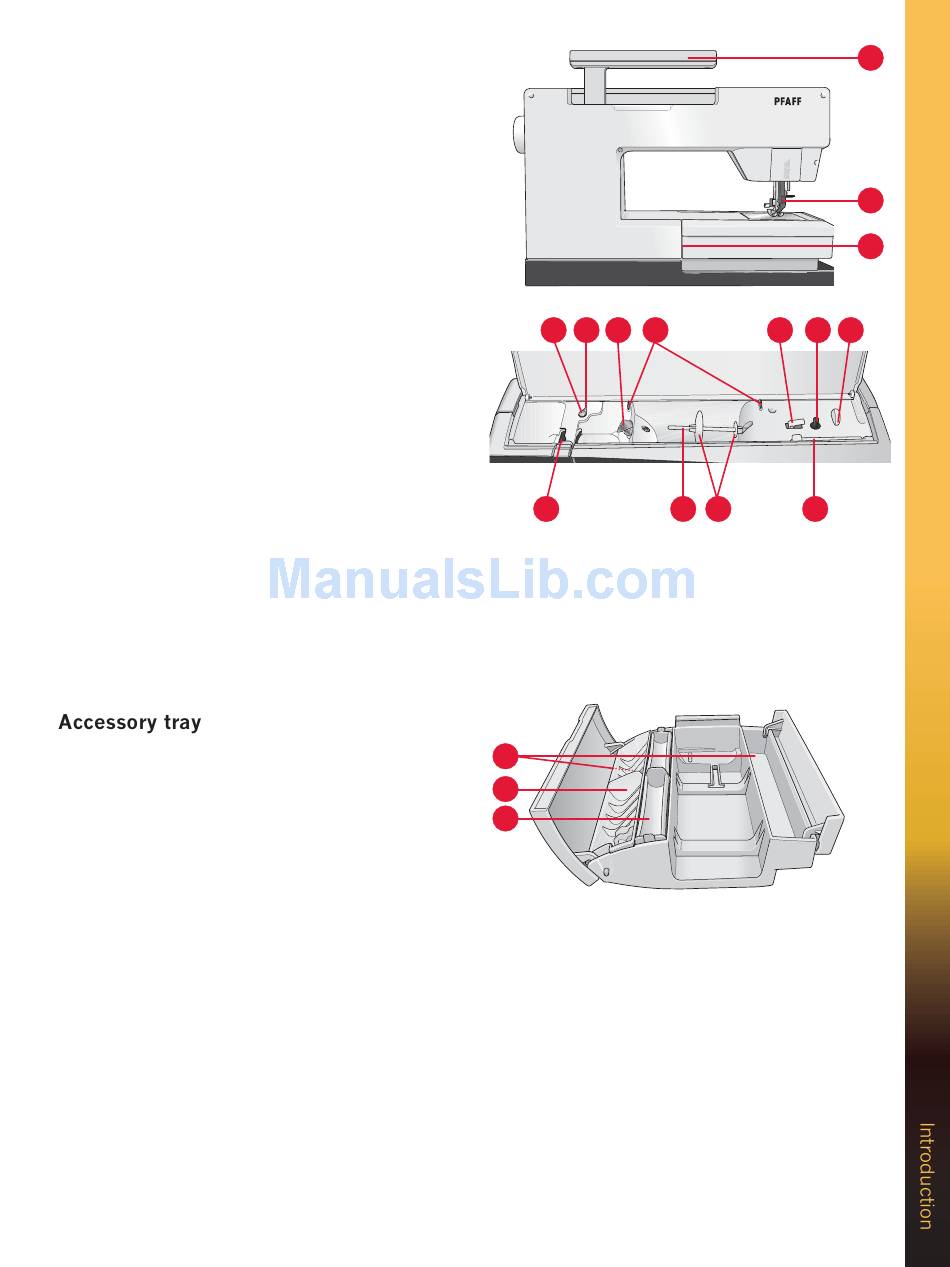

Rear side

32. Handle
33. IDT™ system
34. Embroidery unit connection socket
Top parts
35. Thread guide for needle thread and for bobbin
winding
36. Bobbin winder thread guide and pre-tension
device
37. Thread guide
38. Bobbin thread guides
39. Bobbin winder lever
40. Bobbin spindle
41. Bobbin thread cutter
42. Auxiliary spool pin
43. Spool caps
44. Spool pin
45. Take-up lever
The accessory tray features special compartments
for presser feet and bobbins, plus space for needles
and other accessories. Store the accessories in the
tray so they are easily accessible.
46. Space for accessories
47. Removable tray for presser feet
48. Removable bobbin holder
35 36 37 38
45 44
46
47
48
32
33
34
39 40 41
43 42
1:9
