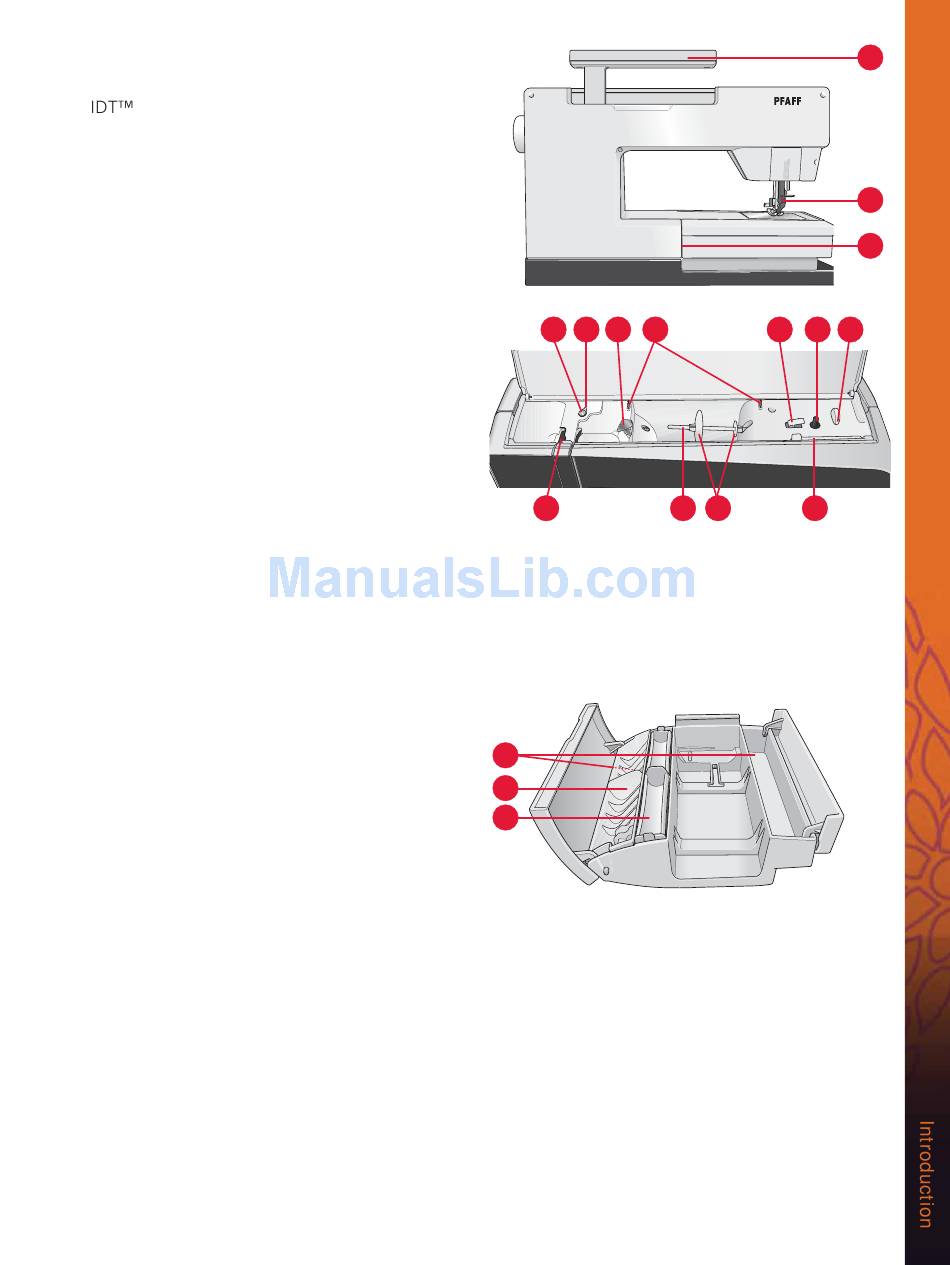

Rear side

32. Handle
33. system
34. Embroidery unit connection socket

Top parts

35. Pre-tension device for threading
and bobbin winding
36. Bobbin winder thread guide
37. Thread guide
38. Bobbin thread guides
39. Bobbin winder lever
40. Bobbin spindle
41. Bobbin thread cutter
42. Auxiliary spool pin
43. Spool caps
44. Spool pin
45. Take-up lever

Accessory tray

The accessory tray features special compartments
for presser feet and bobbins, plus space for needles
and other accessories. Store the accessories in the
tray so they are easily accessible.
46. Space for accessories
47. Removable tray for presser feet
48. Removable bobbin holder
