Indoor Dome IP 720p
4 306 32

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 306 32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND 4 306 32

Summary of Contents for LEGRAND 4 306 32

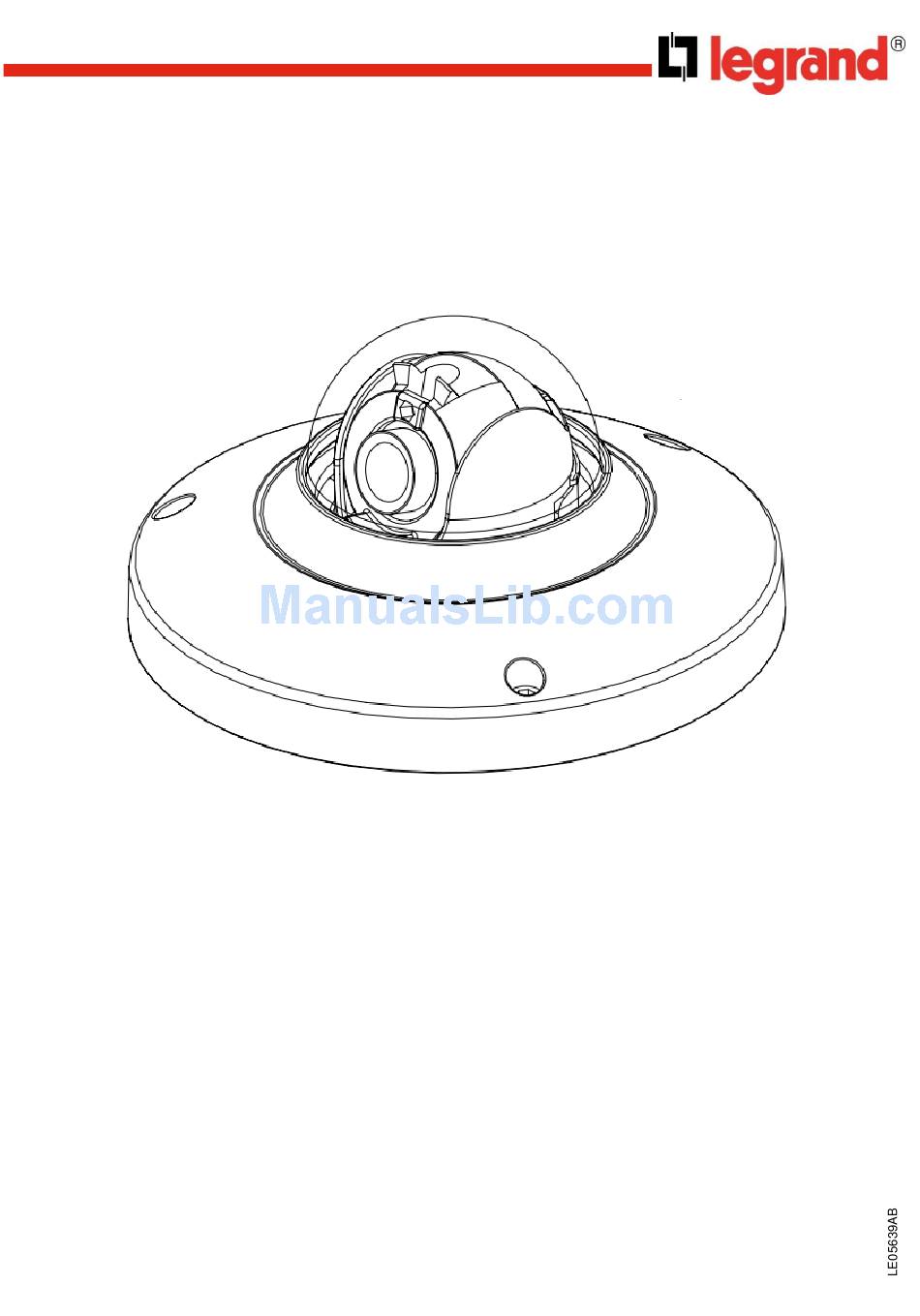

  • Page 1: User Manual

    Indoor Dome IP 720p 4 306 32 USER MANUAL...

  • Page 2: Table Of Contents

    Contents General introduction ........................3 Accessories ............................3 Specifications ........................... 4 Default network configuration ......................5 Structure ............................6 Dimensions ............................6 System ............................... 6 Installation ............................ 7 Connection to the camera and opening the Web application ..........8 IE configuration options: iE configuration tools ................8 4.1.1 Connect with the Config Tool ..........................

  • Page 3: General Introduction

    1 General introduction Accessories Accessory name: Quantity IP Camera Bag for accessories (screws and assembly diagram) Quick start guide...

  • Page 4: Specifications

    1.2 Specifications IP Camera Parameters Processor TI Davinci Operating system LINUX incorporated CMOS 1/3’’ Sony Exmor Sensor Resolution HD 720p : 1280 (H) x 960 (V) Compression H264/MJPEG Main flow (1280 x 720 at 25 fps) Maximum image frequency Secondary flow (704 x 576 at 25 fps) H.264 64 to 8 192 Kbps Speed MJPEG : 64 to 10 240 Kbps...

  • Page 5: Default Network Configuration

    Parameters IP Camera Standard ONVIF 2 / Profil S Live, recording, system configuration, diary, maintenance, update, Web access etc. Number of simultaneous connections Reset Integrated "RESET" button Power supply 12 V DC ; PoE 802.5af. Power consumption 2.5 W MAXIMUM -10 ℃...

  • Page 6: Structure

    2 Structure 2.1 Dimensions 2.2 System X-Y-Z rotation module Lens Casing Power supply 12 VDC RJ45 (PoE) Insert an Allen key to adjust the position...

  • Page 7: Installation

    3 Installation Wall or ceiling Expansion peg Body of the camera Screw Camera casing Casing fixing screws: Step 1 Use the Allen key to loosen the three casing fixing screws Step 2 Attach the template which is found in the box to help you drill the fixing holes Step 3 Place the camera as shown in the diagram and fix it Step 4...

  • Page 8: Connection To The Camera And Opening The Web Application

    4 Connection to the camera and opening the Web application 4.1 IE configuration options: iE configuration tools This camera is accessible via the web browser Internet Explorer. If the system shows a warning message asking you if you want to install the application webrec.cab. Click "OK" so that the system installs it automatically.

  • Page 9: Connect With The Config Tool

    4.1.1 Connect with the Config Tool Refer to section 5.2.1 "Connect with the camera's Web interface" 4.1.2 Connect with Internet Explorer The default IP parameters for the camera are as follows. - IP address: 192.168.1.108 - Username: admin - Password: admin Open Internet Explorer 32 Bits in administrator mode Enter the camera's IP address in the address bar.

  • Page 10: Rapid Config Tool

    5 Rapid Config Tool 5.1 Presentation The rapid config tool allows you to search for or modify an IP address. It also allows you to modify the parameters. You will find this tool on the CD supplied with your camera. Before using the rapid config tool, please make sure that you have the latest version.

  • Page 11: Modifying The Network Parameters

    2 - Select "Open Device Web" to access the camera's web interface: If you cannot connect, check the Internet Explorer security settings as indicated in section4. 5.2.2 Modifying the network parameters 1 - Select the Ipv4 addresses (the IPv6 addresses disappear) and click to select your camera.
  • Page 12 2 - Click on the "Login" button or double click on the highlighted line. The following page opens: The connection parameters are already filled in. 3 - Click on the "Login" button and the main interface appears. Functions Description DHCP Allows the activation or disactivation Enable of the DHCP function...

  • Page 13: Resetting The Camera

    7 Smartphone and tablet applications 7.1 Apple (iOS) The "Legrand Camera Viewer" app, available on Appstore, allows you to consult your videosurveillance system locally or remotely via an EDGE, 3G or Wi-Fi connection. It includes live viewing, snapshot and recording functions.

  • Page 14: Android

    7.2 Android The "Legrand Camera Viewer" app, available on Google Play, allows you to consult your videosurveillance system locally or remotely via an EDGE, 3G or Wi-Fi connection. It includes live viewing, snapshot and recording functions. An installation wizard, tutorials and help pages are available in the app.
