Summary of Contents for D-MAX DCC-528DV
- Page 1 DISTRIBUTED BY...
-

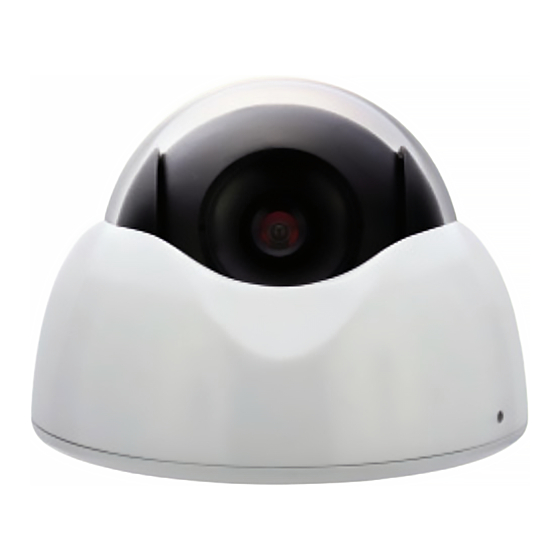

Page 2: Color Dome Camera
COLOR DOME CAMERA USER MANUAL 650 TVL... - Page 3 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 4 ■ Precautions Only use the camera under It can cause the image quality to conditions where temperatures are be poor. between -10°C and +50°C. Be especially careful to provide ventilation when operating under high temperatures. Severe lighting change or flicker It is one of the most important can cause the camera to work parts of the camera.
- Page 5 ⊙ Features ☺Horizontal Resolution 650 TVLines Clear image quality has been achieved by employing a SONY CCD with 410,000 (effective) pixels, which provides a horizontal resolution of 620 TV lines. ☺Electronic IRIS The electronic IRIS function enables continuous automatic control of the shutter between 1/60~1/120,000 seconds.
- Page 6 ⊙ Cable Connection POWE VIDEO ⊙ Dimension...
- Page 7 ⊙ Assemble This part is dome cover to protect camera This part is camera lens There are 2 screws to adjust angle camera. There are 3 holes to fix camera on a ceiling or wall * How to install ① Fix the camera body on a ceiling or wall via 3 holes. ②...
-
Page 8: Specifications
⊙ Specifications SIGNAL SYSTEM NTSC TOTAL / EFFECTIVE PIXEL 410K / 380K Pixels 470K / 440K Pixels IMAGE SENSOR 1/3” SONY interline transfer CCD HORIZONTAL RESOLUTION 650 TV Line MINIMUM ILLUMINATION 0.1 Lux /F 1.2 3.6 mm Manual Lens ● 4-9mm Auto Iris Lens LENS 2.9-10mm Auto Iris Lens...
