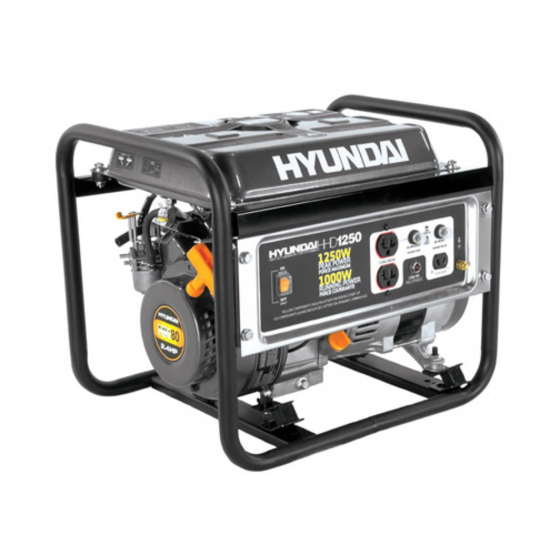

Hyundai HHD1250 User Manual

Portable generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.hyundaipower.ca

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HHD1250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai HHD1250

Summary of Contents for Hyundai HHD1250

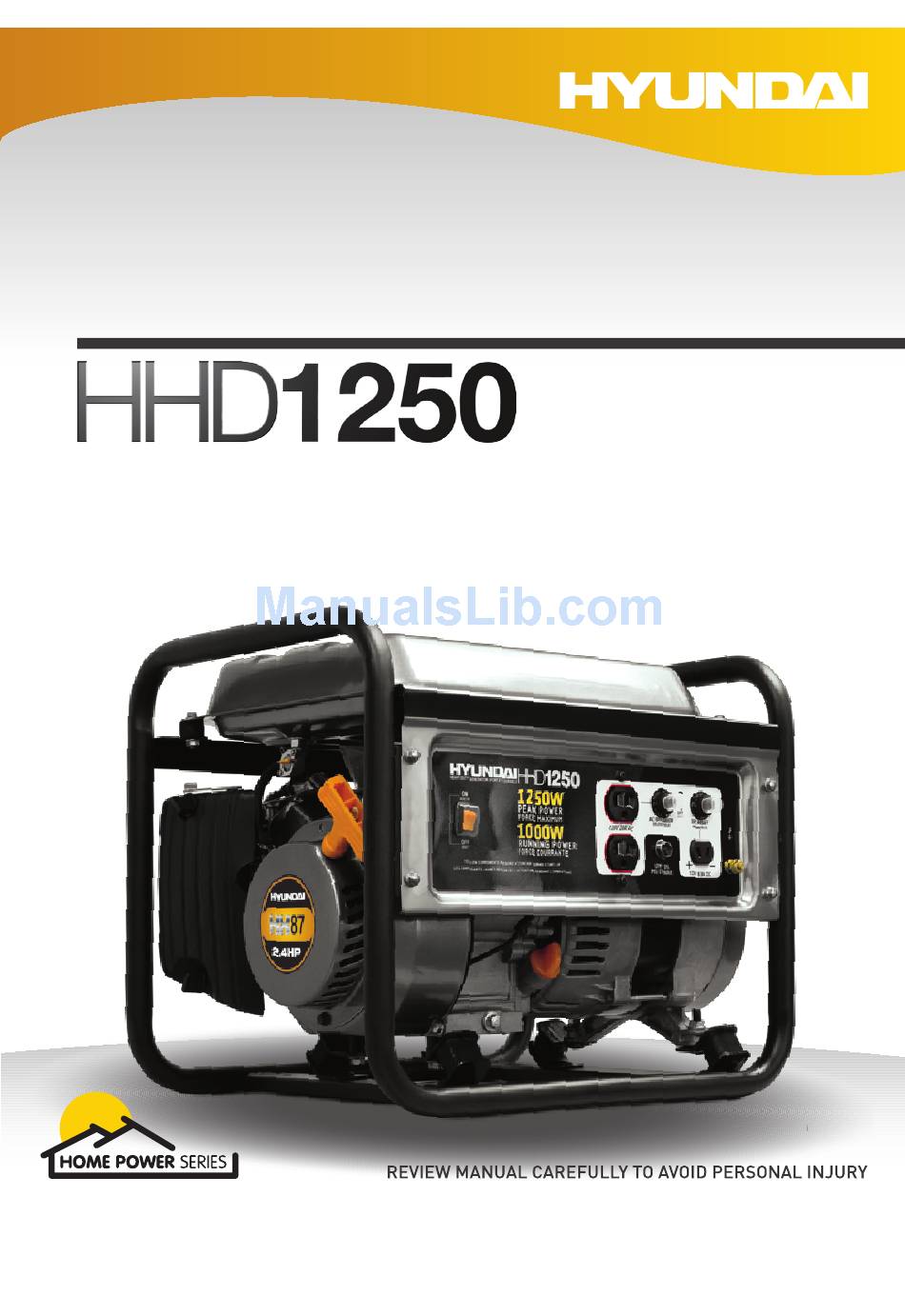

  • Page 1: User Manual

    www.hyundaipower.ca USER MANUAL...
  • Page 3 Licensed by Hyundai Corporation, Korea...
  • Page 4 PREFACE Thank you for purchasing a Hyundai Portable generator. Please register your product in order for us to ensure your continuous satisfaction with our product. This manual covers the safety, operation and maintenance proce- dures for the HHD1250 model. All information in this publication is based on the latest product information available at the time of approval for printing.

  • Page 5: Table Of Contents

    Contents SAFETY PRECAUTIONS 1.1) SAFETY LABELS.......... 1.2) OPERATION SAFETY........1.3) AC SAFETY GUIDELINES......1.4) MAINTENANCE SAFETY......1.5) OTHER SAFETY HARZARDS...... IDENTIFICATION OF COMPONENTS....6 PRE-OPERATION INSPECTION......11 OPERATION 4.1) STARTING THE GENERATOR SET..... 4.2) USING THE GENERATOR SET....4.3) STOPPING THE GENERATOR SET.... MAINTENANCE 5.1) IMPORTANCE OF MAINTENANCE.....

  • Page 6: Safety Precautions

    1. SAFETY PRECAUTIONS 1.1) SAFETY LABELS DANGER This symbol warns of hazards which can result in severe or lethal personal injury. WARNING his symbol refers to a hazardous or unsafe practice which has the potential to result in personal injury or product/property damage.

  • Page 7: Ac Safety Guidelines

    well ventilated area with the engine stopped. • When refueling the generator, keep it away from cigarette, open flames, smoke and/or sparks. • Connections for standby power to a building’s electrical system must be done by a qualified electrician and must comply with all applicable laws and electrical codes. Improper connections may cause serious injuries to electrical workers during power outage, and when the utility power is restored, the generator may explode or cause fires.

  • Page 8: Other Safety Harzards

    to lubricant may cause skin irritation. • Do not clean the filter element with flammable fluids like gaso- line because explosion may occur. • Turn off the generator set before performing any maintenance. Otherwise it can cause severe. personal injury or death • Allow the generator set to cool down before performing any maintenance.

  • Page 9: Identification Of Components

    2. IDENTIFICATION OF COMPONENTS Fuel Gauge Fuel Tank Air filter Choke lever Fuel valve Front panel Recoil starter handle Oil Dipstick...
  • Page 10 Spark plug Exhaust Carburator...

  • Page 11: Engine Switch

    DC Reset Switch Engine Switch AC Breaker Switch 120V AC (2) HHD 1250 HYUNDAI HEAVY DUTY GENERATOR/FORT ET DURABLE 1250W PEAK POWER FORCE MAXIMUM 120V 20A AC AC BREAKER DC RESET 1000W STOP RUNNING POWER FORCE COURRANTE LOW OIL DC12V 8.3A DC...
  • Page 12 LABEL PLACEMENT...
  • Page 13 LABEL PLACEMENT...

  • Page 14: Pre-Operation Inspection

    3. PRE-OPERATION INSPECTION WARNING Exhaust gas contains poisonous carbon monoxide. Never run the generator in an enclosed area. Be sure to provide adequate ventilation Operate the generator on a level surface. If the generator is tilted, fuel spillage may result Keep away from rotating parts while the generator is running.
  • Page 15 Fig. 3.0 Filler Cap/ Dipstick Upper level CAUTION Lower level gine oil is a major factor affecting engine performance NOTICE and service life. Non-detergent or vegetable oils are not When the oil level is low, the low oil light on the control panel will recommended.
  • Page 16 NOTICE: If the fuel gauge needle is at the “E” position, it means that the fuel tank is empty. If the needle is at the “F” position, it means that the fuel tank is full. WARNING Gasoline is highly flammable and explosive under certain conditions.
  • Page 17 Air FIlter Cover Filter Element Knob Fig. 3.2 2. Clean the air filter element with soap and water or solvent. Squeeze dry and then soak in clean engine oil. 3. Squeeze out all excess oil and reinstall. 4. Replace the element if it is damaged.

  • Page 18: Operation

    4. OPERATION CAUTION Do not connect the generator to a household electrical circuit. This could cause an overload and seriously damage the generator. Do not exceed the current limit specified for any one receptacle Be sure that devices do not exceed the generator’s running power for more than 30 minutes and that they never exceed the maximum power output of the generator.

  • Page 19: Starting The Generator Set

    Before using generator, a ground wire must be connected to the ground terminal. Before using the ground terminal, consult a qualified electrician. Ground Terminal Symbol: For HHD1250 (Recoil Start) 1. Before starting the engine, do not connect the device to the generator. 2. Turn the AC breaker switch to “OFF”...
  • Page 20 Fig. 4.1 5. Close the choke lever according to the arrow’s direction shown in the right diagram below. Not necessary if the engine is warm. Refer to Fig. 4.2. to OPEN position to CLOSE position Fig. 4.2 6. Pull the recoil starter handle slowly and return the handle to its original position.

  • Page 21: Using The Generator Set

    7. After the engine warms up, move the choke lever back to the original position NOTE: Do not use the choke if the engine is warm or if the air temperature is high (above 50 4.2: Using the Generator Set AC Operation 1.

  • Page 22: Stopping The Generator Set

    DC Operation NOTICE: The DC socket can only be used for charging a 12V battery 1. Connecting the battery charging wires a) Connect the battery charging cable to the battery WARNING Batteries produce explosive gases. Keep sparks, flames, and cigarettes away from the battery. Provide adequate ventilation when charging or using batteries.

  • Page 23: Maintenance

    5. MAINTENANCE 5.1: Importance of Maintenance Proper maintenance is important because it will ensure safe, eco- nomical and trouble-free operation. It will also reduce air pollution. Improper maintenance may cause the generator to malfunction and can lead to serious injuries or death. 5.2: Maintenance Schedule WARNING Shut off the engine before performing any maintenance.
  • Page 24 Item Remarks Pre- Initial Every 3 Every 6 Every oper- months months ation month or 50 or 100 months check or 20 or 300 (daily) • • Check condition Spark adjust gap Plug and clean. Replace if necessary • • •...

  • Page 25: Air Filter Service

    • • Check for leakage. Retighten or replace gasket if necessary haust • Check System muffler screen. Clean/ replace if necessary • • Check Carbu- choke retor operation • Cooling Check fan System damage • • Check re- Starting coil starter System operation •...
  • Page 26 1. Rotate the knob to release 2. Lift the air filter cover to remove from the air filter unit 3. Remove the foam filter element. Refer to Fig. 5.0 Filter Cover Filter Element Knob Fig. 5.0 4. If the foam filter element is dirty, clean it in warm soapy water, rinse, and allow it to dry thoroughly, or clean in nonflammable sol- vent and allow to dry 5. Drip the foam filter element in clean engine oil, then squeeze out all excess oil. The engine will smoke when started if too much oil is left in the filter. Refer to Fig. 5.1 6. Wipe dirt from the air filter unit and cover using a moist rag. Fig. 5.1...

  • Page 27: Changing Engine Oil

    5.4: Changing Engine Oil 1. Make sure the generator is placed on a flat, level surface 2. Start engine and run until it gets warm 3. Stop engine 4. Place oil pan or other container underneath the generator for holding oil 5. Keep oil filler cap to avoid oil spray 6. Use a wrench to remove the drain bolt and sealing washer 7. Slowly unscrew and remove the oil filler cap 8.

  • Page 28: Spark Plug Service

    5.5: Spark Plug Service 1. Remove the spark plug cap 2. Clean any dirt and debris from around the spark plug base 3. Use a wrench to remove the spark plug. Refer to Fig. 5.3 Spark Plug Cap Spark Plug Spark Plug Wrench Fig.

  • Page 29: Handling & Storage

    CAUTION The spark plug must be securely tightened. An improperly tightened plug can damage the generator. 5.6: Handling & Storage WARNING When transporting the generator, shut off the fuel valve and keep the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite.
  • Page 30 e) Retighten drain screw. Refer to Fig. 5.5 Carburetor drain screw Fig. 5.5 CAUTION Store the battery in a dry place and recharge it once a month. Do not store the battery in an excessively warm or cold place.

  • Page 31: Troubleshooting

    6. TROUBLESHOOTING The following table is a troubleshooting guide for diagnosing the generator set. If these recommendations cannot solve the problem, please contact our service center. WARNING Many troubleshooting procedures present hazards which can result in severe personal injury or death. Only trained and experienced service personnel with knowledge of fuels, electricity, and machinery hazards should perform service procedures.
  • Page 32 No fuel supplied to combustion clean fuel line with chamber, clogged fuel line dealer’s advice No fuel supplied to combustion supply fuel chamber, no fuel in tank fuel shut off not open Open valve Combustion chamber supplied with Remove carbon or wipe fuel, improper spark, spark plug dirty up spark plug with carbon or wet with fuel...
  • Page 33 Output power Engine RPM set too No load for 60Hz, available, abnor- high or low set 3780 rpm, No mality exists load for 50 Hz set 3150 rpm Loose component Locate and tighten Internal generator Consult dealer problem...

  • Page 34: Specifications And Data

    7. SPECIFICATIONS AND DATA HHD1250 60Hz Rated frequency (Hz) 1.00 Rated AC Output Power (kW) 1.25 Max AC Output Power (kW) 1-Phase Rated AC Voltage (V) Power Factor Single, 4-Stroke, Air-cooled, OHV Type Displacement (cm 80cc T.C.I. Ignition model Starting model Recoil Start Max.

  • Page 35: Wiring Diagrams

    8. WIRING DIAGRAMS...

  • Page 36: Warranty

    Hyundai Generators “Operation Manual. The repair or replacement of a generator will take place within a reason- able period of time during normal business hours.
  • Page 37 6) Damage caused by operation with improper fuel, or at speeds, loads, conditions, or modifications contrary to published specifica- tions. 7) Items not supplied by Hyundai, including, but not limited to; starting batteries, battery cables, external wiring, fuel lines, filters, etc;(refer to exclusions) 8) Repairs made during the warranty period, without first obtaining a case number from Hyundai Batteries supplied with any generator product should be consid- ered a bonus item and not covered by warranty.
  • Page 38 warranty. Product Registration Product registration is required for product support and warranty coverage. The owner’s registration found in the user manual can be complet- ed and mailed. You can also register Online at www.hyundaipower. ca. You should keep your receipt for proof of purchase. Warranty Claim Procedure: Warranty service must be performed by one of our authorized service dealers.

  • Page 39: Glossary

    10. GLOSSARY Air Filter- It removes dust from engine intake air. Carburetor- A device used to properly mix fuel and air in the cor- rect proportions and delivering the mixture into the engine’s com- bustion chamber. Choke Lever- It is used to provide proper starting mixture when the engine is cold.
  • Page 40 spark ignition engine. The plug supplied the spark that ignites the air/fuel mixture so that combustion can occur.

  • Page 41: Questionnaire

    Please complete and mail the form below, or register online by visiting our website: www.Hyundaipower.ca Personal Information First name: Last name: Address: Postal code: City: Province: Product Information Model name: Serial number: Date of purchase: Questionnaire Store name and number: Purchase price: Why our generator? Power rating...
  • Page 42 Questionnaire How did you nd out about us Internet Print In-Store Radio/TV Store yer Word of mouth Primary usage Emergency Tools Recreational Primary location of usage Work Home Gender Female Male Martial status Single Married Martial status Female Male Date of birth...
  • Page 43 Questionnaire Number of people in household other Primary residence Rent Education Full University Partial Secondary Secondary College Household income (thousand) Primary method of In-Store Online purchasing items Mail order Midland International 26 Hudders eld Rd. Please Mail to: Online registration at: Unit #2 www.Hyundaipower.ca Etobicoke, Ontario...
