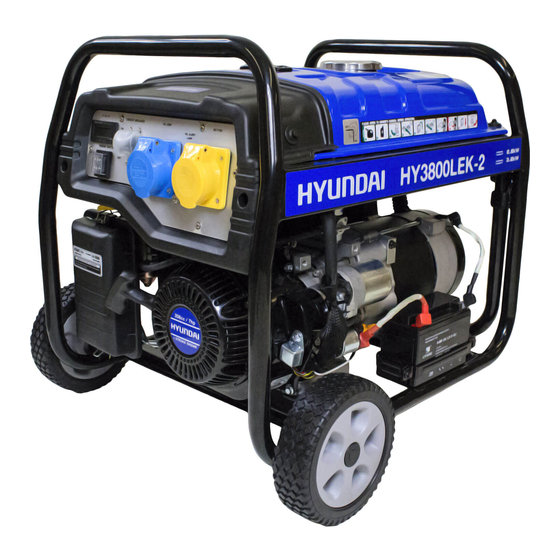

Open frame petrol generators

Advertisement

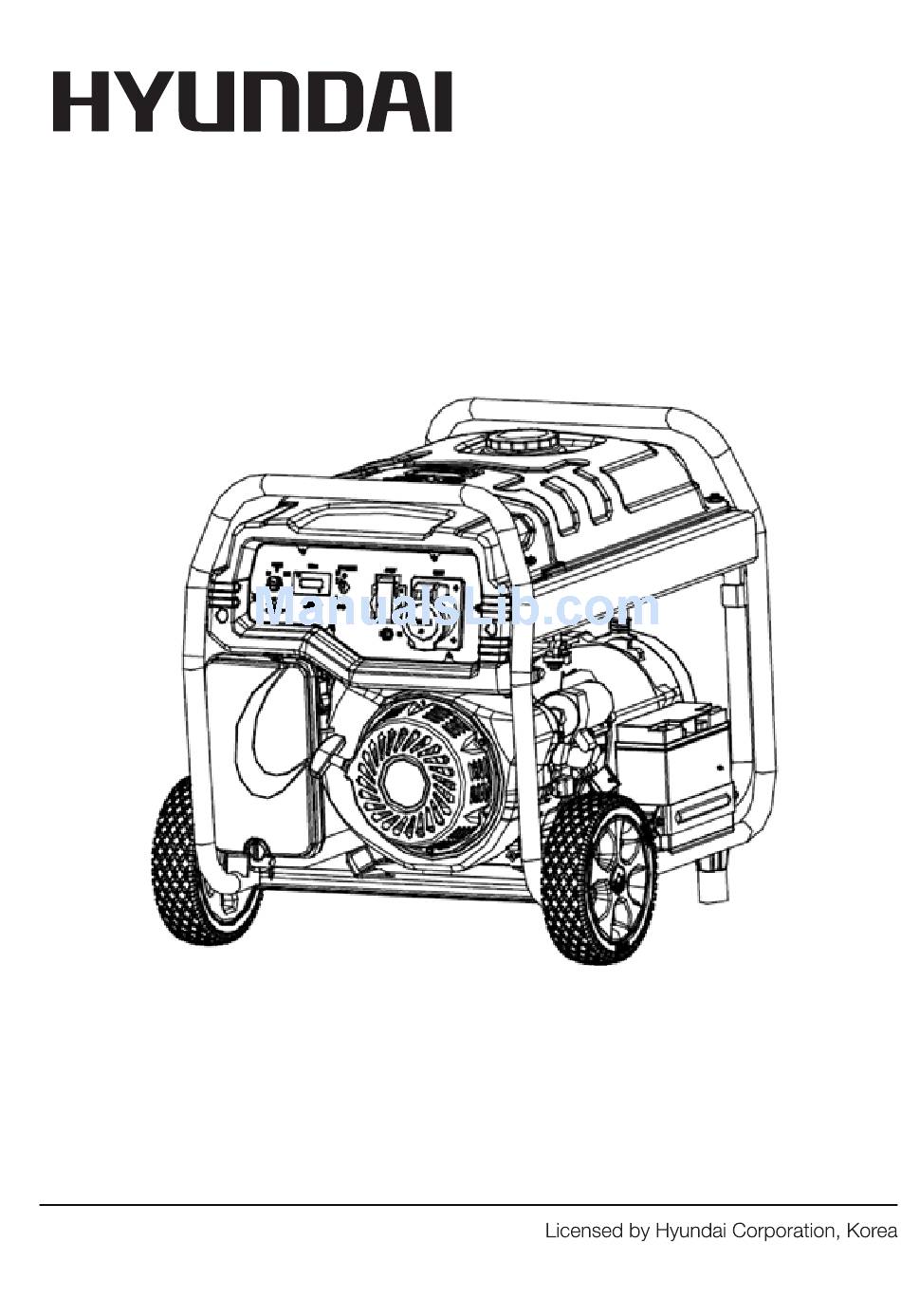

OPEN FRAME PETROL GENERATORS
Models - HY2800L-2, HY3800L-2, HY3800LEK-2,
HY7000LEK-2, HY9000LEK-2 &
HY10000LEK-2

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY2800L-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hyundai HY2800L-2

  • Page 1: User Manual

    OPEN FRAME PETROL GENERATORS Models - HY2800L-2, HY3800L-2, HY3800LEK-2, HY7000LEK-2, HY9000LEK-2 & HY10000LEK-2 User Manual...
  • Page 2 Page 2 Ver 2 - December 2016...
  • Page 3: Table Of Contents

    CONTENTS PAGE N SAFETY 4 – 8 UNPACKING & ASSEMBLY 8 – 9 PARTS LOCATIONS PREPARATION FOR USE 11 - 12 STARTING & STOPPING MACHINE 13 - 16 MAINTENANCE 17 – 20 STORAGE & TRANSPORTATION SPECIFICATION RECYCLING & PRODUCT DISPOSAL DECLARATIONS of CONFORMITY CONTACT DETAILS MANUAL UPDATES...
  • Page 4: Safety

    1. SAFETY 1.1. General safety notes. 1.1.1. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 5 1.2. Carbon monoxide. 1.2.1. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.2.2. The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 6: Safety

    1.3. General fuel safety. ALL FUELS ARE FLAMMABLE 1.3.1. Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps, sparks from grinding or welding. 1.3.2. DO NOT carry out hot work on tanks that have contained fuel it is extremely dangerous.
  • Page 7 NEVER work on or near electricity with wet hands, wet clothing, and wet gloves. 1.6. Batteries (Not fitted on HY2800L-2/HY3800L-2 models). 1.6.1. Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them.
  • Page 8: Unpacking & Assembly

    2.1.3. Open the carton by carefully cutting the carton down each corner, being careful not to cut the machine. 2.1.4. Leave the generator on the carton while you install the wheel kit. N.B. The HY2800L-2/HY3800L-2 versions DO NOT come with wheel kits. 2.2. Packing contents. 2.2.1. Owner’s manual – quantity 1.
  • Page 9 N.B. The wheels are NOT intended for on road use. 2.3.3. To install the wheels. 2.3.3.1. Slide the axle (2) through the wheel (1) from the outside then pass the axle through the flat washer (3) and through the frame. 2.3.3.2.
  • Page 10: Parts Locations

    3. PARTS LOCATIONS 3.1. Generic locations – locations may vary slightly between models. Page 10 Ver 2 - December 2016...
  • Page 11: Preparation For Use

    4. PREPARATION BEFORE USE The machine is shipped without oil - You MUST add oil before using this machine. 4.1. Oil type – SAE15W40. 4.2. Adding oil. 4.2.1. Place the generator on a flat, level surface. 4.2.2. Clean area around oil filler and remove oil cap and dipstick.
  • Page 12 4.4.7. IMPORTANT: To prevent gum deposits from forming in fuel system parts such as the carburetor, fuel hose or tank during storage. Alcohol-blended fuels (called gasohol), ethanol or methanol can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system.
  • Page 13: Starting & Stopping Machine

    OFF (down) position, before starting the engine. 5.1. Starting the engine – Recoil start. 5.1.1. On HY2800L-2/HY3800L-2 models press the engine switch (2 position switch) to ON position, on HY3800LEK-2, HY7000LEK-2, HY9000LEK-2 &...
  • Page 14 5.1.4. For recoil start, firmly grasp the recoil handle and pull slowly until increased resistance is felt. Then pull rapidly up and away. 5.1.5. When the engine starts, move choke lever to the ½ - choke position till engine runs smoothly and then to RUN position.
  • Page 15 Exhaust system heat and/or gases could ignite combustible, structures or damage the fuel tank causing a fire, resulting in death, serious injury and/or property damage. Contact with muffler area could cause burn resulting in serious injury. DO NOT touch hot part and AVOID hot exhaust gases. You MUST allow the equipment to cool before touching.
  • Page 16 5.4.2.3. Some electrical induction motors, require about three times more power for starting than for running. This surge of power only lasts a few seconds when starting. You MUST make sure you allow for high starting wattage when selecting electrical devices to connect to the generator; 5.4.2.3.1.
  • Page 17: Maintenance

    6. MAINTENANCE 6.1. Follow the maintenance intervals shown below. More frequent service is required when operating in adverse conditions. MAINTENANCE SCHEDULE After first 10 hours Change the engine oil - use SAE15W40 Clean the machine Every 8 hours or Daily Check the engine oil level Every 25 hours or Yearly Clean the engine air filter...
  • Page 18 the cooling air slots, some water will be retained in voids and crevices of the rotor and stator winding insulation which can cause electrical shorts circuits and damage the alternator. Water and dirt build up on the generator internal windings will eventually decrease the insulation resistance of these windings.
  • Page 19 6.4.2. Spark plug replacement. 6.4.2.1. Use spark plug F6TC, BPR4ES or Champion RN14YC. Replace the plug once each year. This will help the engine to start easier and run better. 6.4.2.2. Stop the engine and remove the HT lead from the spark plug. 6.4.2.3.
  • Page 20 6.4.5. Valve clearances. IMPORTANT If you are not competent to carry out this procedure or the proper tools are not available. We advise that you take the generator to your dealer to have the valve clearance adjusted. This is a very important step to ensure longest life for the engine. 6.4.5.1.
  • Page 21: Storage & Transportation

    7. STORAGE & TRANSPORTATION 7.1. Storage. 7.1.1. It is important to avoid gum deposits from forming in essential fuel system parts such as the carburetor, fuel hose or tank during storage. Also, experience indicates that alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids storage.
  • Page 22: Specification

    8. SPECIFICATION MODEL HY2800L-2 HY3800L-2 HY3800LEK-2 Engine – hp Displacement – cc Engine speed - rpm 3000 Fuel tank capacity – l Fuel type Straight unleaded petrol Oil type SAE15W40 Oil capacity - ml Start method/s Recoil Recoil Recoil/Electric Battery size – volts Frequency –...
  • Page 23: Recycling & Product Disposal

    9. RECYCLING & PRODUCT DISPOSAL 9.1. We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries instead the responsibility to dispose of WEEE and or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.
  • Page 24: Declarations Of Conformity

    E C D E C L A R A T I O N o f C O N F O R M I T Y The undersigned, as authorised by: GENPOWER Ltd Declares that the following equipment manufactured under licence by Hyundai Korea 2000/14/EC (as amended) Conforms to the Directive...
  • Page 25: Contact Details

    11. CONTACT DETAILS 11.1. POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire, SA72 4RW. UK. 11.2. TELEPHONE +44 (0) 1646 687880 11.3. +44 (0) 1646 686198 11.4. TECHNICAL E-MAIL service@genpower.co.uk 11.5. WEBSITE www.hyundaipowerequipment.co.uk 12. MANUAL UPDATES 12.1. Our manuals are constantly being reviewed and updated.
  • Page 26 Page 26 Ver 2 - December 2016...
  • Page 27 Page 27 Ver 2 - December 2016...
  • Page 28 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
