  • Page 1 INVERTER GENERATOR Model HY3600SEi...
  • Page 2 Page 2 Rev 6...

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY 4 - 6 2. WARNING SIGNS 3. ADDITIONAL WARNINGS 4. COMPONENT LOCATIONS 8 - 9 5. PRE-OPERATION CHECKS 10 - 11 6. STARTING THE ENGINE 11 - 18 7. MAINTENANCE 19 - 21 8. TRANSPORTATION AND STORAGE 21 - 22 9.

  • Page 4: Safety

    1. SAFETY. 1.1. The operator of the machine; 1.1.1. Is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. 1.1.2. Should never leave it in a condition which would allow an untrained or unauthorised person/s to operate this machine.
  • Page 5 1.3. Carbon monoxide. 1.3.1. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2. The symptoms of Carbon monoxide poisoning can include but not limited to the following; 1.3.2.1.

  • Page 6: Safety

    1.5. Petrol safety. 1.5.1. Always fuel and defuel in well-ventilated area. 1.5.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.5.3. Hand protection. 1.5.4. Protective clothing. 1.5.5.

  • Page 7: Warning Signs

    2. WARNING SIGNS The generator is designed to give safe and dependable service if operated according to instructions. Read and understand this manual carefully before operating the generator, or it may cause serious injury and equipment damage. Exhaust contains poisonous carbon monoxide. Do not operate generator in confined area.

  • Page 8: Component Locations

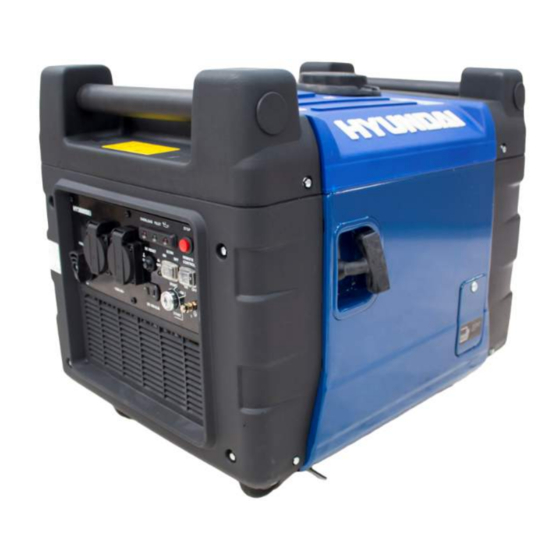

    4. COMPONENT LOCATIONS For your own safety - Read this manual carefully before using the machine. If you pass this machine on to another user you should also pass on this user manual. 1. Control panel 2. Ventilation grille 3. Wheels 4.
  • Page 9 4. COMPONENT LOCATIONS Continued Under cover item 11 main unit Under cover item 5 main unit 1. Oil filler access point 2. Oil filler 1. Battery 2. Battery negative lead 3. Dipstick - disconnected for shipping 3. Fuel filter 4. Air filter 5.

  • Page 10: Pre-Operation Checks

    5. PRE-OPERATION CHECKS 5.1 Check engine oil level. 5.1.1 Using non-detergent oil or 2-stroke engine oil could shorten the engine's service life. 5.1.2 Use high-detergent, premium quality 4-stroke engine oil, certified to meet or exceed manufacturer's requirements for API Service Classification SG, SF. (15W40) Select the appropriate viscosity for the average temperature in your area.

  • Page 11: Starting The Engine

    5.2.8 Petrol is extremely flammable and is explosive under certain conditions. 5.2.9 Always refuel in a well-ventilated area with the engine stopped. 5.2.10 Do not smoke or allow flames or sparks in the area where the engine is refuelled or where petrol is stored. 5.2.11 Do not overfill the fuel tank.
  • Page 12 6.1a Remote start. 6.1a.1 Turn the fuel valve (1) ON. 6.1a.2 Turn the remote control switch (3) to the ON position, the amber lamp (2) will flash. 6.1a.3 Push the start button (4) on the remote twice in quick succession. until the engine has.
  • Page 13 6.3 High altitude operation. 6.3.1 At high altitude, the standard carburettor air-fuel mixture will be excessively rich. Performance will decrease, and fuel consumption will increase. 6.3.2 High altitude performance can be improved by installing a smaller diameter main fuel jet in the carburettor and readjusting the slow tempo screws. If you always operate the generator at altitudes higher than 1,500 m (5.000 feet) above sea level, have your dealer perform these carburettor modifications.
  • Page 14 6.5 AC Applications. 6.5.1 Start the engine and make sure the output (Pilot) indicator light (2)(green) illuminates. 6.5.2 Confirm that the appliance to be used is switched off, lift flap and plug in the appliance to either or both of the sockets (1). 6.5.3 Substantial overloading that continuously lights the overload indicator light (red) may damage the generator.
  • Page 15 Before connecting an appliance to the generator, check that it is in good order, and that its electrical rating does not exceed that of the generator. Then connect the power cord of the appliance, and start the engine. Be sure all equipment is turned off before plugging in the power cord. When an electric motor is started, both the overload indicator light (red)(3) and the output (pilot) indicator light (green)(2) may go on simultaneously.
  • Page 16 6.8 Confirm that the equipment to be used is switched off, and insert the plug of the equipment to be used into the AC socket. Check that the equipment to be connected is switched off. When the equipment to be used is switched on, it will operate suddenly and without warning, and can cause injuries or accidents.
  • Page 17 Charging wires 6.12 To prevent the possibility of creating a spark near the battery, connect charging cable first to the generator, then to the battery. Disconnect cable first at the battery. 6.12.1 Before connecting charging cables to a battery that is installed in a vehicle, disconnect the vehicles grounded (earth) battery cable.
  • Page 18 6.17 Start the engine. 6.17.1 The DC receptacle may be used while the AC power is in use. 6.17.2 An overloaded DC circuit will trip (1) the DC circuit protector. If this happens, disconnect the DC load before pushing in the circuit protector to resume operation. 6.18 Oil Alert system.

  • Page 19: Maintenance

    7. MAINTENANCE 7.1 The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. 7.2 Inspect or service as scheduled in the table below. Shut off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated. The exhaust contains poisonous carbon monoxide gas.
  • Page 20 Wash your hands with soap and water after handing used oil. Please dispose of used motor oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local recycling centre. DO NOT dispose of it by throwing it in your domestic waste or pour it on the ground.

  • Page 21: Transportation And Storage

    The spark plug must be securely tightened. An Improperly tightened plug can become very hot and possibly damage the generator. Never use a spark plug with an Improper heat range. Never use a spark plug without damping resistance, or it will cause no AC output 7.6 Spark arrester - Exhaust service.

  • Page 22: Troubleshooting

    8.2 Before storing the unit for an extended period: 8.2.1 Make sure the storage area is free of excessive humidity and dust. 8.2.2 Using a proprietary fuel syphon drain the fuel. 8.2.3 Petrol is extremely flammable and explosive under certain conditions. DO NOT smoke or allow flames or sparks in the area.
  • Page 23 9.2 The connected equipment doesn't start: 9.3 There is no power at the DC outlet socket: 9.4 No AC power at AC socket: Page 23 Rev 6...

  • Page 24: Specification

    10. SPECIFICATION Page 24 Rev 6...

  • Page 25: Wiring Diagram

    11. WIRING DIAGRAM Page 25 Rev 6...

  • Page 26: Declarations Of Conformity

    12. DECLARATIONS OF CONFORMITY Declaration of Conformity - Genpower Ltd confirms that these Hyundai products conform to the following EC directives; 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 97/68/EC NRMM Emissions Directive 2006/95/EC Low Voltage Directive 2000/14/EC Noise Emissions Directive Page 26...
  • Page 27 Page 27 Rev 6...
  • Page 28 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 e: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
