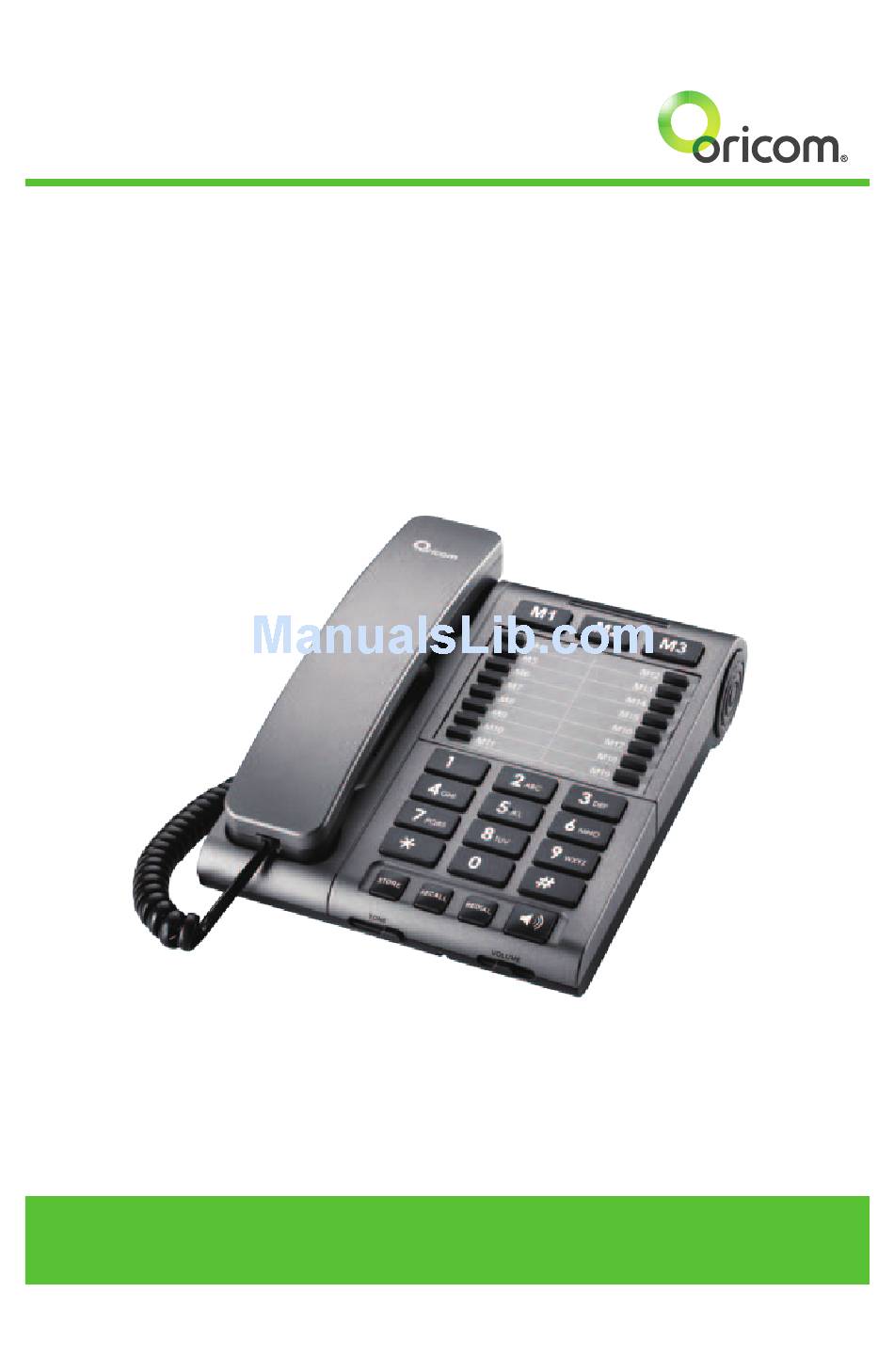

Page 1: User Guide

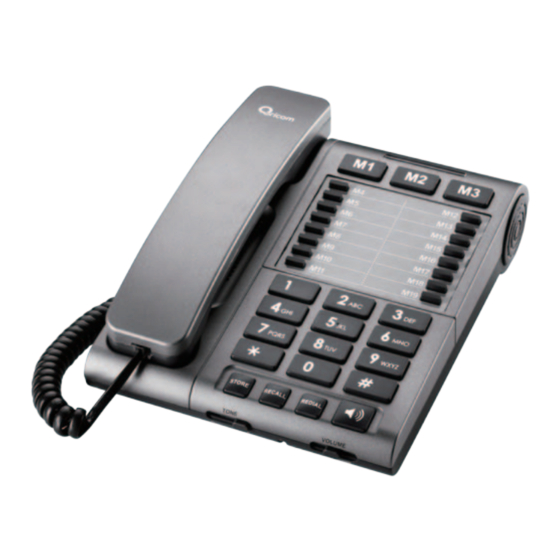

CARE90 Amplified Speakerphone User Guide Keep this user guide for future reference. Always retain your proof of purchase in case of warranty service and register your product on line at: AUSTRALIA: www.oricom.com.au... -
Page 3: Table Of Contents
Operation ................7 Memory ................11 Consumer Support ...............12 Warranty Information (Australia) ...........13 Need Help? If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support. Australia 1300 889 785 www.oricom.com.au Mon-Fri 8am – 6pm AEST... -
Page 4: General Information
General Information General Information It is very important that you read the User Guide carefully as it contains detailed information on WARNING installation, programming and operational issues which you will need to be aware of to ensure the Care Phone operates properly. - Page 5 General Information Notes for operation in New Zealand The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with the minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty.
-
Page 6: Installation
Installation Installation Desk Mounting Bracket position Fit the bracket as shown in the illustration. for desk mounting Insert the brackets three tabs into the matching slots on the bottom of the phone and click into place. Wall Mounting 1. Fit the bracket as shown in the illustration. Insert the brackets three tabs into the matching slots on the bottom of the phone and click into place. - Page 7 Location of Controls 5 6 7 8...
-
Page 8: Location Of Controls
Location of Controls Location of Controls 14 15 16 17 1. Hook switch 11. Mute button 2. Handset holder 12. Speakerphone volume 3. Boost button 13. Coil cord socket 4. Ring LED indicator 14. Ring Tone Hi/Mid/Low switch 5. Store button 15. Recall Time Switch 6. -
Page 9: Operation
Operation Operation Recall switch Setting For Australia the Recall switch should be set to 100. For New Zealand the Recall switch should be set to 600. Making a call 1. Pick up the handset and wait for a dial tone. 2. Dial the number you wish to call. -
Page 10: Ringer Volume Control
Operation Recall and call waiting Press the Recall button followed by the extension number to transfer calls when connected to a PBX. Access to additional Telephone network services can be gained by using the Recall button * and # keys. Contact your network operator for more information. -
Page 11: Volume Control
Operation Volume Control Handset Receiver volume control The Handset volume control located on the front of the phone enables you to adjust the receiver volume on the handset. Persons requiring a louder earpiece for comfortable operation can use the earpiece boost function. The receiver volume can be boosted up to 24dB during a conversation. -
Page 12: Hands Free Function
Operation Mute If you wish to speak privately to someone else in the room without your caller overhearing, press and hold the button underside the handset. You will still be able to hear the callers but they cannot hear you during the mute operation. -
Page 13: Memory
Memory Memory The telephone has 19 one-touch memories for frequently dialled telephone numbers. Storing One-touch Memory Buttons 1 Lift the handset. 2 Press the STORE button. 3 Enter the telephone number to be stored (maximum 22 digits). 4 Press the STORE button again. 5 Press Memory Button M1-M19 to store the number. -
Page 14: Consumer Support
If you have any problems setting up or using this product you will find useful tips and information in the Troubleshooting section of this user guide as well as “Frequently Asked Questions” on our website www.oricom.com.au. If you have further questions about using the product after reviewing the resources above or would like to purchase replacement parts or accessories please call our Customer Support Team. -
Page 15: Warranty Information (Australia)
Please note that if a Customer Support Team member advises that your product does not qualify for return, this warranty does not apply to your product. Products that are authorised to be returned to Oricom in Australia must include all of the following: • A completed Return Authorisation form... - Page 16 Warranty Information (Australia Warranty Information (Australia) This Warranty is provided by Oricom International Pty Ltd ABN 46 086 116 369, Unit 1, 4 Sovereign Place, South Windsor NSW 2756, herein after referred to as “Oricom”. Oricom makes no other warranties or conditions, express or implied, including as to acceptable quality and fitness for a particular purpose, except as stated in this Warranty.
- Page 17 No change to the conditions of this Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom. Oricom will not be in breach of a warranty expressly set out in this User Guide or under the Competition and Consumer Act 2010 and excludes any...
- Page 18 Competition and Consumer Act 2010 applies to this Warranty and which may not be so excluded, restricted or modified. For warranties that cannot be excluded, restricted or modified, Oricom limits the remedies available to those specified in the relevant legislation.
- Page 20 Phone: 1300 889 785 (Monday to Friday 8am to 6pm AEST) Web: www.oricom.com.au Fax: (02) 4574 8898 Contact details for Oricom support and warranty claims in New Zealand Email: support@oricom.co.nz Phone: 0800 674 266 (Monday to Friday 10am to 8pm NZST) Web: www.oricom.co.nz...
