Connections - Interlogix TVE-110 User Manual

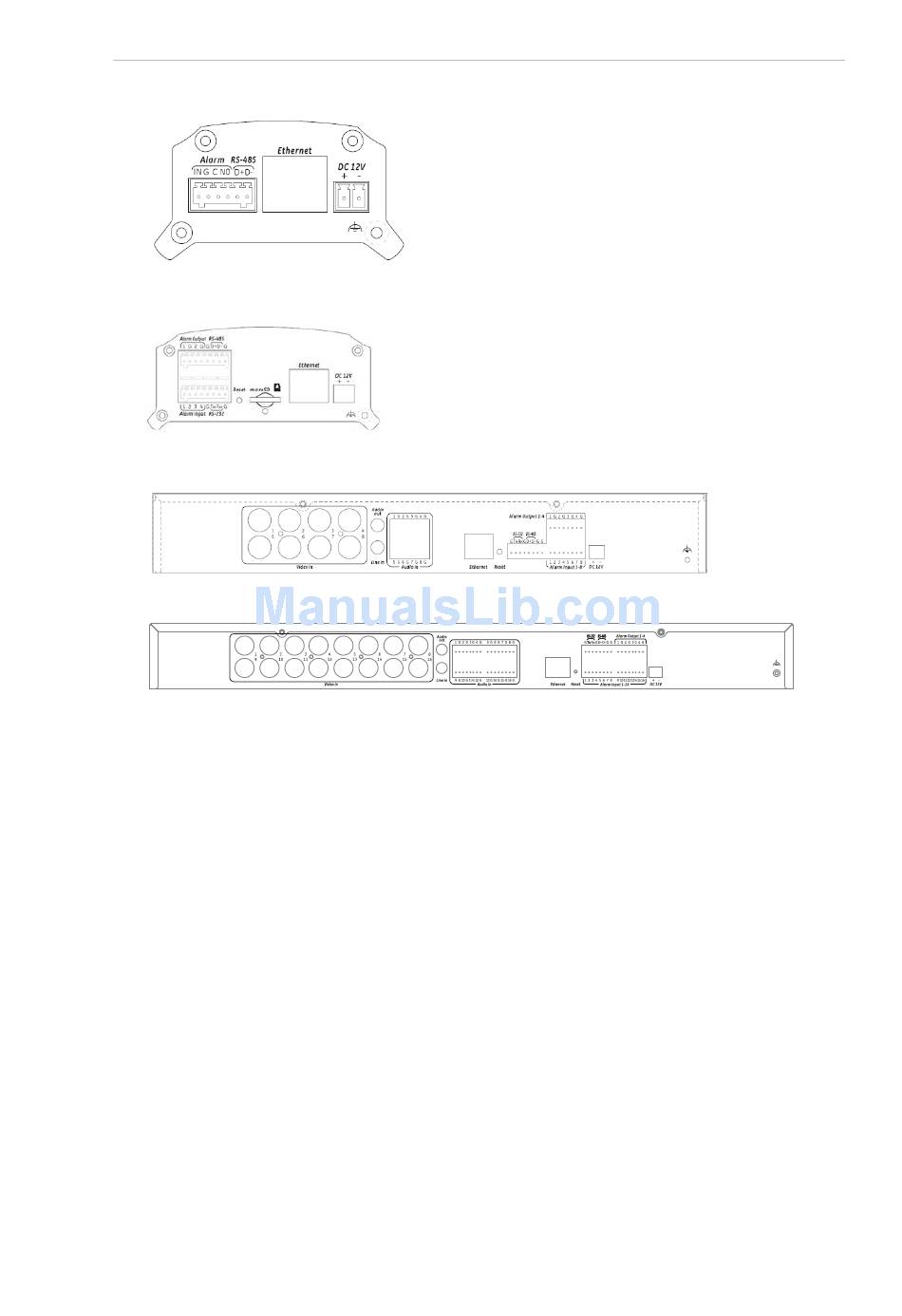

Figure 2: Rear Panel
1-channel:
4-channel:
8-channel:
16-channel:

Connections

See Figure 2 on page 3 for information on connecting the power, camera, audio
and network cables.
Alarm connections
The TVE encoder supports the open/close relay input as the alarm input mode.
When the alarm input signal not in open/close relay signal mode, please follow
the connections shown below:
