To configure RS-485:
1. Click
Configuration
485.

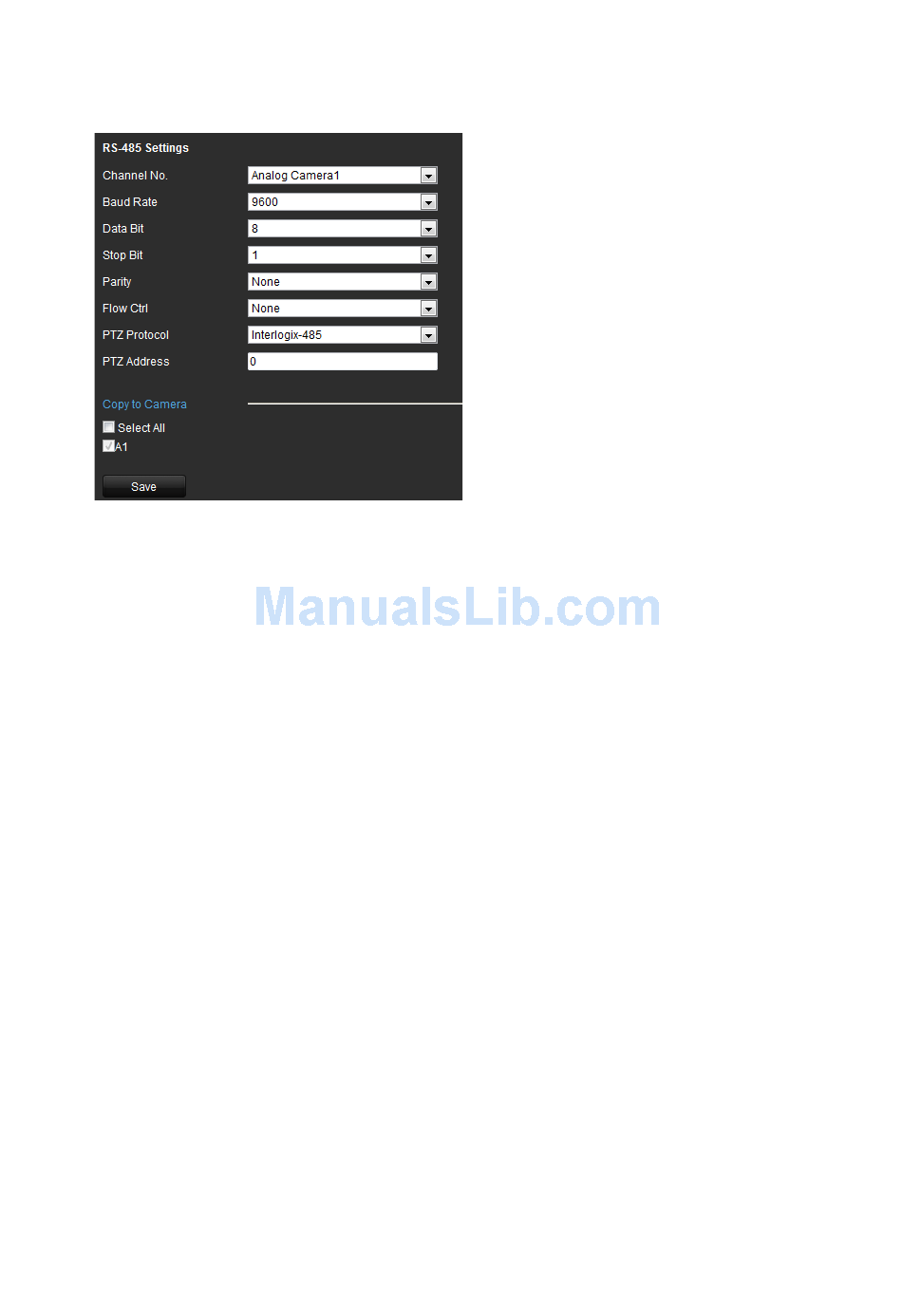

The RS-485 window appears.
2. Enter the RS-485 parameters. The default parameters are:
Baud rate: 9600
Data bit: 8
Stop bit: 1
Parity: None
Flow control: None
PTZ protocol: Interlogix-485
PTZ Address: 0
Note:
It is important to ensure that the settings correspond with those used in
the PTZ camera.
3. Click
Save
to save the settings.
Scheduling record settings
Ensure that the NetHDD has been installed and initialized before configuring the
recording settings.
Description of the record schedule window
Defining a recording schedule lets you specify when the encoder records video
and under what circumstances. Each camera can be configured to have its own
recording schedule.
42
>
Remote Configuration
TVE-110/410/810/1610 H.264 IP Video Encoder User Manual
>
Serial Port Settings
>
RS-
