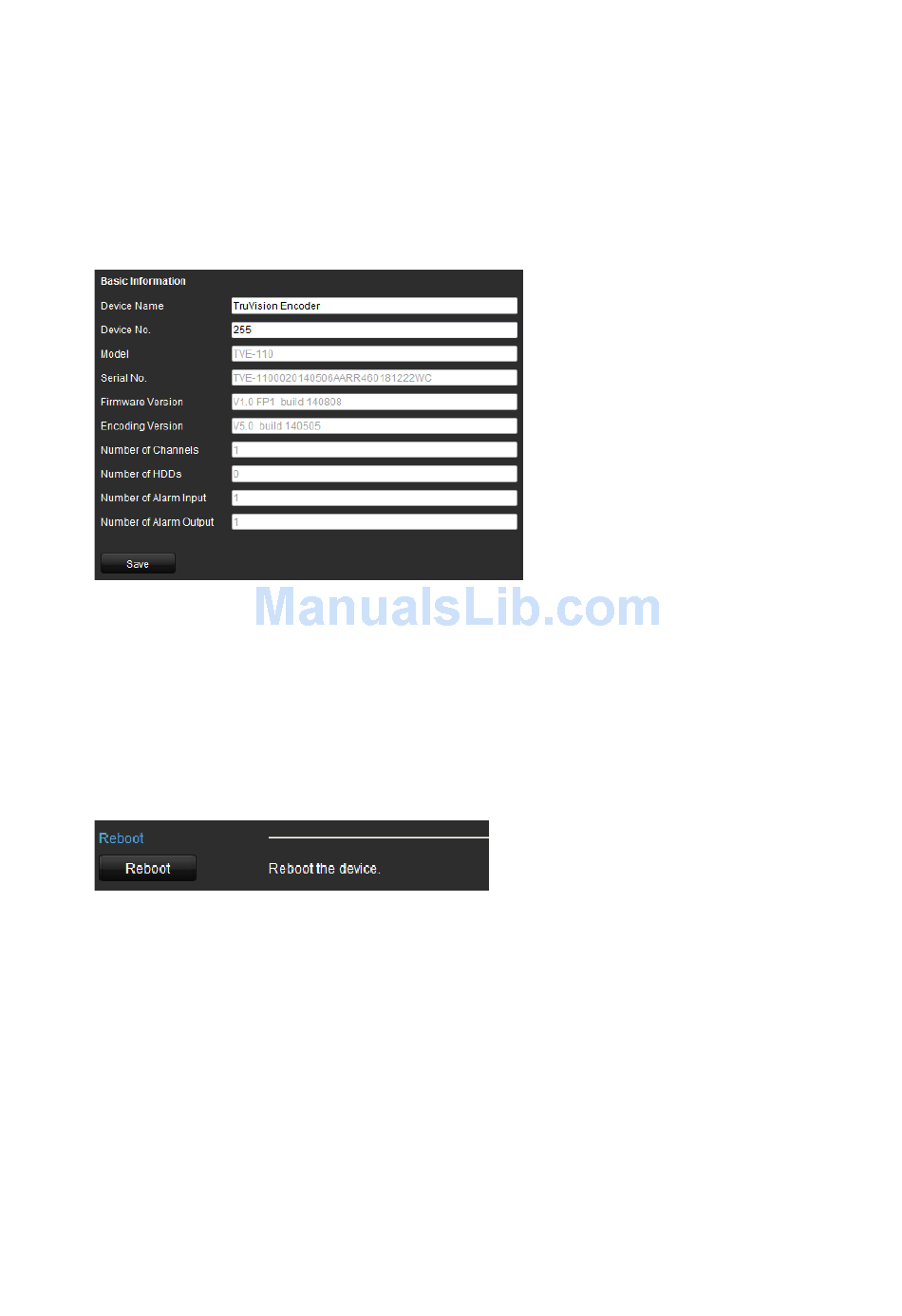

Viewing device information
You can change the encoder name and number as well as view information
about the device such as model and serial numbers, firmware version, encoder
version, number of HDDs, and the number of alarm inputs and outputs.
To view device information:
1. Click
Configuration
Information window appears
2. Change the device name or number, if required.
3. Click
Save
to save the settings.
Restarting the device
To restart the encoder:
1. Click
Configuration
2. Click Reboot.
3. Enter your user name and password and click OK. The encoder restarts.
Importing/exporting parameters
The configuration files of the device can be exported to a local back-up device.
The configuration files of one device can be imported to multiple device devices if
they are to be configured with the same parameters.
54
>
Device Parameters
> Maintenance. The Maintenance window appears.
TVE-110/410/810/1610 H.264 IP Video Encoder User Manual
>
Device
Information. The Basic
