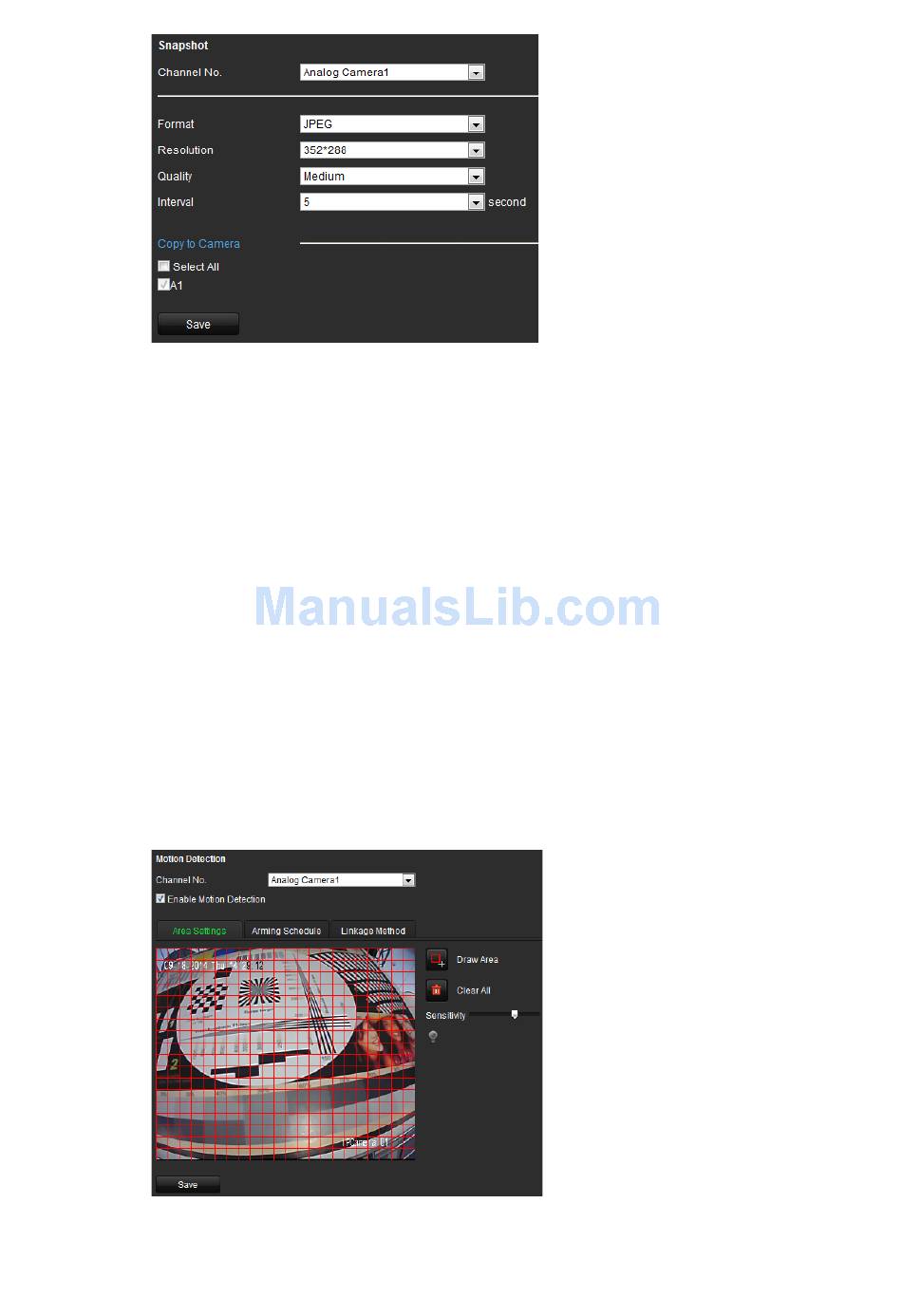

2. Select the channel number from which the pictures are to be captured.
3. Configure the snapshot parameters, including the format, resolution, quality,
and the interval between two snapshots.
4. Select the channel (s) to which you want to copy the same settings, if needed.
5. Click Save to save the settings.

Motion detection

The encoder can be set up to trigger an alarm if it detects motion and to record it.
You can then search these recorded motion activities for specific incidents.
Select the level of sensitivity to motion so that only objects that could be of
interest can trigger a motion recording. For example, recording is triggered by
the movement of a person but not that of a cat.
To configure motion detection:
1. Click Configuration
Detection. The Motion Detection window appears.
TVE-110/410/810/1610 H.264 IP Video Encoder User Manual
> Remote Configuration > Camera Settings > Motion
33
