Camera Set Up - Interlogix TVE-110 User Manual

To configure IEEE 802.1X settings:
1. Click the Configuration

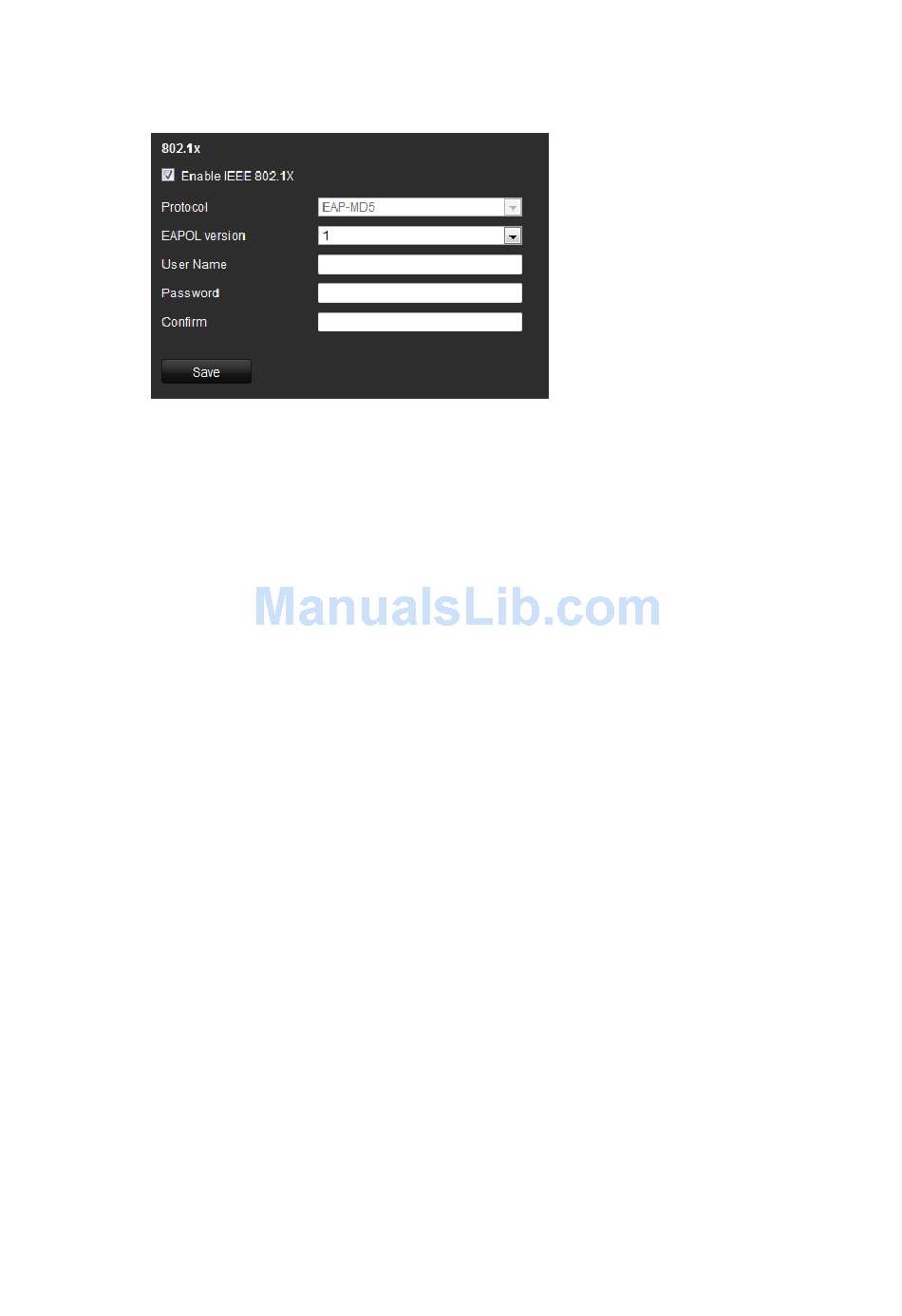

802.1X. The 802.1X window appears.
2. Check the Enable IEEE 802.1X
3. Configure the 802.1X settings, including EAPOL version, user name and
password.
Note: The EAPOL version must be identical with that of the router or the
switch.
4. Enter the user name and password to access the server.
5. Click Save to save the settings.

Camera set up

You can configure which information is displayed on-screen. The on-screen
display (OSD) settings appear in live view and recording modes and include the
camera name, time and date. You can also adjust the transparency of the OSD
relative to the background so that it is easier to read or is less prominent on
screen.
You can add up to eight lines of text on screen. This option can be used, for
example, to display emergency contact details.
To configure the OSD settings:
1. Click the Configuration
Display Settings.
TVE-110/410/810/1610 H.264 IP Video Encoder User Manual
> Remote Configuration > Network Settings >
checkbox to enable the feature.
> Remote Configuration
The Display Setting window appears.
> Camera Settings >
29
