Note: Time periods defined cannot overlap.

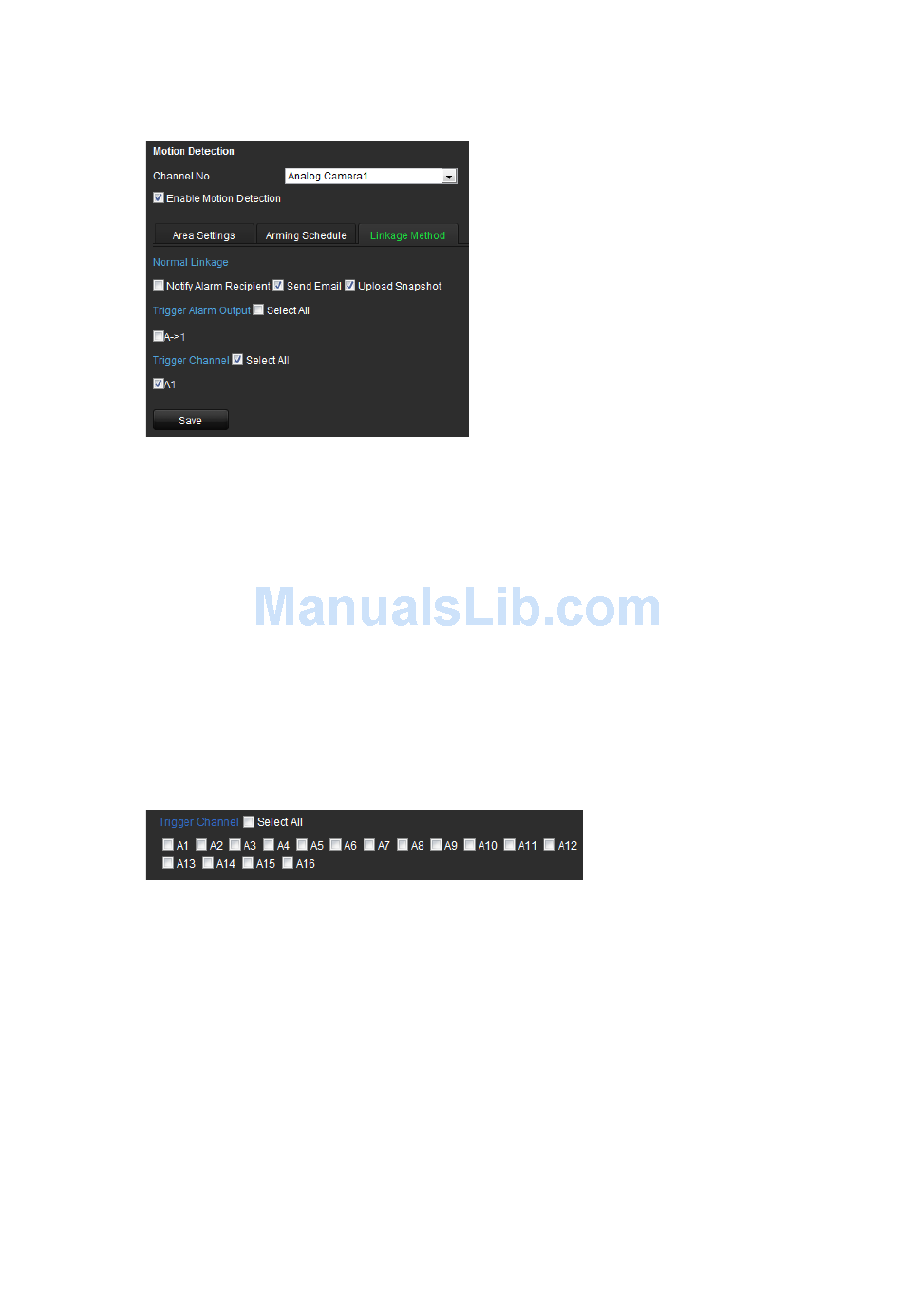

6. Select the response method to motion detection.
Click the Linkage Method
Under Alarm Linking, check one of more of the desired response methods:
- Notify Alarm Recipient: Send a notification or alarm signal to remote
alarm host when an event occurs. The alarm host refers to the computer
installed with remote client software
- Send Email: Send an email with alarm information to a user or users
when an event occurs.
- Upload Snapshot: Capture the image when an alarm is triggered and
upload the picture to a FTP server.
Under Trigger Alarm Output
output when a motion detection event occurs. See "To set up an alarm
output" below on how to set up an external alarm output.
Select the channel to trigger recording when a motion detection event occurs.
7. Click Save to save

Alarm settings

The encoder can be configured to record when an alarm is triggered by an
external alarm device (for example, PIR detector, dry contacts...).
To configure alarm inputs:
1. Click Configuration
Input. The Alarm Input Settings window appears.
TVE-110/410/810/1610 H.264 IP Video Encoder User Manual
tab.
select the channel to trigger an external alarm
settings.
> Remote Configuration > Alarm Settings > Alarm
35
