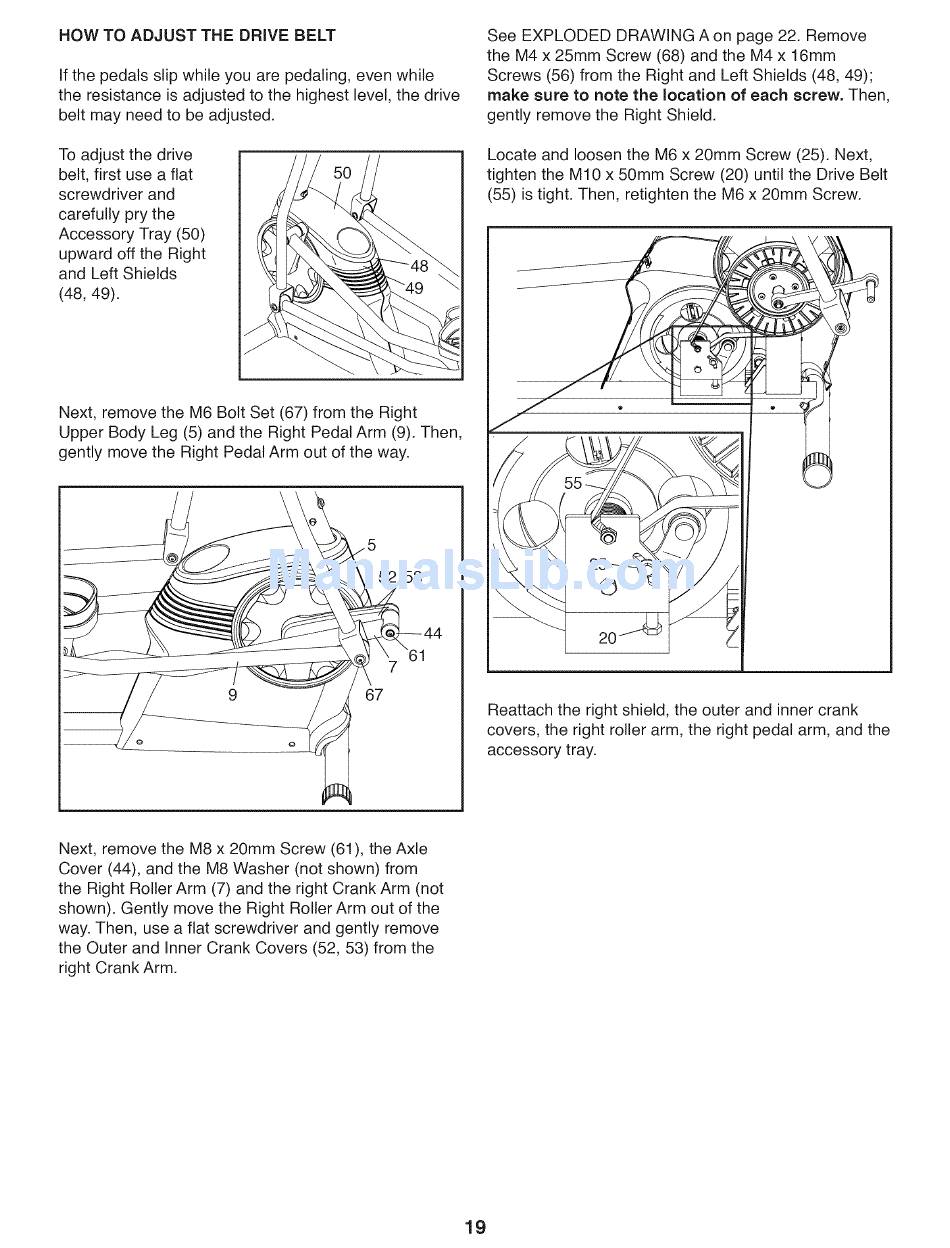

HOW TO ADJUST THE DRIVE BELT
if the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest level, the drive
belt may need to be adjusted.
To adjust the drive
belt, first use a flat
screwdriver and
carefully pry the
Accessory Tray (50)
upward off the Right
and Left Shields
(48, 49).
Next, remove the M6 Bolt Set (67) from the Right
Upper Body Leg (5) and the Right Pedal Arm (9). Then,
gently move the Right Pedal Arm out of the way.
52, 53
¢4
67
See EXPLODED DRAWING A on page 22. Remove
the M4 x 25mm Screw (68) and the M4 x 16mm
Screws (56) from the Right and Left Shields (48, 49);
make sure to note the location of each screw. Then,
gently remove the Right Shield.
Locate and loosen the M6 x 20mm Screw (25). Next,
tighten the M10 x 50mm Screw (20) until the Drive Belt
(55) is tight. Then, retighten the M6 x 20mm Screw.
o
Reattach the right shield, the outer and inner crank
covers, the right roller arm, the right pedal arm, and the
accessory tray.
Next, remove the M8 x 20mm Screw (61), the Axle
Cover (44), and the M8 Washer (not shown) from
the Right Roller Arm (7) and the right Crank Arm (not
shown). Gently move the Right Roller Arm out of the
way. Then, use a flat screwdriver and gently remove
the Outer and inner Crank Covers (52, 53) from the
right Crank Arm.
