MAINTENANCE AND TROUBLESHOOTING

I nspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
Most console problems are the result of low batter-
ies. To replace the batteries, see assembly step 12 on
page 11.
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 17.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
see HOW TO LEVEL THE ELLIPTICAL on page 13.
HOW TO GREASE THE ROLLERS
See the EXPLODED DRAWING near the end of this
manual. If the Rollers (16) squeak when moving on the
Track (11), apply a small amount of the included PTFE
grease to a paper towel. Next, spread a thin layer of
grease evenly along the Track where the Rollers move.
Then, wipe off any excess grease.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.

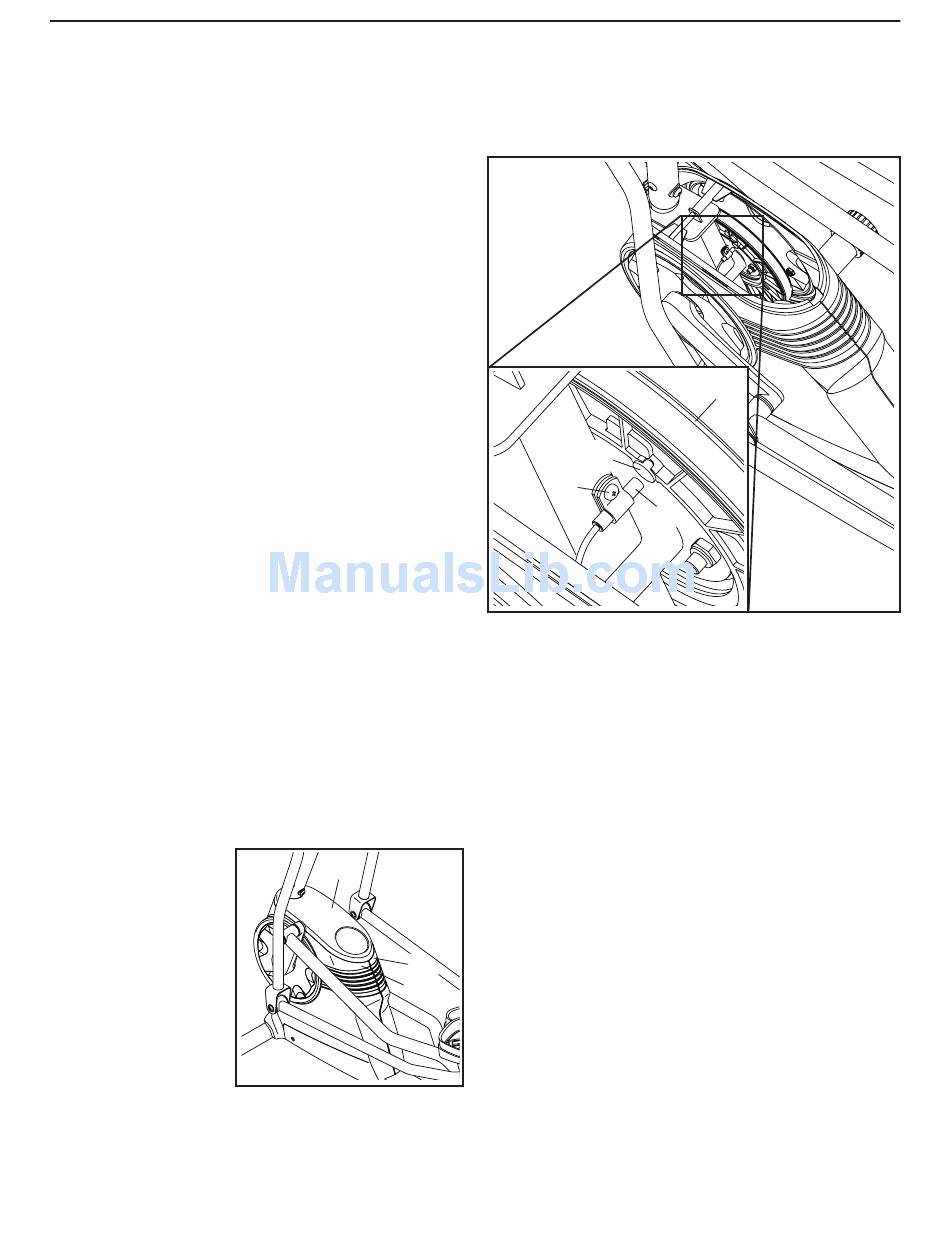

To adjust the reed
switch, first use a
flat screwdriver and
carefully pry the
Accessory Tray (50)
upward off the Right
and Left Shields
(48, 49).
Next, locate the Reed Switch (33). Turn the Pulley (15)
until a Magnet (65) is aligned with the Reed Switch.
Loosen, but do not remove, the indicated M4 x 12mm
Screw (57). Slide the Reed Switch (33) slightly closer
to or away from the Magnet (65), and then retighten
the Screw. Then, rock the Pulley (15) forward and
backward just enough that the Magnet passes the
Reed Switch repeatedly.
Repeat these actions until the console displays correct
feedback. When the reed switch is correctly adjusted,
reattach the accessory tray.
