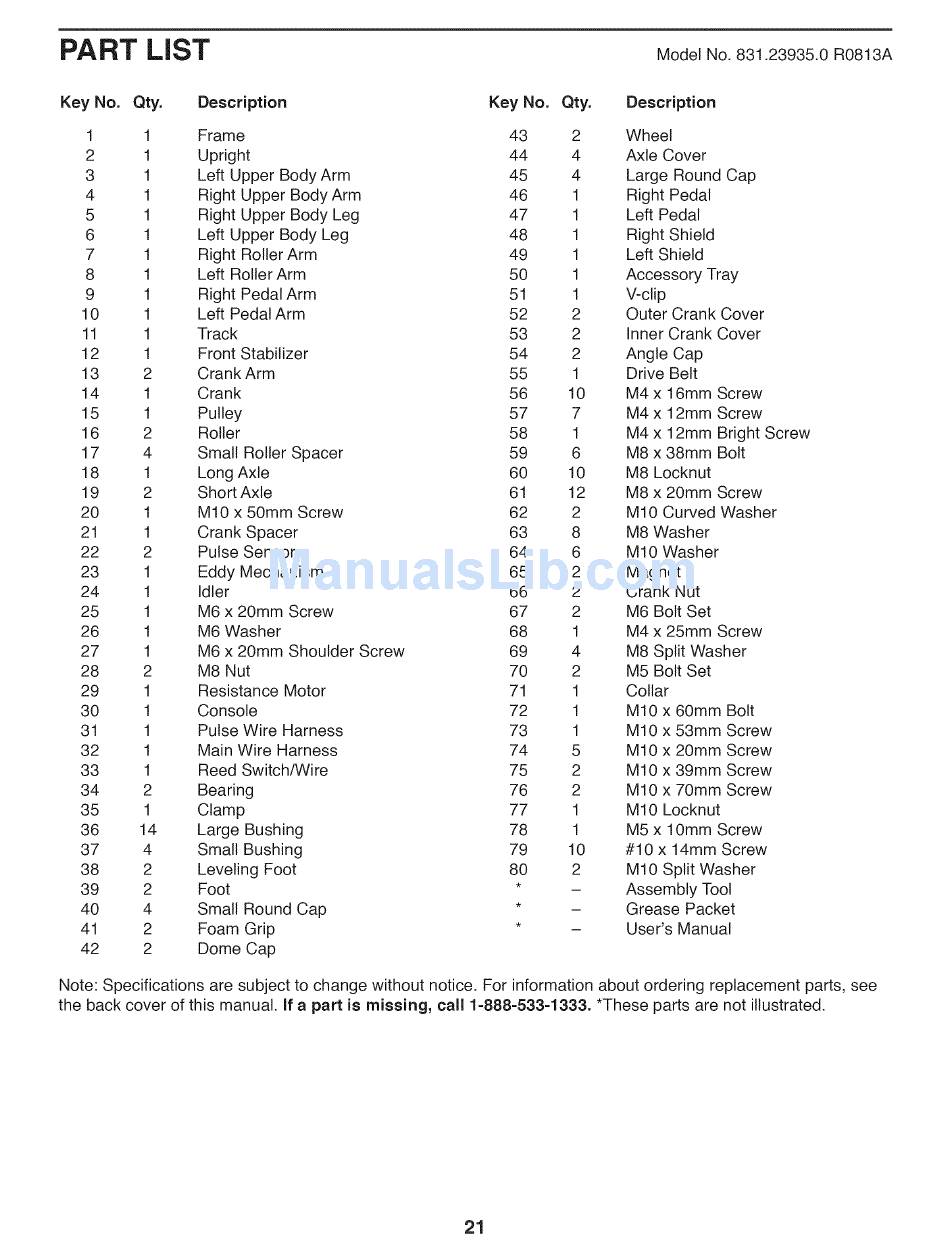

PART LIST
Model No. 831.23935.0 R0813A
Key No. Qty.
Description
Key No. Qty.
Description
1
1
Frame
43
2
Wheel
2
1
Upright
44
4
Axle Cover
3
1
Left Upper Body Arm
45
4
Large Round Cap
4
1
Right Upper Body Arm
46
1
Right Pedal
5
1
Right Upper Body Leg
47
1
Left Pedal
6
1
Left Upper Body Leg
48
1
Right Shield
7
1
Right Roller Arm
49
1
Left Shield
8
1
Left Roller Arm
50
1
Accessory Tray
9
1
Right Pedal Arm
51
1
V-clip
10
1
Left Pedal Arm
52
2
Outer Crank Cover
11
1
Track
53
2
inner Crank Cover
12
1
Front Stabilizer
54
2
Angle Cap
13
2
Crank Arm
55
1
Drive Belt
14
1
Crank
56
10
M4 x 16mm Screw
15
1
Pulley
57
7
M4 x 12mm Screw
16
2
Roller
58
1
M4 x 12mm Bright Screw
17
4
Small Roller Spacer
59
6
M8 x 38mm Bolt
18
1
Long Axle
60
10
M8 Locknut
19
2
Short Axle
61
12
M8 x 20mm Screw
20
1
M10 x 50mm Screw
62
2
M10 Curved Washer
21
1
Crank Spacer
63
8
M8 Washer
22
2
Pulse Sensor
64
6
M10 Washer
23
1
Eddy Mechanism
65
2
Magnet
24
1
idler
66
2
Crank Nut
25
1
M6 x 20mm Screw
67
2
M6 Bolt Set
26
1
M6 Washer
68
1
M4 x 25mm Screw
27
1
M6 x 20mm Shoulder Screw
69
4
M8 Split Washer
28
2
M8 Nut
70
2
M5 Bolt Set
29
1
Resistance Motor
71
1
Collar
30
1
Console
72
1
M10 x 60mm Bolt
31
1
Pulse Wire Harness
73
1
M10 x 53mm Screw
32
1
Main Wire Harness
74
5
M10 x 20mm Screw
33
1
Reed Switch/Wire
75
2
M10 x 39mm Screw
34
2
Bearing
76
2
M10 x 70mm Screw
35
1
Clamp
77
1
M10 Locknut
36
14
Large Bushing
78
1
M5 x 10mm Screw
37
4
Small Bushing
79
10
#10 x 14mm Screw
38
2
Leveling Foot
80
2
M10 Split Washer
39
2
Foot
*
-
Assembly Tool
40
4
Small Round Cap
*
-
Grease Packet
41
2
Foam Grip
*
-
User's Manual
42
2
Dome Cap
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual, if a part is missing,
call 1-888-533-1333.
*These parts are not illustrated.
