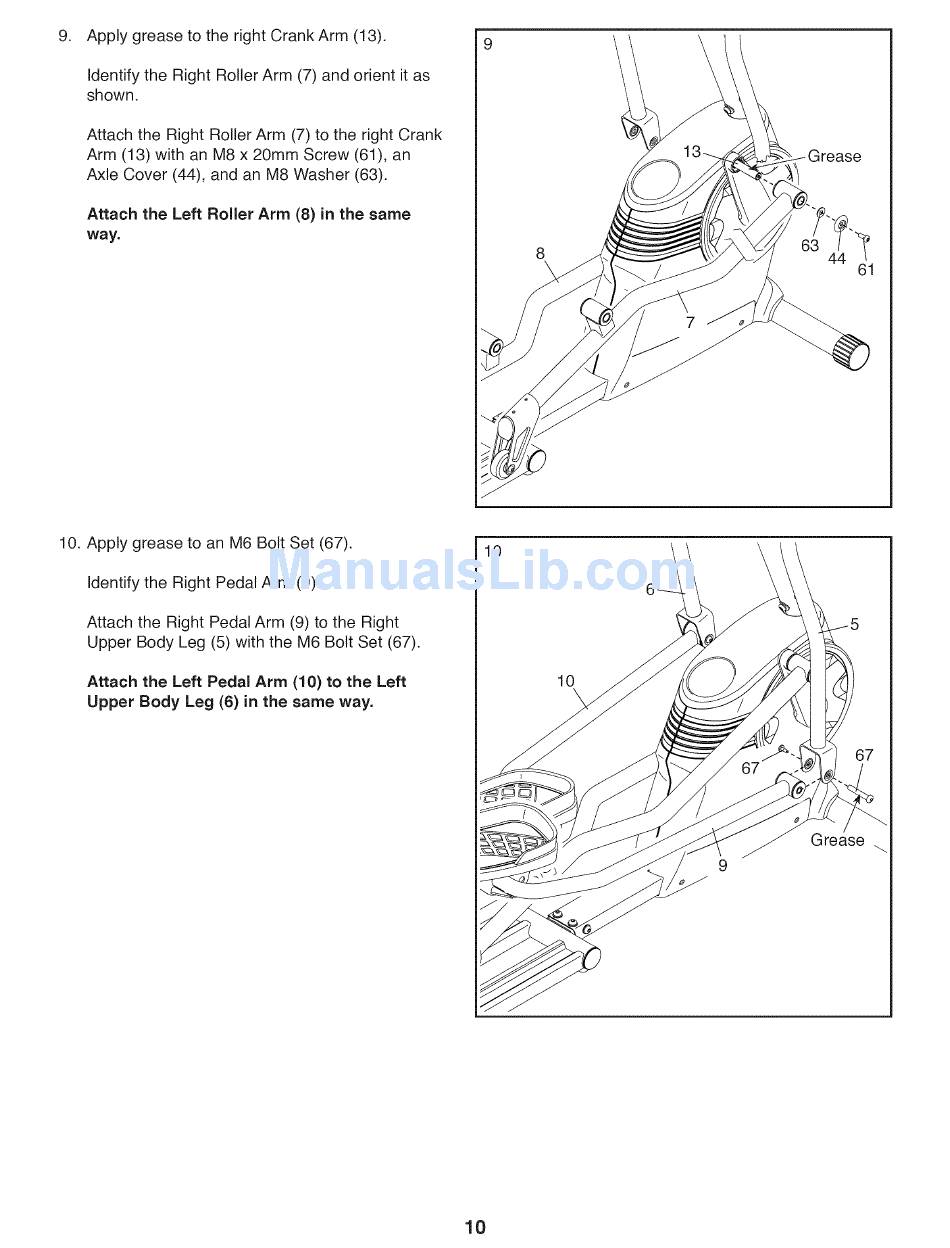

9. Apply grease to the right CrankArm (13).
identify the Right Roller Arm (7) and orient it as
shown.
Attach the Right Roller Arm (7) to the right Crank
Arm (13) with an M8 x 20mm Screw (61), an
Axle Cover (44), and an M8 Washer (63).
Attach the Left Roller Arm (8) in the same
way.
8
10. Apply grease to an M6 Bolt Set (67).
identify the Right Pedal Arm (9).
Attach the Right Pedal Arm (9) to the Right
Upper Body Leg (5) with the M6 Bolt Set (67).
Attach the Left Pedal Arm (10) to the Left
Upper Body Leg (6) in the same way.
10
10
Grease
10
