Paper Path Sensor; Scan Sensor - Lexmark X925 Service Manual

7541-03x

Paper path sensor

See "Scan sensor" on page

Scan sensor

Note: The scan sensor FRU assembly is made of the scan sensor and an optical (paper path) jam sensor.
1.
Remove the ADF main feed unit.
2.
Remove the scan sensor cover.
3.

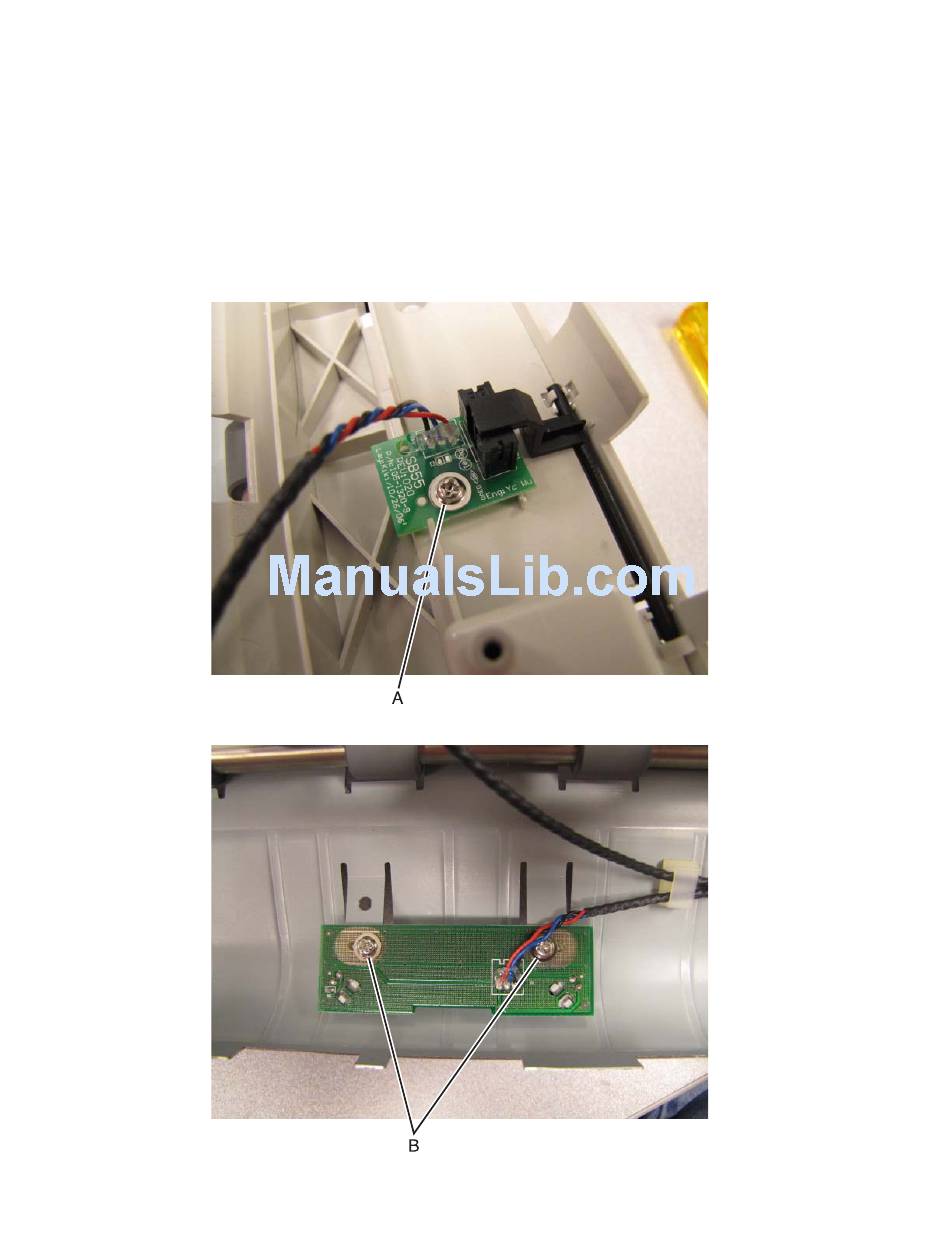

Remove the screw (A) securing the scan sensor to the scan sensor cover.
4.
Remove the two screws (B) securing the paperpath sensor to the ADF main feed unit.
