Left side removals

Left EMI shield removal (not a FRU)

1.
Remove the top cover. See
2.
Remove the left cover. See
3.

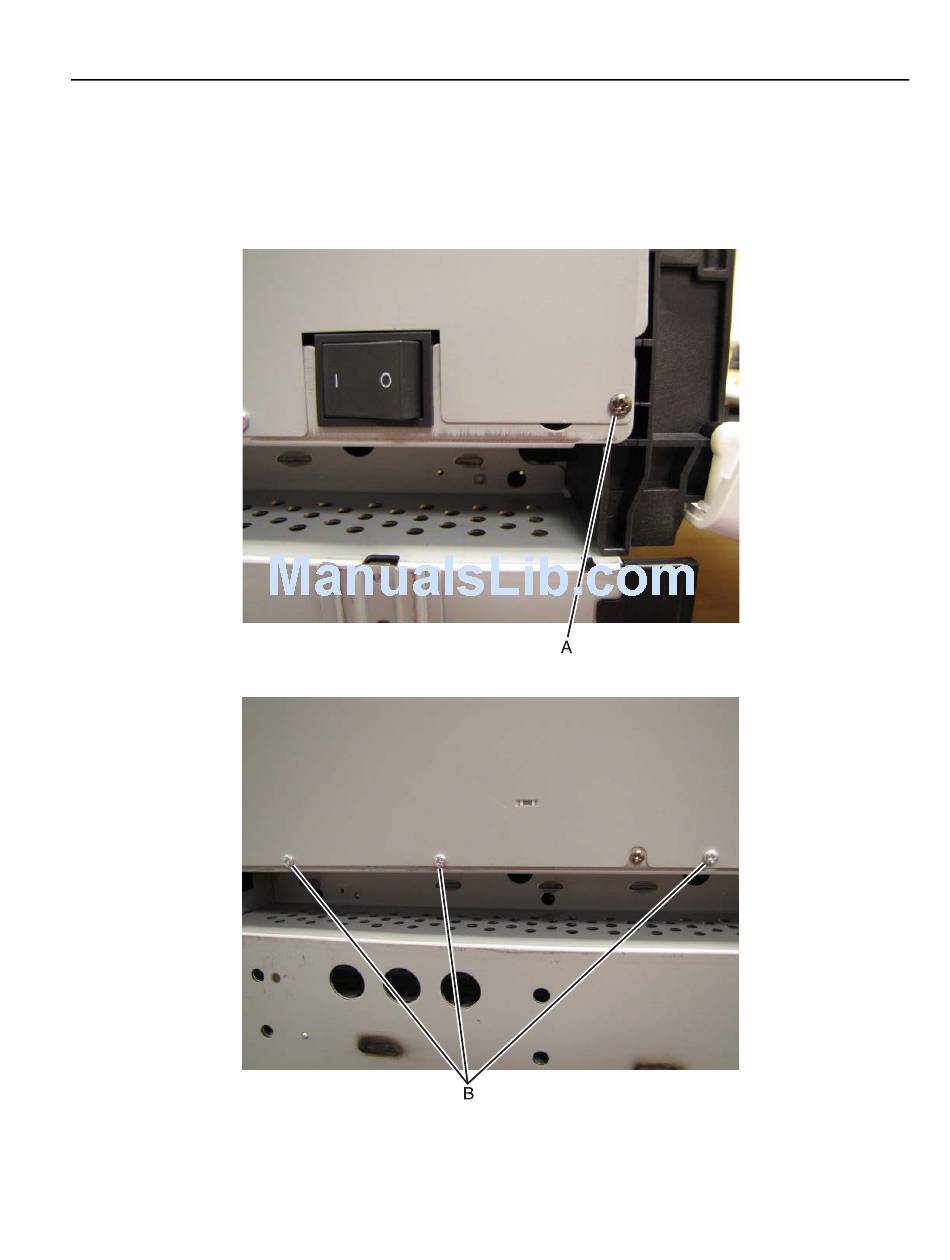

Remove the screw (A).
4.
Remove the three screws (B).
"Output bin (print engine top) cover" on page
"Left cover removal" on page
4-17.
4-22.
Repair information
7541-03x
4-45
