7 .4.3 Fuser Clutch (FUCL)
Tools
Phillips Screwdriver #1, #2
Slotted Screwdriver #1
Disassembly Procedures
1.
Remove the side cover (R). (See the item
7.1.3.)
2.
Remove the connector connected with
IOD2 Circut Card.
3.
Remove the C ring from the shaft.
4.
Pull out the fuser clutch from the shaft.
Assembly Procedures
1.
Install a new fuser clutch to the shaft.
2.
Install the C ring to the shaft's groove,
and secure the fuser clutch.
3.
Connect the connector with the IOD2
Circut Card.
4.
After the above , follow exactly the
reverse order of disassembling
procedures.
156
SuperScript 4400 — Maintenance Guide

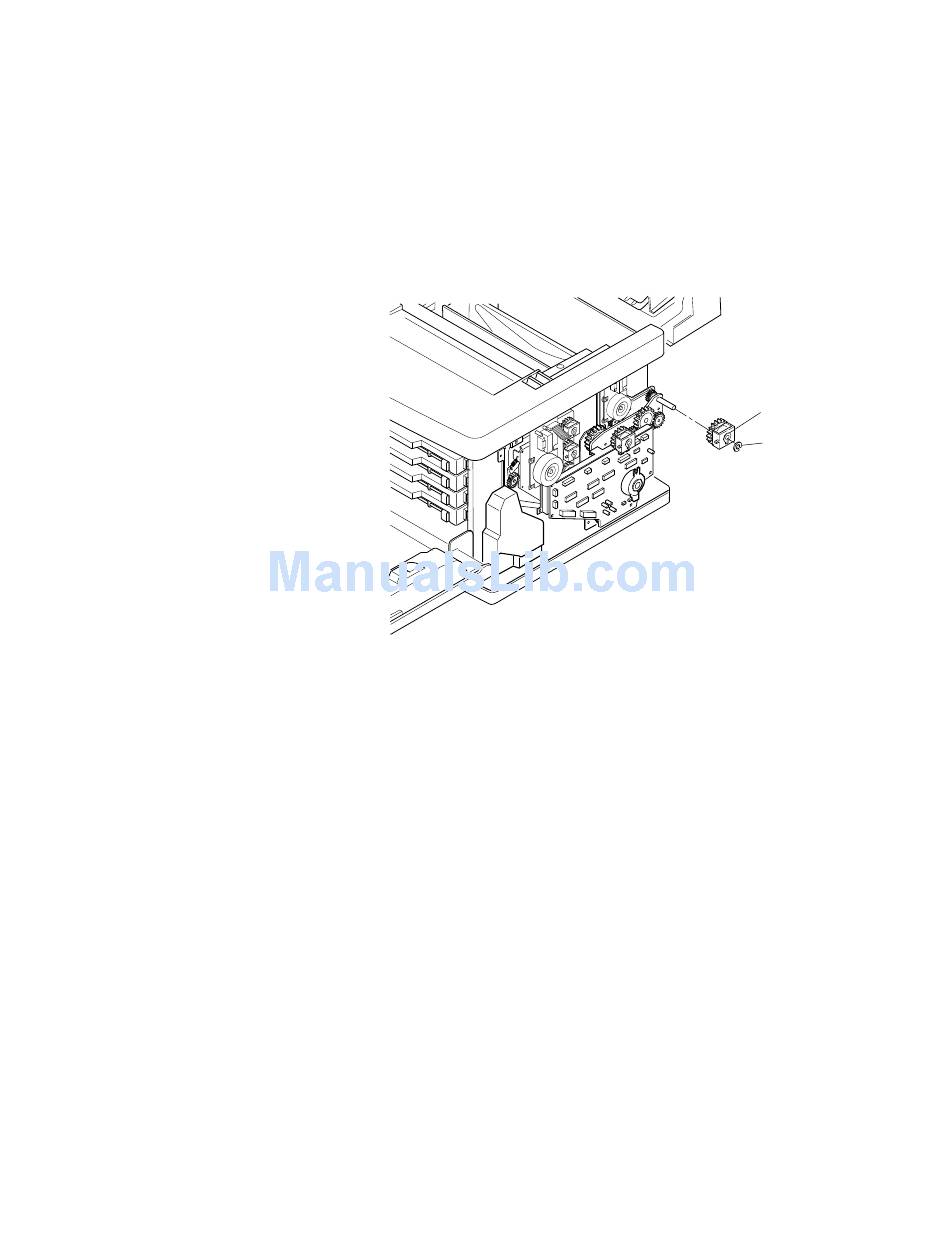

Fuser Clutch
C ring
