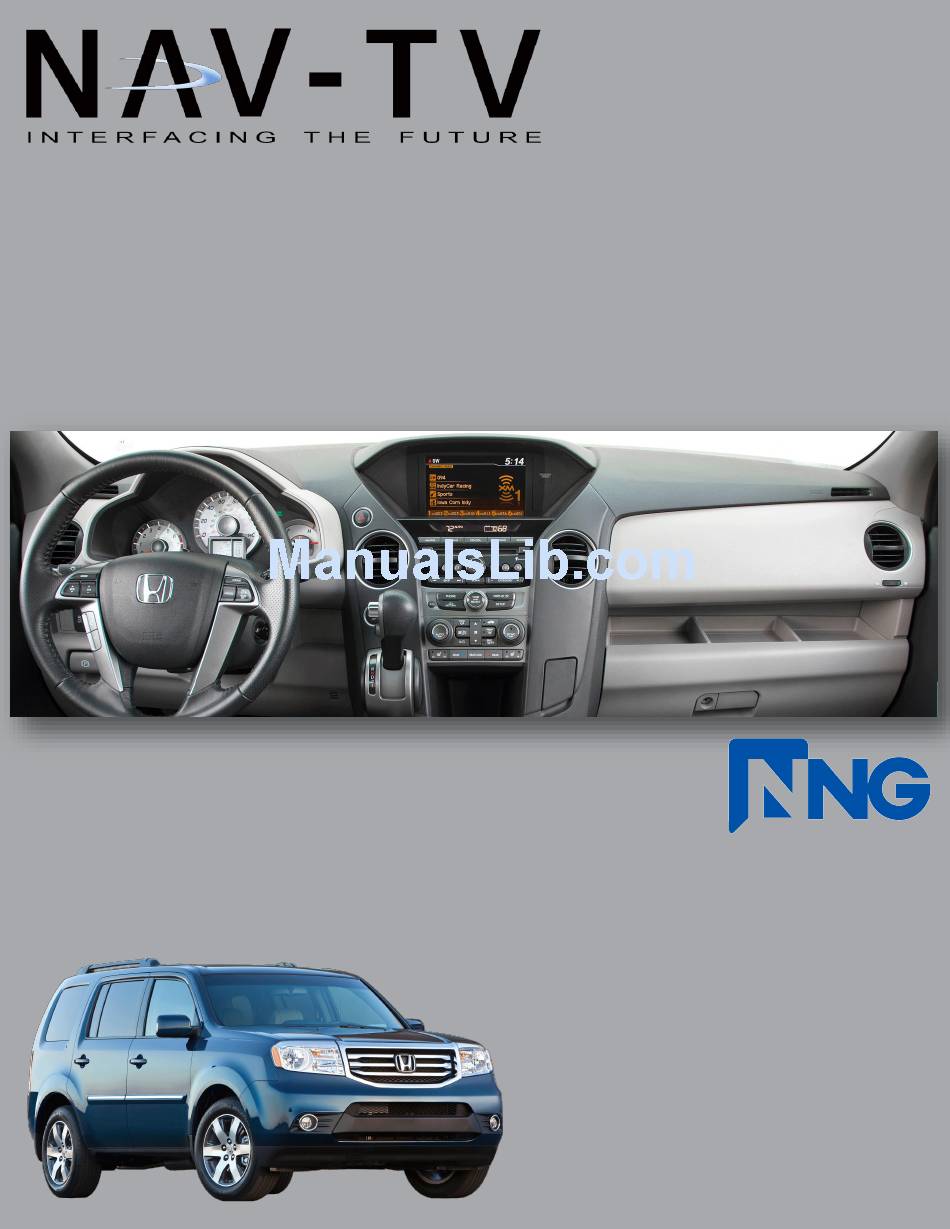

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 NNG-Honda 8 Navigation interface for select Honda vehicles NTV-KIT582 NTV-DOC220...
- Page 2 NTV-DOC220 Installation Guide Navigation Honda 8" Honda Odyssey Dash Removal setup MAP PAth Touch Screen Calibration Basic Trouble Shoot Remove side panel Remove AC Vent Panel Remove 3 screws Take out Screen Remove 4 screws Take out LCD Panel Get ready to place 1.
- Page 3 NTV-DOC582 Installation Guide Navigation Honda 8" Honda Pilot Dash Removal Remove AC Vent Remove 4 Screws Remove top panel (pulling out with tools) Remove 4 screws Take out LCD Panel Get ready to place 1. video board 2. touch screen panel...
- Page 4 NTV-DOC582 Installation Guide Navigation Honda 8" Install Touch Screen Panel Board Remove Front Bezel Use pick tools to Remove Video Board screws remove LCD Casing and 2 ribbon cable unscrew factory video board Place Touch Screen Panel and get ready to take off on in fron the LCD Panel LCD panel...
- Page 5 NTV-DOC582 Installation Guide Navigation Honda 8" Install Touch Screen Panel Board (II) Restore LCD Panel Install touch panel Look at the provided Label to define front/back side #1 Small Ribbon for Restore 3 Ribbon cable LCD panel Power connections #2 Video Ribbon Restore factory LCD Board #3) Touch Screen Ribbon Get ready for install...
- Page 6 NTV-DOC220 Installation Guide Navigation Honda 8" Install Video Board Place the provided 3 Studs into these location 1) Place Y-Connection on the Ribbon Cable - Factory Brown Ribbon go to daugther Board - Daugther board ribbon go to factory board 2) Place Touch Screen Ribbon into daugther board MAKE SURE SOCKET ARE ALIGNED and CLOSED...
- Page 7 NTV-DOC220 Installation Guide Navigation Honda 8" Install Video Board II Restore 3 factory screws into daugther board Get the Panel casing Peel off Metal Tape Go thru video cable Secure video connection from interface module to the daugther board...
- Page 8 NTV-DOC220 Installation Guide Navigation Honda 8" Install Video Board III Close LCD panel casing, get ready to install interface/GPS module Remove Protection Plastic Bezel *picture shown as odyssey, for pilot, remain the same procedure...
-
Page 9: Dip Sw Setting
NTV-DOC220 Installation Guide Navigation Honda 8" Overall Wiring Connection Figure Main Harness: 32P Screen Harness = To Screen and Car Side 8P Power Connector = To GPS box Harness Interface box: LCD (PINK) = To Interface box TP IN (Yellow) = To Interface box 12P Main Harness = To Screen and Car Side, GPS Harness = Interface box NAVI_IN, GPS Box 20P GPS Harness = GPS power to 12P Main Harness... - Page 10 NTV-DOC220 Installation Guide Navigation Honda 8" Connect Reverse Wire To connect OEM Camera #1) DIP SW #1 ON #2) Connect reverse wire Honda Odyssey Honda Pilot Honda Odyssey with OEM camera Honda Pilot with OEM camera 1) Under driver side fuse box 1) At the passenger side 2) Left green connector open Kick panel and find...
- Page 11 WEAK /NO GPS SIGNAL? Tips to Improve GPS Antenna Signal if vehicle equipped Metallized Windshield* “GPS MONITOR Tools” Exit IGO MAP by press SHUT DOWN BUTTON Console> SETUP GPS MONITOR Locate the Antenna with minimum 5 bars in dark blue or Gray bar (Always suggest mounting the GPS antenna on the roof) Press “!”...
- Page 12 PROPER GPS ANTENNA POSITION if vehicle equipped *Metallized Windshield SUV/Coupe Sedan TRUCK (Shown as Tundra) Alternatively, installer might choose to mount Antenna inside the headliner or inside vehicle using GPS monitor tools (see instruction). However, stay away from the windshield. * Windshields with metal particles can interfere with radio waves, dash-mount satellite radio receivers, and GPS receivers may be affected external transmitters and receivers may be required.
- Page 13 IGO PRIMO MAP PATH SETTING 1. Press Setup ‐> Navigate Setup 2. Press on the Folder Icon 3. Select the following path in Storage Card ‐> cyb_navi.exe 4. Press HOME button on the top left corner and press NAVIGATION 5. System should able to run into “IGO PRIMO”...
