The RGB PCM3.1 kit allows the user to add up to 3 video inputs and a backup camera input to
the factory touch screen radio in select Porsches with the PCM3.1 radio. This kit connects
behind the radio following a radio modification. The kit comes with an external toggle switch
and if desired, forced rear camera action is an option. This manual will provide the radio
modification procedure and vehicle installation instructions.
AV Input Harness
Remote
Sub-Board
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
RGB PCM3.1 Kit
(NTV-KIT420)
Overview

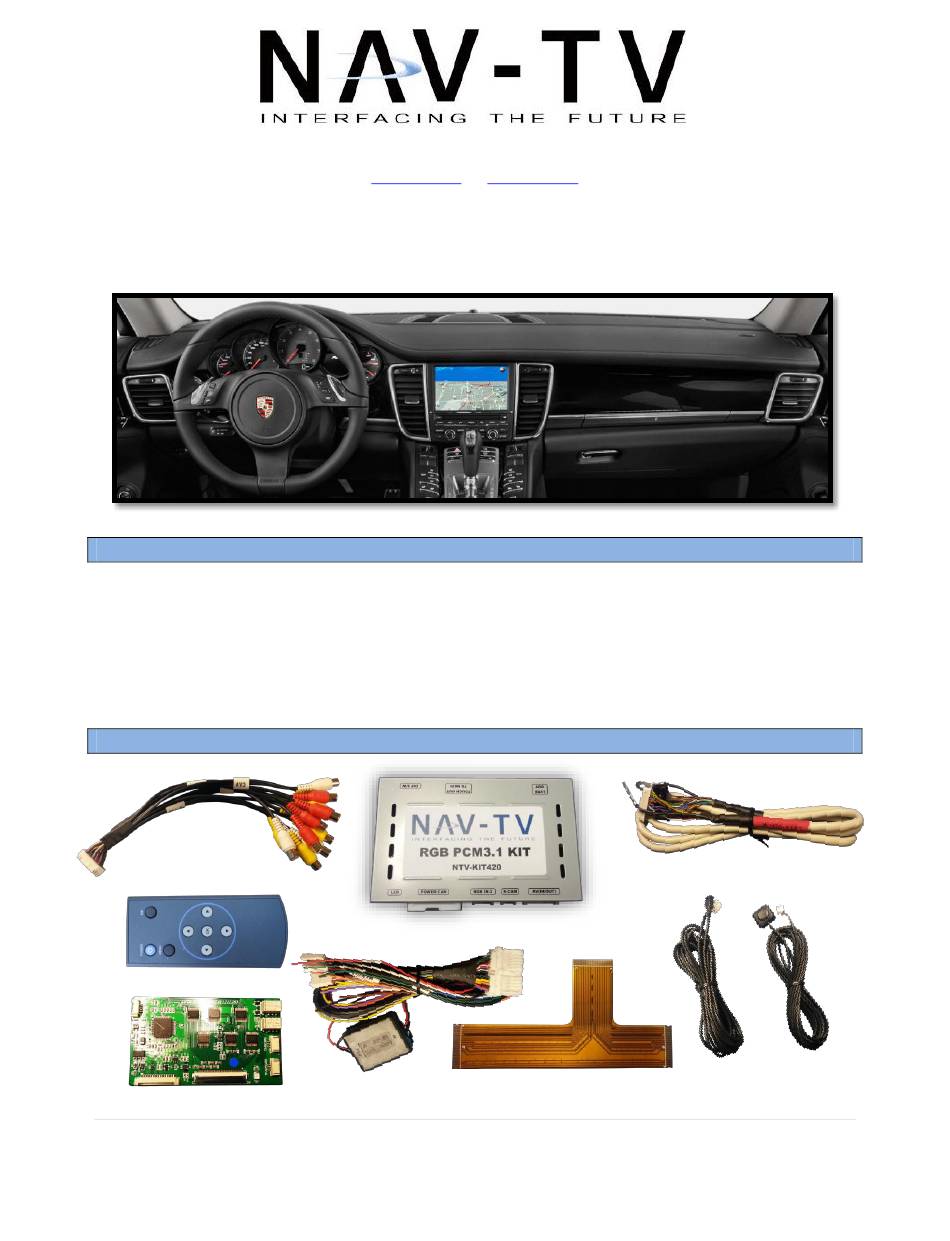

Kit Contents
RGB PCM3.1 Interface
Power Harness
LVDS Video cable
IR Eye
Ribbon T-Cable
Harness
BHM
12/2/13
NTV-Doc 112
Input
Toggle
Switch
1 |
P a g e
