• Always tighten the dial by hand.
Using a tool or other object to tighten the dial may crush the screw thread.
• Trim bracket band carefully so the cut end will not cause injury (see step 3 above).

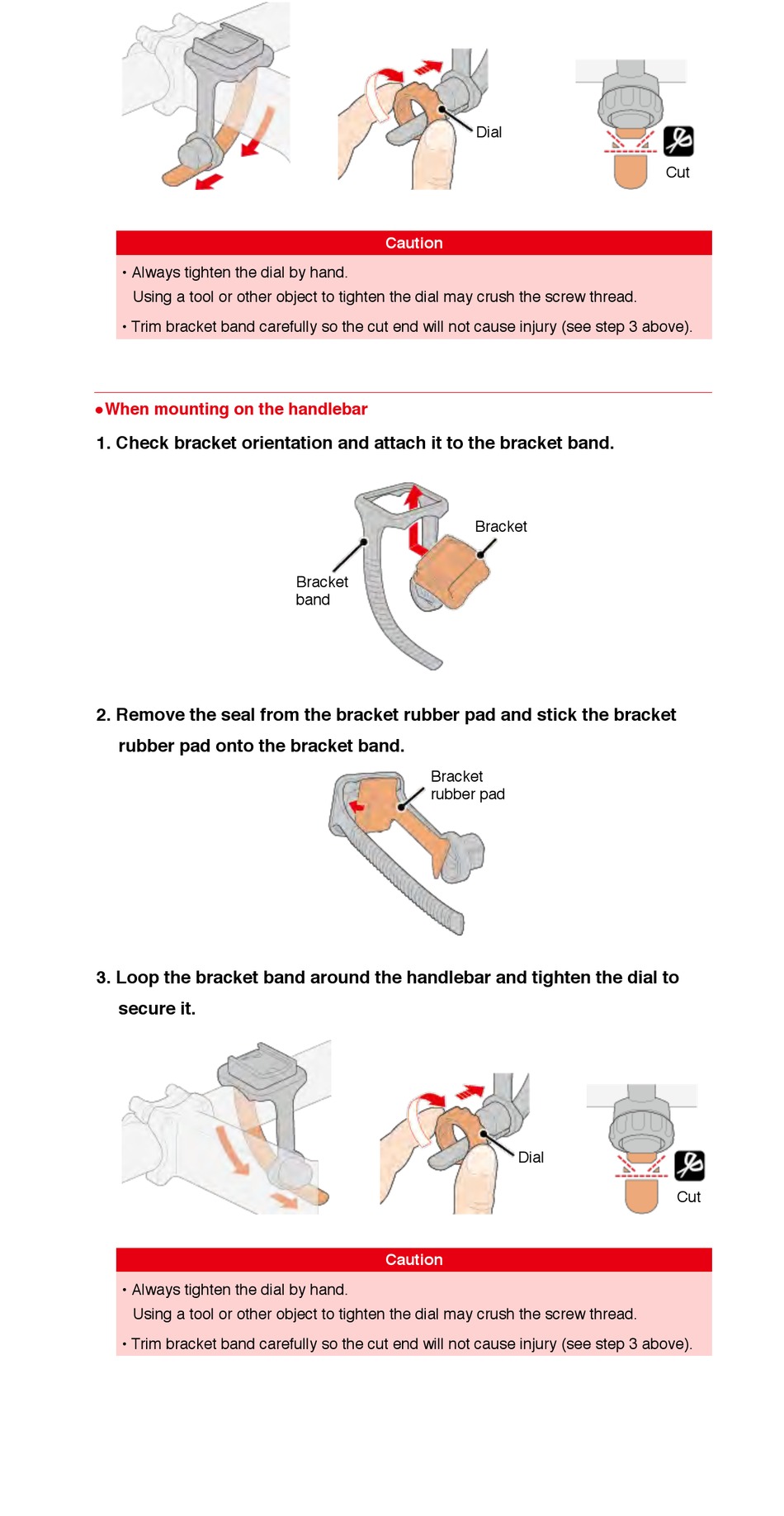

!When mounting on the handlebar
1. Check bracket orientation and attach it to the bracket band.
2. Remove the seal from the bracket rubber pad and stick the bracket
rubber pad onto the bracket band.
3. Loop the bracket band around the handlebar and tighten the dial to
secure it.
• Always tighten the dial by hand.
Using a tool or other object to tighten the dial may crush the screw thread.
• Trim bracket band carefully so the cut end will not cause injury (see step 3 above).
Caution
Bracket
band
Bracket
rubber pad
Caution
Dial
Bracket
Dial
Cut
Cut
