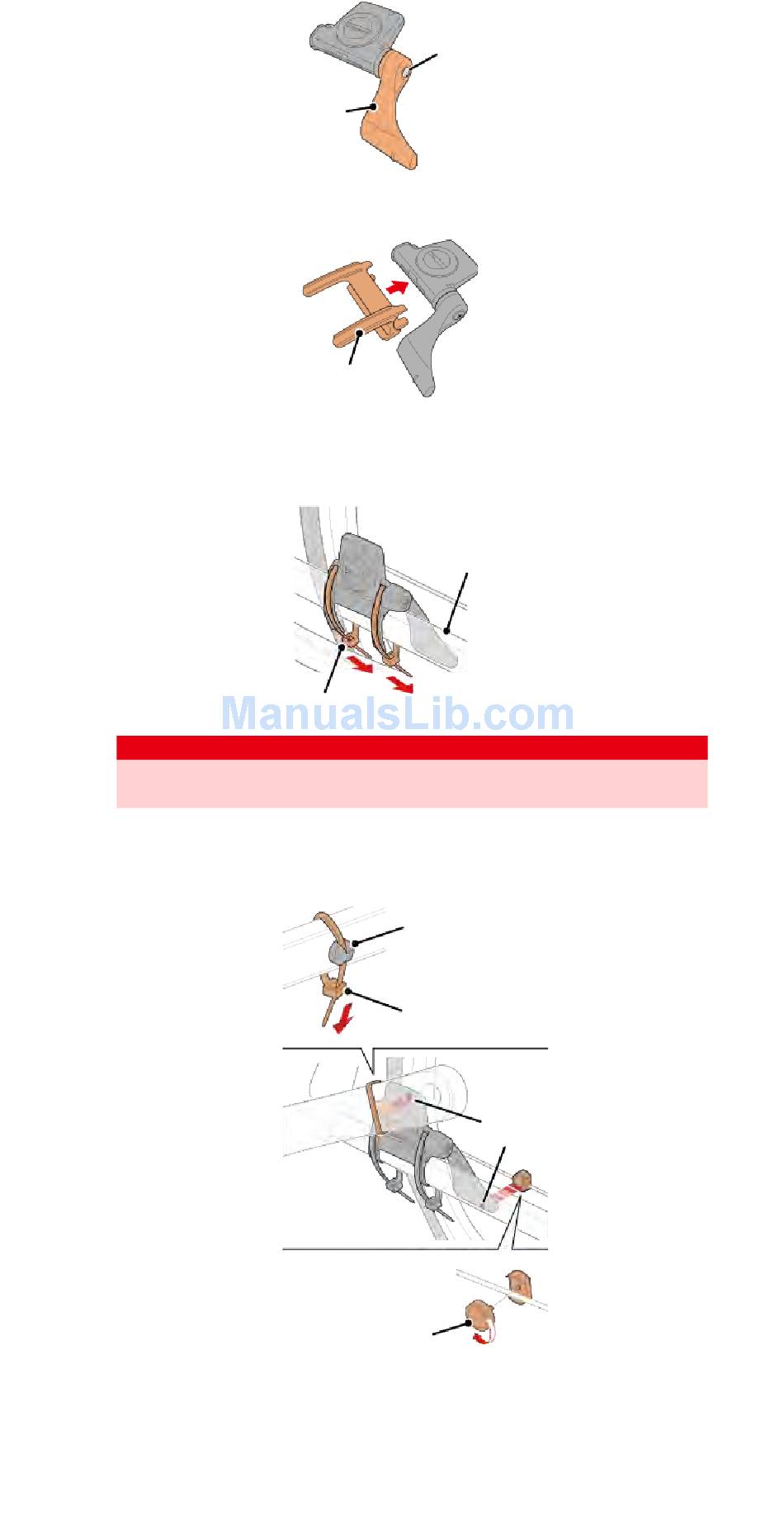

(2) Attach the sensor rubber pad to the sensor.
(3) Refer to the illustration and temporarily attach the sensor to the left chain stay with
nylon ties.
Do not fully tighten the nylon ties. Once the nylon ties are fully tightened they cannot
be removed.
2. Temporarily attach the magnet.
(1) Using a nylon tie, temporarily attach the cadence magnet to the inside of the left
crank arm so that it faces the cadence sensor zone.
(2) Rotate the sensor arm and temporarily attach the wheel magnet to a spoke facing
Sensor arm
Sensor
rubber pad
Nylon tie
Caution
Inside of the crank
Spoke
Wheel magnet
Sensor screw
left chain stay
Cadence
magnet
Nylon tie
Sensor
zone
