Placing the Overlay on a Flat Surface

After unpacking the overlay, place it face down and flat on a table of sufficient size to
accommodate it. Placing it on a table makes it easy to attach the SMART Pen Tray, make
cable connections to the Pen Tray, and adjust the icon strips (if necessary).

Adjusting the Optional Icon Strips

The SBPD includes three optional icon strips: the Display Control Strip, Custom Strip and Tool
Strip. If you have a Windows computer with an available serial port, you can use the Display
Control Strip to turn your plasma display on and off, select a different screen width and perform
other tasks associated with controlling the plasma display.
The Custom Strip and Tool Strip are available for both Windows and Macintosh computers.
The Custom Strip enables you to select functions for each icon and draw whatever icons you
want on the strip. The Tool Strip provides an alternative to the SMART Pen Tray, making a
wide range of touch, display and annotation functionality accessible from the SBPD frame area.
Please note that the position of the Custom strip may vary as shown below.
A
B
Custom Strip

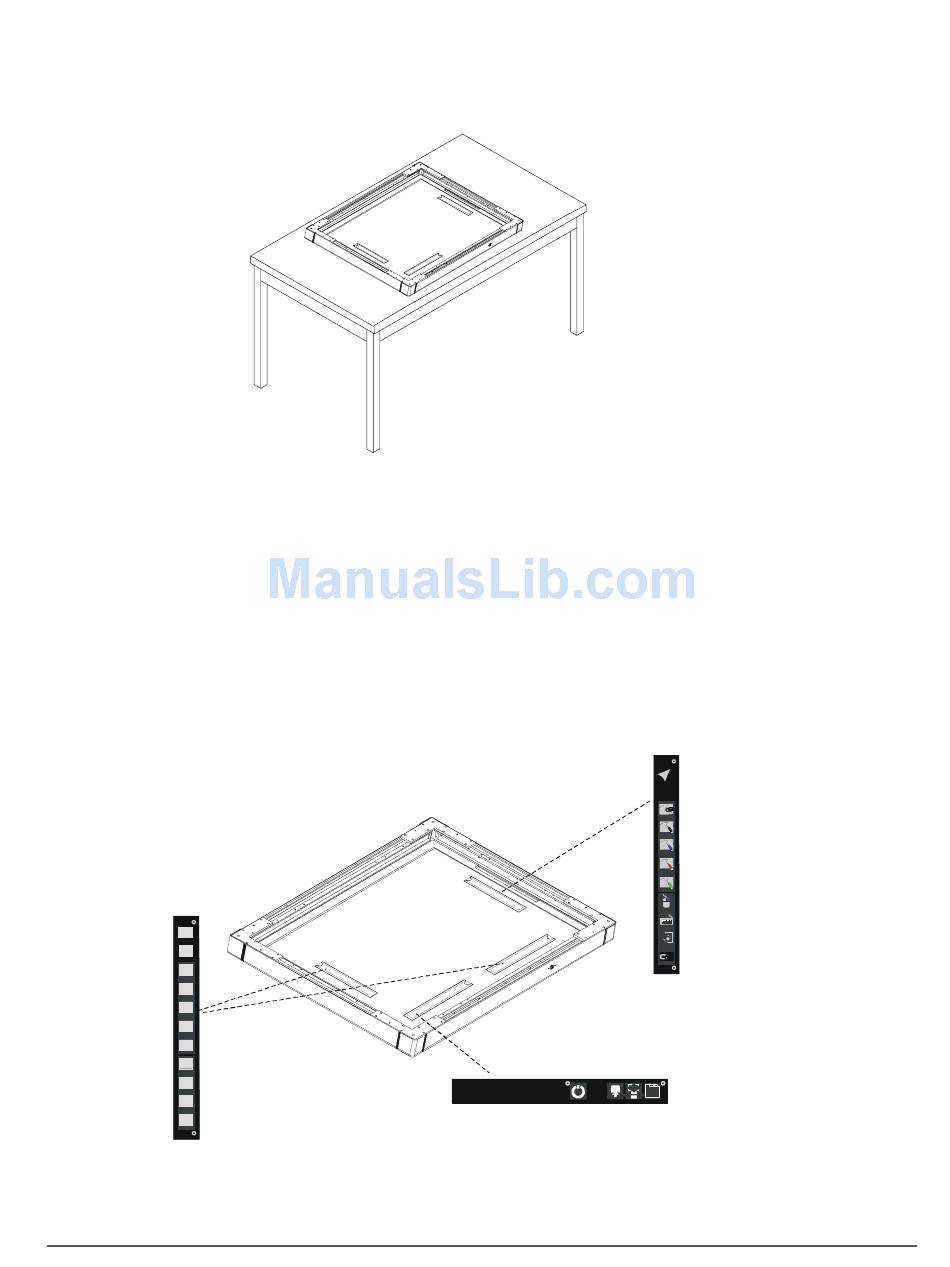

The Ideal Spot for Overlay Preparation
Location of the SBPD Icon Strips
SBPD Installation Guide
Tool Strip
A A B B
Display Control Strip
A
B
5
