3

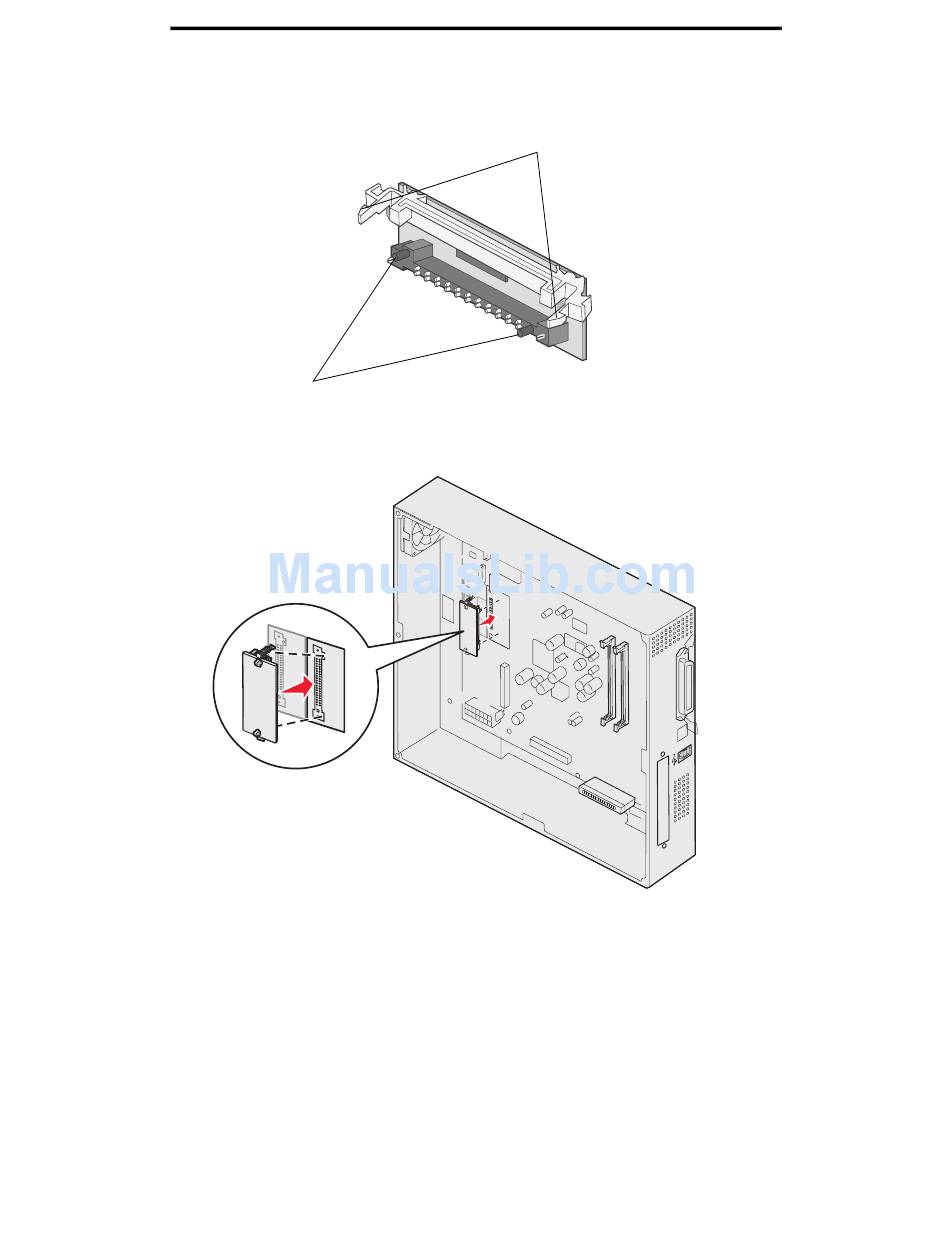

Holding the flash memory or firmware card by the locking clips, align the plastic pins on the card with the holes on
the system board.
4
Push the flash memory or firmware card firmly into place, and release the locking clips.
The entire length of the connector on the flash memory or firmware card must touch the system board and be
locked into the connector.
Be careful not to damage the connectors.

Installing a hard disk

Warning: Hard disks are easily damaged by static electricity and physical shock (such as dropping). Touch
something metal, such as the printer frame, before you touch the hard disk.
Installing and removing options
Pins
Installing a hard disk
30
Locking clips
