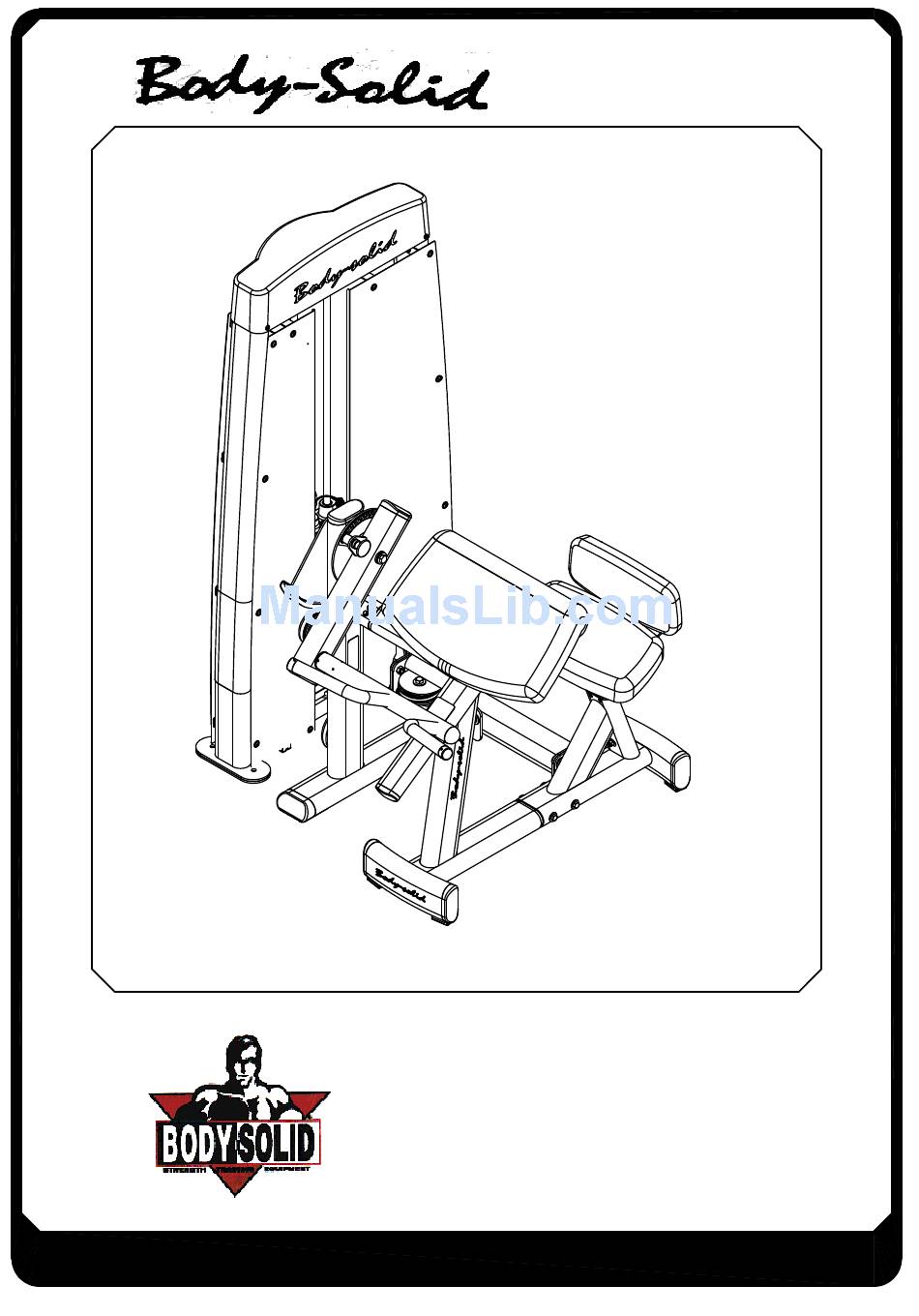

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DBTC.4 OWNER'S MANUAL...
- Page 2 DBTC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.5 (A2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (A3)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.1 (A4)HEX BOLT 5/16"X1"L PARTIAL QTY.12 (A5)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1 (A6)STEEL BUSHING 1/2"X 8.5X21L QTY.1 DBTC.4-122007 Page...
- Page 3 DBTC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.7 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.12 (B2)NYLON LOCK NUT 5/16" QTY.1 (C5)SPRING WASHER 5/16" QTY.12 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.8 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.6 (C3)5/16"(I.D.)FLAT WASHER 16 QTY.2 DBTC.4-122007 Page...
- Page 4 DBTC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20 (AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 (AA7)10LB PIN(8250-071) QTY.1 DBTC.4-122007 Page...
- Page 5 (CC2)M6(I.D.)FLAT WASHER 13 QTY.20 (AA8)ELASTIC BOLT QTY.1 (AA10)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC5)SPRING WASHER 3/8" QTY.1 (AA11)FIRM SHEATH(8890-046) QTY.1 (CC6)1/2"(I.D.)FLAT WASHER 25 QTY.2 (BB2)NYLON LOCK NUT1/2" QTY.3 (BB3)NYLON LOCK NUT M10 QTY.1 (CC1)1/2"(I.D.)FLAT WASHER 34 QTY.4 DBTC.4-122007 Page...
- Page 6 ------------------------------------------- [1PCS] (D14) 131X30 END CAP(9211-116) -----------------------------------------------[1PCS] -------------------------------------------[1PCS] (D15)3620mm STELL CABLE(FDBTCA) (D16) 3/4" SHAFT COLLAR(9211-046) --------------------------------------------[2PCS] (D17) 4" RUBBER DOUNT(9310-017) ---------------------------------------------[2PCS] (D18)TOP PLATE(8400-006) -------------------------------------------------------[1PCS] (D20)95X250 RUBBER PAD(9310-060) ---------------------------------------------[2PCS] (D21)DBTC FOR DGYM STEEL CABLE(FDBTCB) ------------------------------[1PCS] (D22)WEIGHT SELECTOR BAR(8210-042B) -----------------------------------[1PCS] 3620 DBTC.4-122007 Page...
-
Page 7: Parts Illustration
PARTS ILLUSTRATION A2 [1PCS] C [1PCS] B [1PCS] D [1PCS] F2 [1PCS] G1 [1PCS] H1 [1PCS] I [1PCS] J [1PCS] K [1PCS] L [1PCS] M [1PCS] 13CPTB 8312-062 9132-019 N [1PCS] O [1PCS] P [1PCS] 9122-038 9111-060 9440-162 DBTC.4-122007 Page... - Page 8 DBTC ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION AA[1PCS] AB[1PCS] 6610-002 8380-046 AC[1PCS] AD[1PCS] 8380-047 8380-048 AK[1PCS] AE[2PCS] 9211-111A 260158A 3/4"X1.6tX1407L AG[2PCS] AH[9PCS] 8313-144 8321-040 50.5 AJ[2PCS] AI[1PCS] 8321-040 8321-040 50.5 50.5 DBTC.4-122007 Page...
- Page 9 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed 1/2" Washer X2 1/2"X3/4"L HEX Bolt X2 A1X2 C1X2 C1X2 B1X2 M10X16L HEX Bolt X5 M10 Washer X5 DBTC.4-122007 Page...
- Page 10 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP2 assembled and completed M6X12L HEX Bolt X8 M6 Washer X8 1/2" Washer 1/2" X3-1/4"L HEX Bolt DBTC.4-122007 Page...
- Page 11 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed 1/2"X3/4"L HEX Bolt 6X6X45L Key 1/2" Washer 1/2" Washer 1/2"X3/4"L HEX Bolt 1/2"X3/4"L HEX Bolt 1/2" Washer DBTC.4-122007 Page...
- Page 12 Detail View Above shows STEP 4 assembled and completed 5/16"X5/16"L Allen Head Bolt X4 1/2" Washer 1/2"x3/4"L HEX Bolt 1/2" Washer 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt 1/2" Washer 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt DBTC.4-122007 Page...
- Page 13 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed A4X4 C5X4 C4X4 C4X4 C5X4 A4X4 C4X4 C5X4 A4X4 3/8" Spring Washer 3/8"x3/4"L Round Inner Head DBTC.4-122007 Page...
- Page 14 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed M6X12 Round Bolt X4 M6 Washer X4 AGx2 M10X25L Cone Bolt x8 D20x2 DBTC.4-122007 Page...
- Page 15 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed D16X2 AEX2 D17X2 DBTC.4-122007 Page...
- Page 16 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 8 assembled and completed DBTC.4-122007 Page...
- Page 17 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed 1/2"X1"L HEX Bolt 1/2" Washer A1X3 C2X3 B1X3 C2X3 DBTC.4-122007 Page...
- Page 18 DBTC ASSEMBLY INSTRUCTIONS Detail View WEIGHT STACK CABLE AA10 Above shows STEP 10 assembled and completed M4 SCREW AA11 Selector Bar Detail View 1/2" Washer 1/2" Round End Cap Washer 1/2"x1-1/2"L HEX Bolt DBTC.4-122007 Page...
- Page 19 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed M6X12L Round Bolt X21 M6 Washer X4 M6 Washer X21 M6X20L Round Bolt X4 AA6X4 DBTC.4-122007 Page...
- Page 20 DBTC ASSEMBLY INSTRUCTIONS Above shows STEP 12 assembled and completed D21. 1/2"X1"L HEX Bolt 1/2" Washer DBTC.4-122007 Page...
- Page 21 DBTC ASSEMBLY INSTRUCTIONS DGYM DBTC DBTC.4-122007 Page...
