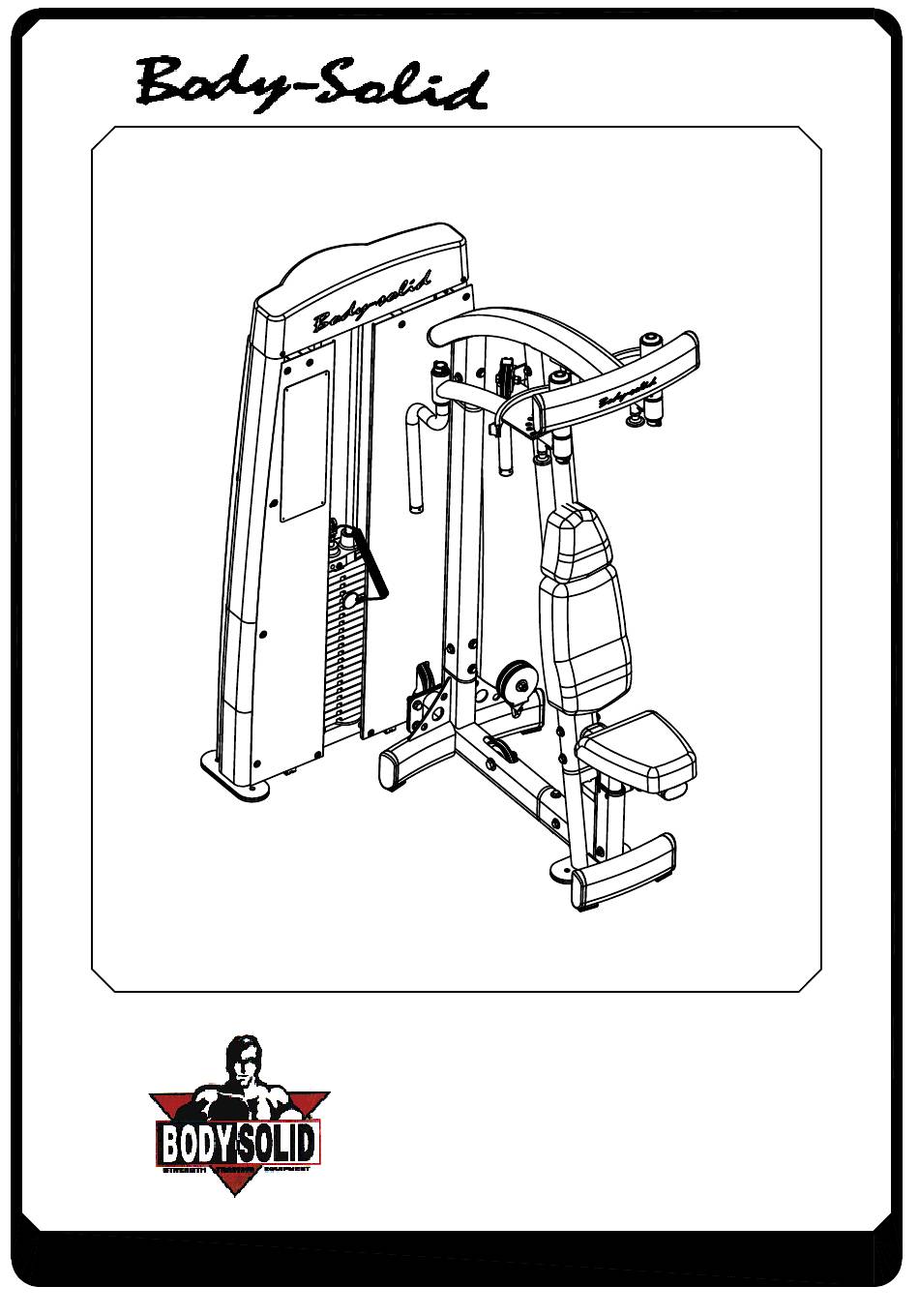

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DPEC.3 OWNER'S MANUAL...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e ...
- Page 3 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
- Page 4 HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x1 1/2"L PARTIAL THREAD QTY.4 (A2)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1 (A3)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.1 (A4)ROUND ALLEN HEAD 5/16"x1 1/2"L PARTIAL THREAD QTY.4 (A5)HEX BOLT 5/16"x2 1/2"L PARTIAL THREAD QTY.2 Page DPEC.3-072017...
-
Page 5: Hardware Illustration
DPEC ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)HEX BOLT 5/16"x3 1/4"L PARTIAL THREAD QTY.4 Page DPEC.3-072017... - Page 6 (A11)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.20 Optional Purchase (A9)HEX BOLT M4X65L PARTIAL THREAD QTY.2 TOP CAP(9211-111) (C8)M4(I.D.)FLAT WASHER 12 QTY.2 TOP CAP(9211-119) "M4X65 ROUND BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP Page DPEC.3-072017...
- Page 7 DPEC ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (A12)ELASTIC BOLT (F920003) QTY.1 (A13)10LB PIN (8250-071) QTY.1 (A15)ROUND ALLEN HEAD 5/32"x1/4"L PARTIAL THREAD QTY.4 Page DPEC.3-072017...
- Page 8 DPEC ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (B1)NYLON LOCK NUT 1/2" QTY.6 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.4 (C2)5/16"(I.D.)FLAT WASHER 24 QTY.6 (C3)5/16" SPRING WASHER QTY.6 (C10)1/2"(I.D.)FLAT WASHER 25 QTY.8 Page DPEC.3-072017...
- Page 9 DPEC ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (B4)NYLON LOCK NUT 1/2" QTY.3 (C5)1/2"(I.D.)FLAT WASHER 34 QTY.4 (C6)3/8" SPRING WASHER QTY.1 (C7)M6(I.D.)FLAT WASHER 13 QTY.20 (C9)1/2"(I.D.)FLAT WASHER 25 QTY.2 Page DPEC.3-072017...
- Page 10 DPEC ASSEMBLY INSTRUCTIONS Selector Rod HARDWARE ILLUSTRATION (A16)ROUND ALLEN HEAD M10X30L PARTIAL THREAD QTY.1 (A17)FIRM SHEATH(8890-046) QTY.1 (B5)NYLON LOCK NUT M10 QTY.1 Page DPEC.3-072017...
- Page 11 D8.2"X2" RUBBER CANE CAP(9214-002)------------------------[1PCS] 3/4" SHAFT COLLAR(9211-046)------------------------------[2PCS] D10. 4" RUBBER DOUNT(9310-017)-----------------------------[2PCS] D11.95X250 RUBBER PAD(9310-060)----------------------------[3PCS] D12. 117 PULLEY(9213-010B)-------------------------------------[7PCS] D14.TOP PLATE(8400-006)------------------------------------------[1PCS] D15.3015mm STEEL CABLE(FDPECA)---------------------------[1PCS] D16.3220mm STEEL CABLE(FDPECB)---------------------------[1PCS] D18.DPEC For DGYM Steel Cable(FDPECC)-------------------[1PCS] D19.WEIGHT SELECTOR BAR(8210-042B)---------------------[1PCS] 3220 3015 3015 Page DPEC.3-052019...
- Page 12 DPEC ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A[1PCS] B[1PCS] F[1PCS] C[2PCS] D[2PCS] G[1PCS] H1[2PCS] Page DPEC.3-072017...
- Page 13 DPEC ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET I[1PCS] J[1PCS] K1[2PCS] M[1PCS] L[1PCS] 8230-012 9111-058 9111-057 N[1PCS] AA[2PCS] 9121-055 8331-015 13.5 75.5 Page DPEC.3-072017...
- Page 14 ASSEMBLY INSTRUCTIONS FRAME PARTS ILLUSTRATION SHEET P[1PCS] O[1PCS] 8380-047 8380-046 Q[1PCS] R[2PCS] 8380-048 3/4"X1425L Z[1PCS] U[2PCS] V[9PCS] 9211-111A 8313-144 8321-040 both side 50.5 W[1PCS] 8321-040 T[1PCS] one side 6610-002 50.5 X[2PCS] Y[1PCS] 8321-040 9440-164 one side 50.5 Page DPEC.3-072017...
- Page 15 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed M10 WASHER Ø27 X6 M10X16L HEX BOLT X6 Page DPEC.3-072017...
- Page 16 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed M10X16L HEX BOLT X12 M10 WASHER Ø27 X12 STEP 1 Page DPEC.3-072017...
- Page 17 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed M10X16 HEX BOLT X11 M10 WASHER Ø27 X11 STEP 2 Page DPEC.3-072017...
- Page 18 ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed 1/2"X2 1/4" HEX BOLT X2 1/2" WASHER 25 X2 # Repeat assembly for left side pulley 1/2" NYLON LOCK NUT X2 1/2" WASHER 25 X2 STEP 3 Page DPEC.3-072017...
- Page 19 DPEC ASSEMBLY INSTRUCTIONS During the assembly process, if D2 will block the process, please remove D3 first and then assembling rest of parts. Above shows STEP 5 assembled and completed A4x2 A4x2 Page DPEC.2-072017...
- Page 20 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed STEP 5 Page DPEC.3-052019...
- Page 21 DPEC ASSEMBLY INSTRUCTIONS Cable Configuration Diagram 11.1 Page DPEC.3-072017...
- Page 22 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed STEP 6 Page DPEC.3-072017...
- Page 23 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed DPEC single weight stack assembly instructions M10X25L CONE BOLT X8 Page DPEC.3-072017...
- Page 24 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed STEP 8 Page DPEC.3-072017...
- Page 25 ASSEMBLY INSTRUCTIONS DPEC Above shows STEP 10 assembled and completed STEP 9 Page DPEC.3-072017...
- Page 26 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed assemble direction Ø10 cable wire head Selector Rod DETAIL VIEW STEP 10 Page DPEC.3-072017...
- Page 27 DPEC ASSEMBLY INSTRUCTIONS Above shows STEP12 assembled and completed M6 WASHER Ø13 X4 M6X20L ROUND BOLT X4 STEP 11 M6 WASHER Ø19 X23 STEP 7 M6X12 ROUND BOLT X23 Page DPEC.3-072017...
- Page 28 DPEC ASSEMBLY INSTRUCTIONS DPEC DGYM DPEC Page DPEC.3-072017...
- Page 29 DPEC ASSEMBLY INSTRUCTIONS Cable to match illustration assemble direction Ø10 cable wire head Cable FOR DGYM only(D18) Selector Rod DETAIL VIEW Page DPEC.3-072017...
- Page 30 ASSEMBLY INSTRUCTIONS Anti-cable Break Up Supplement Page BA[2PCS] 8331-015 13.5 PULLEY(9213-010B) NYLON LOCK NUT 1/2" 1/2"(I.D.)FLAT WASHER DFA/DFD HEX BOLT 1/2"x2 1/4"L 1/2"(I.D.)FLAT WASHER DF-042017 Page...
