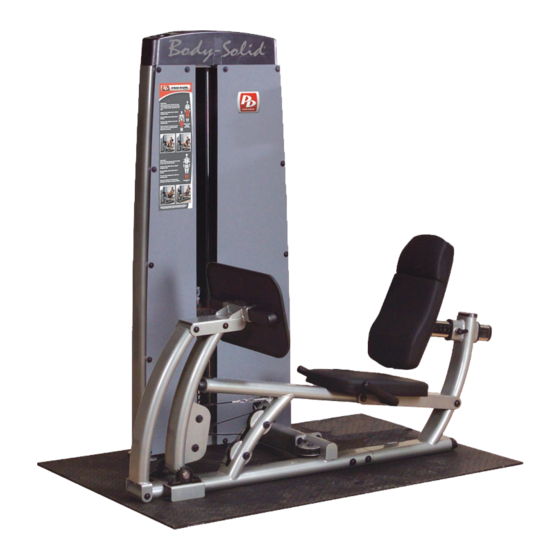

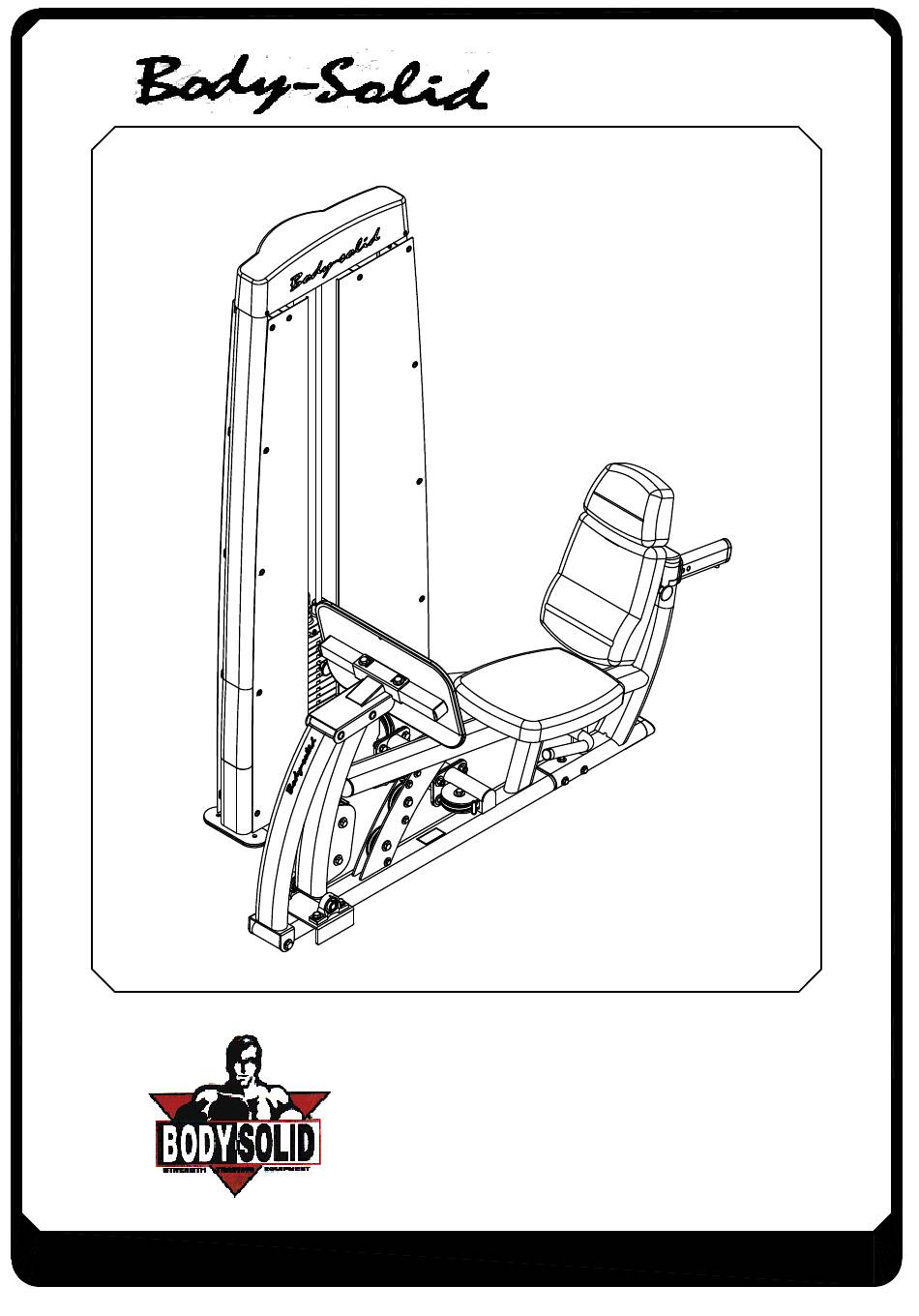

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DCLP.3 OWNER'S MANUAL...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e ...
- Page 3 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
- Page 4 ASSEMBLY INSTRUCTIONS DCLP HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.8 (A2)HEX BOLT 1/2"X1-3/4"L PARTIAL QTY.4 (A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.2 (A4)HEX BOLT 1/2"X2-1/2"L PARTIAL QTY.2 (A5)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2 DCLP.3-012016 Page...
- Page 5 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A6)HEX BOLT 1/2"X5-3/4"L PARTIAL QTY.2 (A7)HEX BOLT 3/8"X2"L PARTIAL QTY.4 (A8)HEX BOLT 5/16"X1"L PARTIAL QTY.4 (A9)HEX BOLT 5/16X3-1/4"L PARTIAL QTY.2 DCLP.3-012016 Page...
- Page 6 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.20 (C3)3/8"(I.D.)FLAT WASHER 27 QTY.8 (B2)NYLON LOCK NUT 3/8" QTY.4 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.6 (C5)SPRING WASHER 5/16" QTY.6 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.24 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.16 DCLP.3-012016 Page...
- Page 7 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.4 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEAD 3/8"X3-1/2"L PARTIAL QTY.1 (AA6)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.24 (AA7)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 DCLP.3-012016 Page...
- Page 8 (AA11)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC3)M6(I.D.)FLAT WASHER 13 QTY.24 (AA12)FIRM SHEATH(8890-046) QTY.1 (CC6)SPRING WASHER 3/8" QTY.1 (AA13)ROUND INNER HEX SCREW M10X25L PARTIAL QTY.1 (CC7)1/2"(I.D.)FLAT WASHER 25 QTY.2 (CC8)M10(I.D.)FLAT WASHER 20 QTY.2 (BB2)NYLON LOCK NUT1/2" QTY.4 DCLP.3-012016 Page...
- Page 9 ASSEMBLY INSTRUCTIONS DCLP HARDWARW ILLUSTRATION (BB3)NYLON LOCK NUT3/8" QTY.1 (BB4)NYLON LOCK NUT M10 QTY.2 DCLP.3-012016 Page...
- Page 10 (D10) 4"RUBBER DOUNT(9310-017) -----------------------------------------------[2PCS] (D11)TOP PLATE(8400-006) --------------------------------------------------------- [1PCS] (D13)95X250 RUBBER PAD(9310-060) -------------------------------------------- [2PCS] (D14)2865 STEEL CABLE(FDCLPA2) ---------------------------------------------- [1PCS] (D15)3705 STEEL CABLE(FDCLPB) ----------------------------------------------- [1PCS] -------------------------------- [1PCS] (D16)DLP FOR DGYM STEEL CABLE(FDCLPC) (D17)WEIGHT SELECTOR BAR(8210-042B) ------------------------------------ [1PCS] 3705 2865 DCLP.3-012016 Page...
-
Page 11: Parts Illustration
PARTS ILLUSTRATION A [1PCS] C [1PCS] B [1PCS] D [1PCS] E[1PCS] F [1PCS] G [1PCS] H [1PCS] I [1PCS] Direction J [1PCS] K [1PCS] L [1PCS) 9111-055 9122-040 Direction M [2PCS) N1 [1PCS) O [1PCS) 8510-005 6640-021 9440-160 DCLP.3-012016 Page... - Page 12 DCLP ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION AA[1PCS] AB[1PCS] 6610-003 8380-051 AC[1PCS] AD[1PCS] 8380-049 8380-050 AK[1PCS] AE[2PCS] 9211-111A 260159 ( 3/4"X1932L) AG[2PCS] AH[11PCS] 8313-144 8321-040 50.5 AI[1PCS] AJ[2PCS] 8321-040 8321-040 50.5 50.5 DCLP.3-012016 Page...
- Page 13 DCLP ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed M10X25L HEX BOLT X2 M10 Washer X2 FLAT ALLEN HEAD M12X20L X2 DCLP.3-012016 Page...
- Page 14 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 2 assembled and completed M10 Washer X4 M10X16L Round Bolt X4 5/8"X129L Shaft X2 M10 Washer X6 M10X16L HEX BOLT X6 3/4"X143L Shaft 1/2"X3/4"L HEX Bolt X2 1/2" Washer X2 DCLP.3-012016 Page...
- Page 15 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 3 assembled and completed DCLP.3-012016 Page...
- Page 16 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 4 assembled and completed 5/16" Spring Washer 5/16"X3/4"L Round lnner Head DCLP.3-012016 Page...
- Page 17 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 5 assembled and completed D8X2 DCLP.3-012016 Page...
- Page 18 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 6 assembled and completed AJX2 AGX2 M10X25L Cone Bolt X8 D13X2 DCLP.3-012016 Page...
- Page 19 ASSEMBLY INSTRUCTIONS DCLP NOTE ： FINGER TIGHTEN PULLEY FASTENERS PULLEYS WILL BE Above shows STEP 7 REMOVED TO INSTALL CABLE assembled and completed D9X2 AEX2 CC3X20 AA6X20 D10X2 DCLP.3-012016 Page...
- Page 20 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 8 assembled and completed DCLP.3-012016 Page...
- Page 21 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 9 assembled and completed DCLP.3-012016 Page...
-
Page 22: Detail View
DCLP ASSEMBLY INSTRUCTIONS D14. D15. Above shows STEP 10 assembled and completed Detail View WEIGHT STACK CABLE AA11 AA12 M4 SCREW Selector Rod AA13 Detail View C3X4 B2X4 1/2"x1-3/4"L HEX Bolt 1/2" Washer A3X2 DCLP.3-012016 Page... - Page 23 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 11 assembled and completed M6X12L Round Bolt X25 M6 Washer X25 M6 Washer X4 M6X20L Round Bolt X4 AA7X4 DCLP.3-012016 Page...
- Page 24 DCLP ASSEMBLY INSTRUCTIONS Cable to match illustration Double strength (D9) Cable for DGYM only(D16) DCLP.3-012016 Page...
- Page 25 DCLP ASSEMBLY INSTRUCTIONS DGYM DCLP DCLP.3-012016 Page...
- Page 26 ASSEMBLY INSTRUCTIONS Anti-cable Break Up Supplement Page BA[2PCS] 8331-015 13.5 PULLEY(9213-010B) NYLON LOCK NUT 1/2" 1/2"(I.D.)FLAT WASHER DFA/DFD HEX BOLT 1/2"x2 1/4"L 1/2"(I.D.)FLAT WASHER DF-042017 Page...
