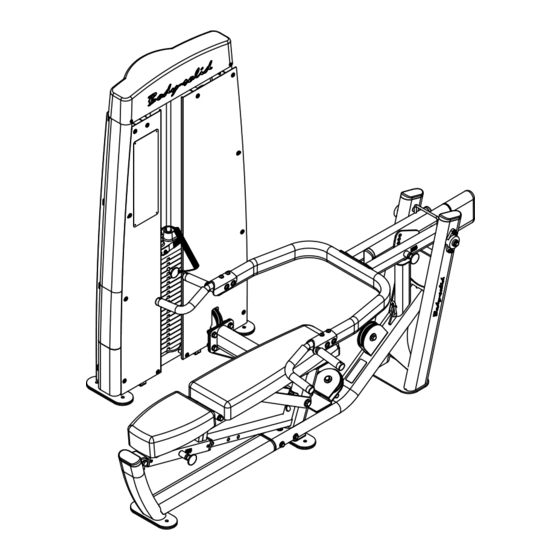

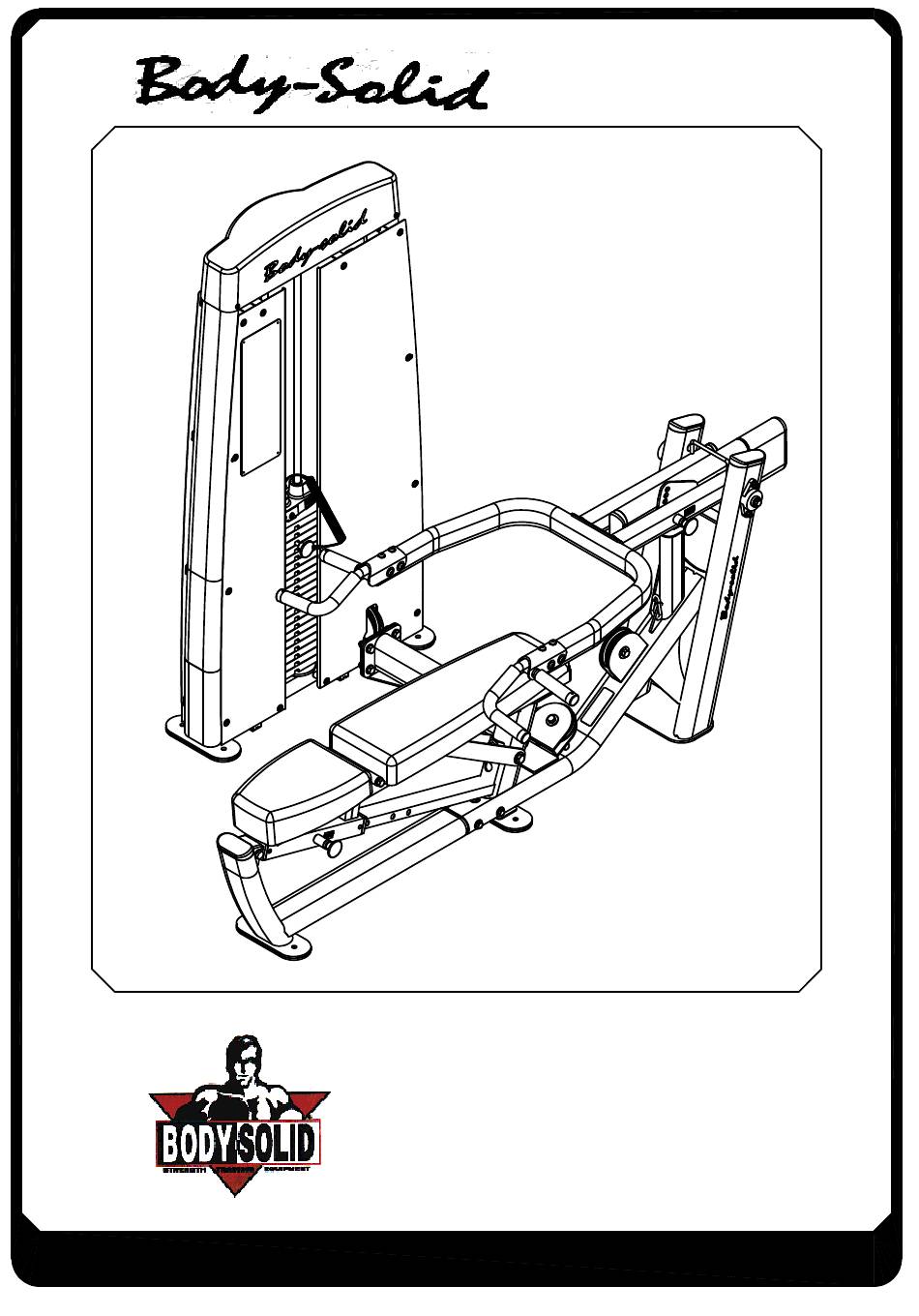

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DPRS.3 OWNER'S MANUAL...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e ...
- Page 3 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
- Page 4 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x1 1/2"L PARTIAL THREAD QTY.7 (A2)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.1 (A3)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1 (A4)HEX BOLT 1/2"x3 1/2"L PARTIAL THREAD QTY.1 (A5)HEX BOLT 1/2"x2 3/4"L PARTIAL THREAD QTY.1 Page DPRS.3-112008...
- Page 5 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)HEX BOLT 1/2"x4 1/2"L PARTIAL THREAD QTY.1 (A7)HEX BOLT 1/2"x4 3/4"L PARTIAL THREAD QTY.1 (A8)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.1 (A9)HEX BOLT 1/2"x7"L PARTIAL THREAD QTY.1 (A10)HEX BOLT 1/2"x8 1/2"L PARTIAL THREAD QTY.1 Page DPRS.3-112008...
- Page 6 DPRS ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A13)HEX BOLT 5/16"x1"L PARTIAL THREAD QTY.3 (A15)HEX BOLT 5/16"x2 1/2"L PARTIAL THREAD QTY.4 (A27)ROUND ALLEN HEAD M10X80L PARTIAL THREAD QTY.4 Page DPRS.3-062010...
- Page 7 (A19)HEX BOLT 3/8"x3 1/2"L PARTIAL THREAD QTY.1 (A20)ELASTIC BOLT QTY.1 Optional Purchase TOP CAP(9211-111) (A17)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2 TOP CAP(9211-119) (C12)M4(I.D.)FLAT WASHER 12 QTY.2 "M4X65 ROUND BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP Page DPRS.3-112008...
- Page 8 DPRS ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (A21)10LB PIN (8250-071) QTY.1 (A23)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.20 (A24)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4 (A25)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (A26)FIRM SHEATH(8890-046) QTY.1 Page DPRS.3-112008...
-
Page 9: Hardware Illustration
(B1)NYLON LOCK NUT 1/2" QTY.14 (B8)NYLON LOCK NUT M10 QTY.4 (C5)5/16"(I.D.)FLAT WASHER 18 QTY.7 (C6)5/16" SPRING WASHER QTY.7 (C1)1/2"(I.D.)FLAT WASHER 25 QTY.14 (B7)NYLON LOCK NUT 1/2"X8H QTY.1 (C2)1/2"(I.D.)FLAT WASHER 34 QTY.15 (C14)M10(I.D.)FLAT WASHER 19 QTY.4 Page DPRS.3-062017... - Page 10 FRAME HARDWARE ILLUSTRATION (B4)NYLON LOCK NUT 1/2" QTY.4 (C10)3/8" SPRING WASHER QTY.1 (B5)NYLON LOCK NUT 3/8" QTY.1 (C11)M6(I.D.)FLAT WASHER 13 QTY.20 (B6)NYLON LOCK NUT M10 QTY.1 (C13)1/2"(I.D.)FLAT WASHER 25 QTY.2 (C8)1/2"(I.D.)FLAT WASHER 34 QTY.6 (C9)3/8"(I.D.)FLAT WASHER 19 QTY.2 Page DPRS.3-112008...
- Page 11 3/4" SHAFT COLLAR(9211-046)---------------------------------[2PCS] 4" RUBBER DOUNT(9310-017)----------------------------------[2PCS] D10.95X250 RUBBER PAD(9310-060)--------------------------------[4PCS] D11.40X70 FRICTION TAPE(9440-068)------------------------------[2PCS] D12.20X120 FRICTION TAPE(9440-083)----------------------------[2PCS] D13. 117 PULLEY(9213-010B)-----------------------------------------[7PCS] D14.WEIGHT SELECTOR BAR(8210-042B)-------------------------[1PCS] D15.TOP PLATE(8400-006)----------------------------------------------[1PCS] D16.2375mm STEEEL CABLE(FDPRSA)----------------------------[1PCS] D17.2615mm STEEL CABLE(FDPRSB)------------------------------[1PCS] D18.DPRS For DGYM Steel Cable(FDPRSC)-----------------------[1PCS] D19.95X250 RUBBER PAD(9310-061)--------------------------------[1PCS] 2615 2615 2375 Page DPRS.3-112008...
- Page 12 DPRS ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET B[1PCS] C[1PCS] A1[1PCS] long F1[1PCS] E1[1PCS] D1[1PCS] long G[1PCS] H[1PCS] I[1PCS] L[1PCS] J1[1PCS] M[1PCS] K[1PCS] Page DPRS.3-112008...
- Page 13 DPRS ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET Q[2PCS] N[1PCS] O[1PCS] P[1PCS] 8220-136 8510-040 8230-009 6640-001 20X355L T[1PCS] S[1PCS] R[1PCS] 9170-002 9121-056 9111-059 Page DPRS.3-112008...
- Page 14 DPRS ASSEMBLY INSTRUCTIONS FRAME PARTS ILLUSTRATION SHEET V[1PCS] U[1PCS] 8380-048 8380-046 W[1PCS] 8380-047 X[2PCS] 3/4"X1410L Z[2PCS] AG[1PCS] 8313-144 9211-111A AD[9PCS] 8321-040 both side 50.5 AE[1PCS] AA[1PCS] 8321-040 6610-002 one side 50.5 AF[2PCS] 8321-040 AC[1PCS] one side 9440-167 50.5 Page DPRS.3-112008...
- Page 15 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed D11 D11 M10X16L HEX BOLT X6 M10 WASHER X6 Page DPRS.3-112008...
- Page 16 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed C1 A4 Page DPRS.3-112008...
- Page 17 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed Page DPRS.3-112008...
- Page 18 ASSEMBLY INSTRUCTIONS DPRS Above shows STEP 4 assembled and completed B8 C14 M10X20L HEX BOLT X2 M10 WASHER X2 DPRS.3-062017 Page...
- Page 19 DPRS ASSEMBLY INSTRUCTIONS assemble direction Above shows STEP 5 assembled and completed M12X65L ROUND ALLEN HEAD X2 3/8"X3/4" ROUND BOLT X12 3/8" WASHER 19 X4 3/8" WASHER 27 X8 Page DPRS.3-112008...
- Page 20 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed Page DPRS.3-112008...
- Page 21 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed M10X25L CONE BOLT X8 Page DPRS.3-112008...
- Page 22 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed Page DPRS.3-112008...
- Page 23 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed Page DPRS.3-112008...
- Page 24 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed Page DPRS.3-112008...
- Page 25 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed B7 C2 Page DPRS.3-112008...
- Page 26 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 12 assembled and completed Cable to match illustration WEIGHT STACK CABLE M4 SCREW Selector Bar DETAIL VIEW 16.1 Page DPRS.3-112008...
- Page 27 DPRS ASSEMBLY INSTRUCTIONS Above shows STEP 12 assembled and completed M6 WASHER X4 M6X20L ROUND BOLT X4 M6 WASHER M6X12L ROUND BOLT Page DPRS.3-112008...
- Page 28 DPRS ASSEMBLY INSTRUCTIONS DGYM DPRS Page DPRS.3-112008...
- Page 29 DPRS ASSEMBLY INSTRUCTIONS Cable to match illustration Double strength(D9) Cable For DGYM only (D18) Page DPRS.3-112008...
- Page 30 ASSEMBLY INSTRUCTIONS Anti-cable Break Up Supplement Page BA[2PCS] 8331-015 13.5 PULLEY(9213-010B) NYLON LOCK NUT 1/2" 1/2"(I.D.)FLAT WASHER DFA/DFD HEX BOLT 1/2"x2 1/4"L 1/2"(I.D.)FLAT WASHER DF-042017 Page...
