Page 1

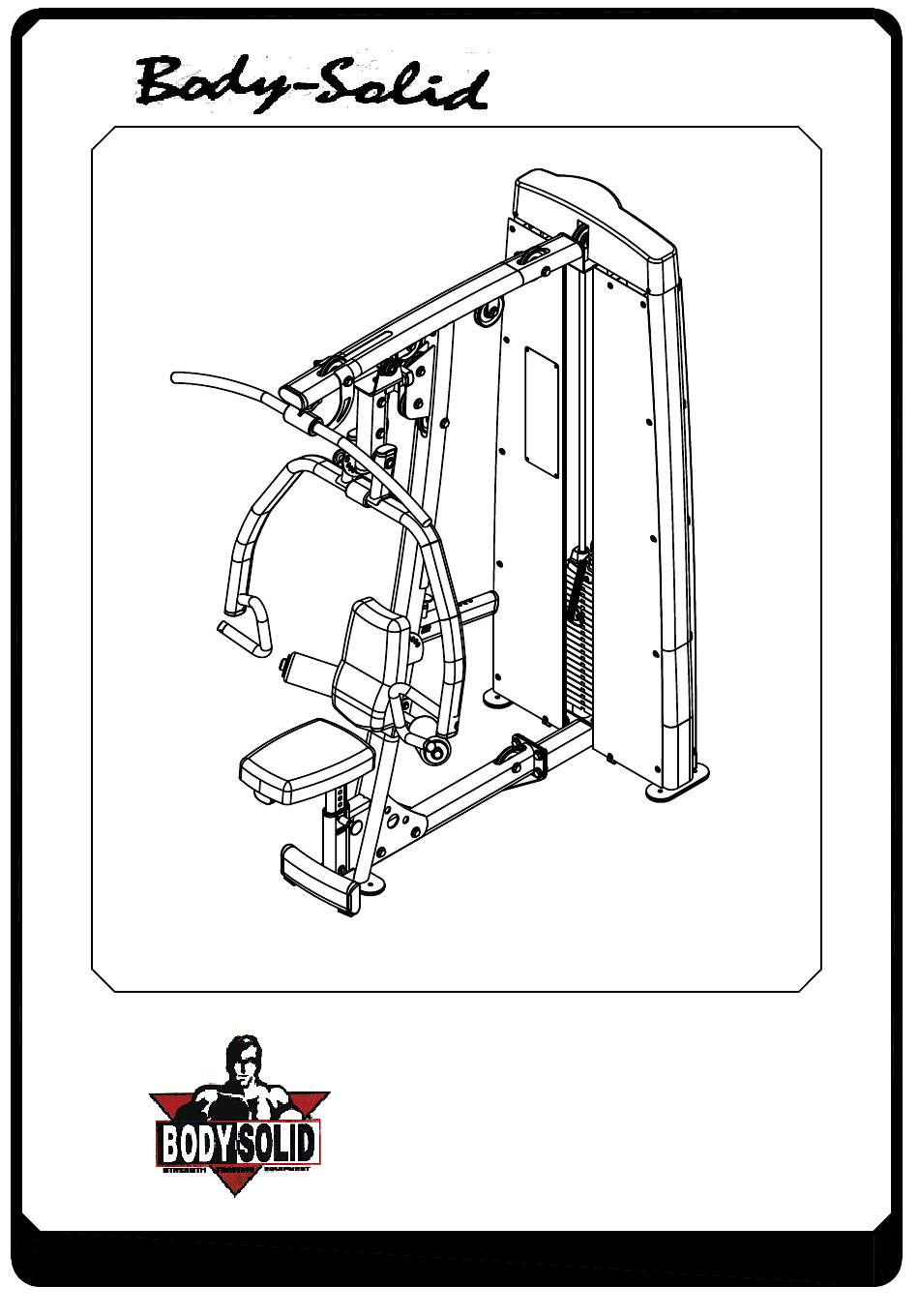

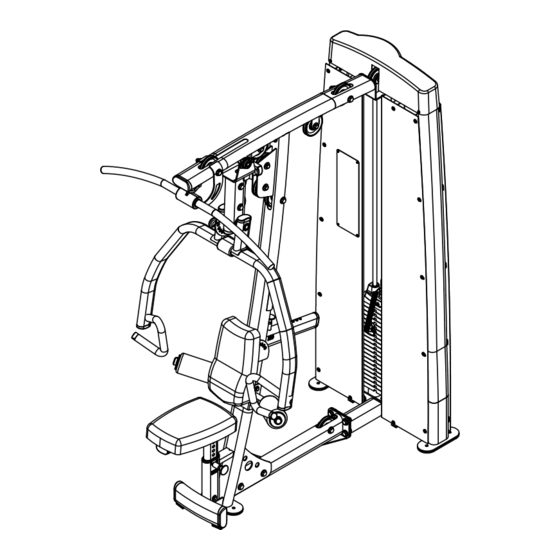

BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DPLS.4 OWNER'S MANUAL...
Page 2
W a r n i n g , S a f e t y & M a i n t e n a n c e ...
Page 3
I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Page 6
(A15)HEX BOLT 1/2"x4 1/4"L PARTIAL THREAD QTY.1 Optional Purchase (A13)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2 TOP CAP(9211-111) (C9)M4(I.D.)FLAT WASHER 12 QTY.2 TOP CAP(9211-119) "M4X65 ROUND BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP Page DPLS.4-112008...
Page 7
DPLS ASSEMBLY INSTRUCTIONS FRAME HARDWARE ILLUSTRATION (A16)ELASTIC BOLT QTY.1 (A17)10LB PIN (8250-071) QTY.1 (A19)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.24 (A20)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4 Page DPLS.4-112008...
Page 24
DPLS ASSEMBLY INSTRUCTIONS Cable to match illustration assemble direction Start at high pulley station by inserting the Metal Ball End here. Ø10 cable wire head Selector Rod DETAIL VIEW 14.1 Page DPLS.4-082010...
Page 28
DPLS ASSEMBLY INSTRUCTIONS Cable to match illustration Note:If connecting to the DGYM, please see the DGYM instruction. assemble direction Cable for DGYM only Ø10 cable wire head Selector Rod DETAIL VIEW 16.1 Page DPLS.4-112008...
