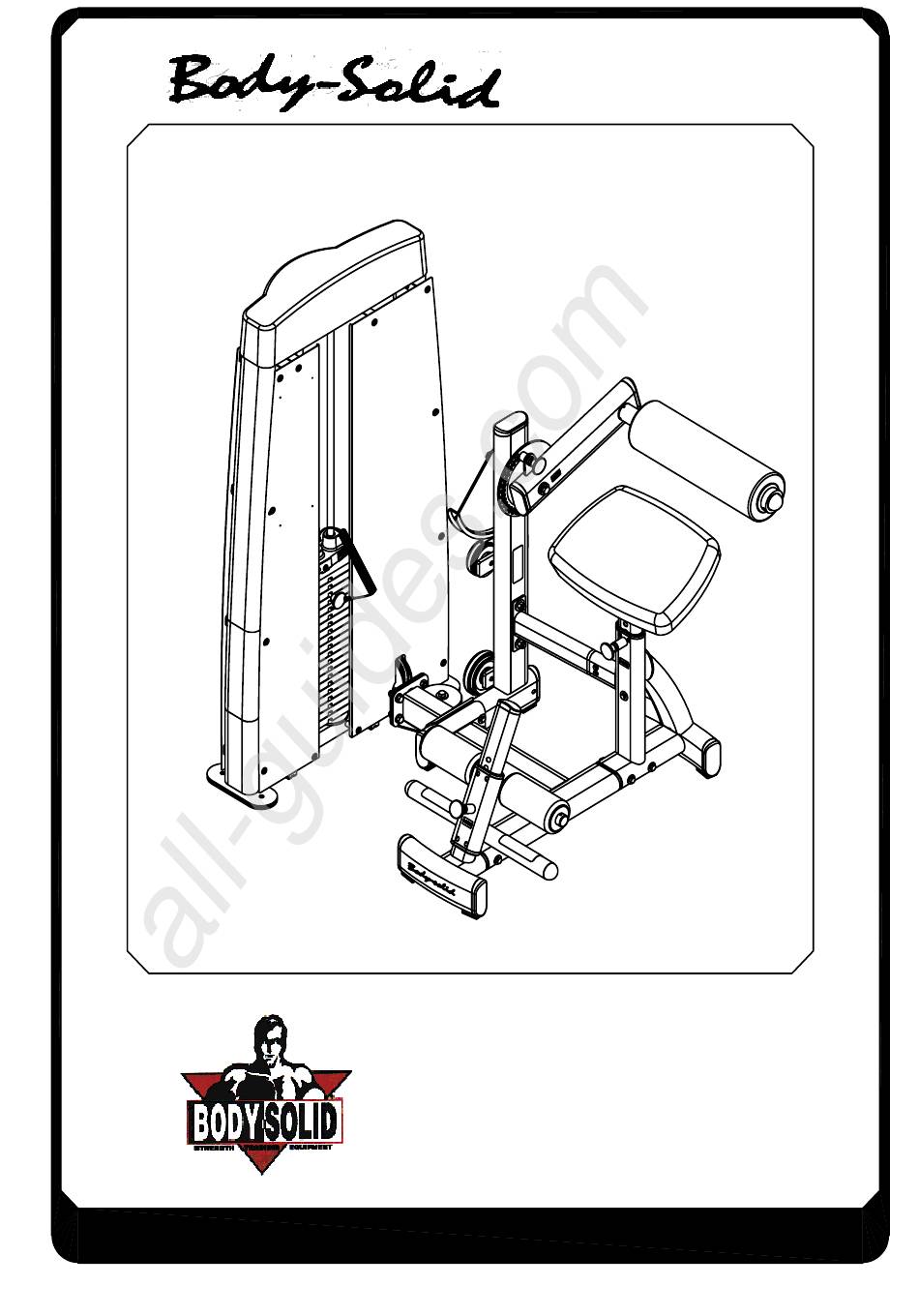

- Page 1 All manuals and user guides at all-guides.com BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com OWNER'S MANUAL DABB.1...
- Page 2 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/2"L PARTIAL QTY.3 (A2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (A3)HEX BOLT 1/2"X3-3/4"L PARTIAL QTY.2 (A4)HEX BOLT 3/8"X3-1/4"L PARTIAL QTY.3 (A5)HEX BOLT 5/16"X1-1/4"L PARTIAL QTY.4 (A6)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1 DABB.1-102006 Page...
- Page 3 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A7)STEEL BUSHING 1/2"X 8.5X21L QTY.1 DABB.1-102006 Page...
- Page 4 (B1)NYLON LOCK NUT1/2" QTY.6 (C3)3/8"(I.D.)FLAT WASHER 27 QTY.6 (B2)NYLON LOCK NUT 3/8" QTY.3 (C4)5/16"(I.D.)FLAT WASHER 16 QTY.2 (B3)NYLON LOCK NUT 5/16" QTY.1 (C5)5/16"(I.D.)FLAT WASHER 24 QTY.4 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.6 (C6)SPRING WASHER 5/16" QTY.4 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.6 DABB.1-102006 Page...
- Page 5 HARDWARW ILLUSTRATION (AA1)ALLEN SCREW 5/16"X3/8"L FULL THREAD QTY.3 (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3 (AA3)ROUND INNER HEX SCREW M4X65L PARTIAL QTY.2 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20 (AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 DABB.1-102006 Page...
- Page 6 (AA7)10LB PIN(8250-071) QTY.1 (CC3)M4(I.D.)FLAT WASHER 12 QTY.2 (AA8)ELASTIC BOLT QTY.1 (AA9)WEIGHT STACK CABLE (8260-009) QTY.1 (CC4)SPRING WASHER 1/2" QTY.1 (BB1)NUT 1/2"-13UNC QTY.1 (CC5)SPRING WASHER 3/8" QTY.1 (BB2)NYLON LOCK NUT1/2" QTY.3 (CC6)1/2"(I.D.)FLAT WASHER 25 QTY.2 (CC1)1/2"(I.D.)FLAT WASHER 34 QTY.4 DABB.1-102006 Page...
- Page 7 ------------------------------------- [1PCS] (D16) 131X30 PULLEY CAP(9211-116) --------------------------------------------[1PCS] (D17)3485mm STEEL CABLE ------------------------------------------------------[1PCS] (D18) 3/4" SHAFT COLLAR(9211-046) --------------------------------------------[2PCS] (D19) 4"RUBBER DOUNT(9310-017) ---------------------------------------------[2PCS] (D20)TOP PLATE(8400-006) -------------------------------------------------------[1PCS] (D21)WEIGHT SELECTOR BAR(8210-042) ---------------------------------------[1PCS] (D22)95X250 RUBBER PAD(9310-060) ------------------------------------------[2PCS] (D23)DABB FOR DGYM STEEL CABLE(FDABBB) ----------------------------[1PCS] 3485 DABB.1-102006 Page...
-
Page 8: Parts Illustration
PARTS ILLUSTRATION A [1PCS] C [1PCS] B1 [1PCS] D [1PCS] E1[1PCS] F [1PCS] H [1PCS] I [1PCS] J [1PCS] K [1PCS] L [1PCS] M [1PCS) 8321-091 N [1PCS] O [1PCS] P [2PCS] 9122-039 9161-047 9161-032 Q [1PCS] 9440-163 DABB.1-102006 Page... - Page 9 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION AA[1PCS] AB[1PCS] 6610-002 8380-046 AC[1PCS] AD[1PCS] 8380-047 8380-048 AF[1PCS] AE[2PCS] 9211-111 260158A 3/4"X1.6tX1407L AG[2PCS] AH[9PCS] 8313-144 8321-040 50.5 AI[1PCS] AJ[2PCS] 8321-040 8321-040 50.5 50.5 DABB.1-102006 Page...
- Page 10 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed M10 Washer X5 M10X16L HEX Bolt X5 M10 Washer X6 M10X16L HEX Bolt X6 DABB.1-102006 Page...
- Page 11 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed C5X4 3/16"x3/16" Allen Head Screw x 4 C6X4 D5X2 D13X4 A5X4 D6X2 1" Chrome Collar x 2 3/8"X3/4"L Round Inner Head 3/8" Spring Washer DABB.1-102006 Page...
- Page 12 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed M6 Washer X4 M6x12 HEX Bolt X 4 3/8"X3" HEX Bolt 3/8" Washer DABB.1-102006 Page...
- Page 13 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed 1/2"X3/4"L HEX Bolt 1/2" Washer 6X6X45L Key 1/2"X3/4"L HEX Bolt 1/2" Washer 1/2" Washer 1/2"X3/4"L HEX Bolt 3/16"X3/16" Allen Head Screw 2" Chrome Collar DABB.1-102006 Page...
- Page 14 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Detail View Above shows STEP 5 assembled and completed 5/16"X5/16" Allen Head Bolt x4 1/2" WASHER X2 1/2" PLATE WASHER X2 1/2"X1-1/2"L HEX BOLTX2 DABB.1-102006 Page...
- Page 15 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed AJX2 M6X12 Round Bolt X4 M6 Washer X4 AGx2 M10X25L Cone Bolt x8 D22x2 DABB.1-102006 Page...
- Page 16 All manuals and user guides at all-guides.com ASSEMBLY INSTRUCTIONS DABB Above shows STEP 8 assembled and completed DABB.1-102006 Page...
- Page 17 All manuals and user guides at all-guides.com ASSEMBLY INSTRUCTIONS DABB Above shows STEP 8 assembled and completed DABB.1-102006 Page...
- Page 18 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed 1/2"x1"L HEX Bolt 1/2" Washer B1x3 C2x3 DABB.1-102006 Page...
- Page 19 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed 1/2" Washer Detail View 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt Detail View D17. WEIGHT STACK CABLE 3485 AA1X3 DABB.1-102006 Page...
- Page 20 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Above shows STEP 11 assembled and completed M6X12 Round Bolt X21 M6 Washer X21 CC3X2 AA3X2 AA6X4 DABB.1-102006 Page...
- Page 21 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS Above shows STEP 12 assembled and completed D23. 1/2"X1"L HEX Bolt 1/2" Washer A1X3 C2X3 C2X3 B1X3 DABB.1-102006 Page...
- Page 22 All manuals and user guides at all-guides.com DABB ASSEMBLY INSTRUCTIONS DGYM DABB DABB.1-102006 Page...
