BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com
DBTC.1
OWNER'S MANUAL

Advertisement

loading

Summary of Contents for Body Solid DBTC.1

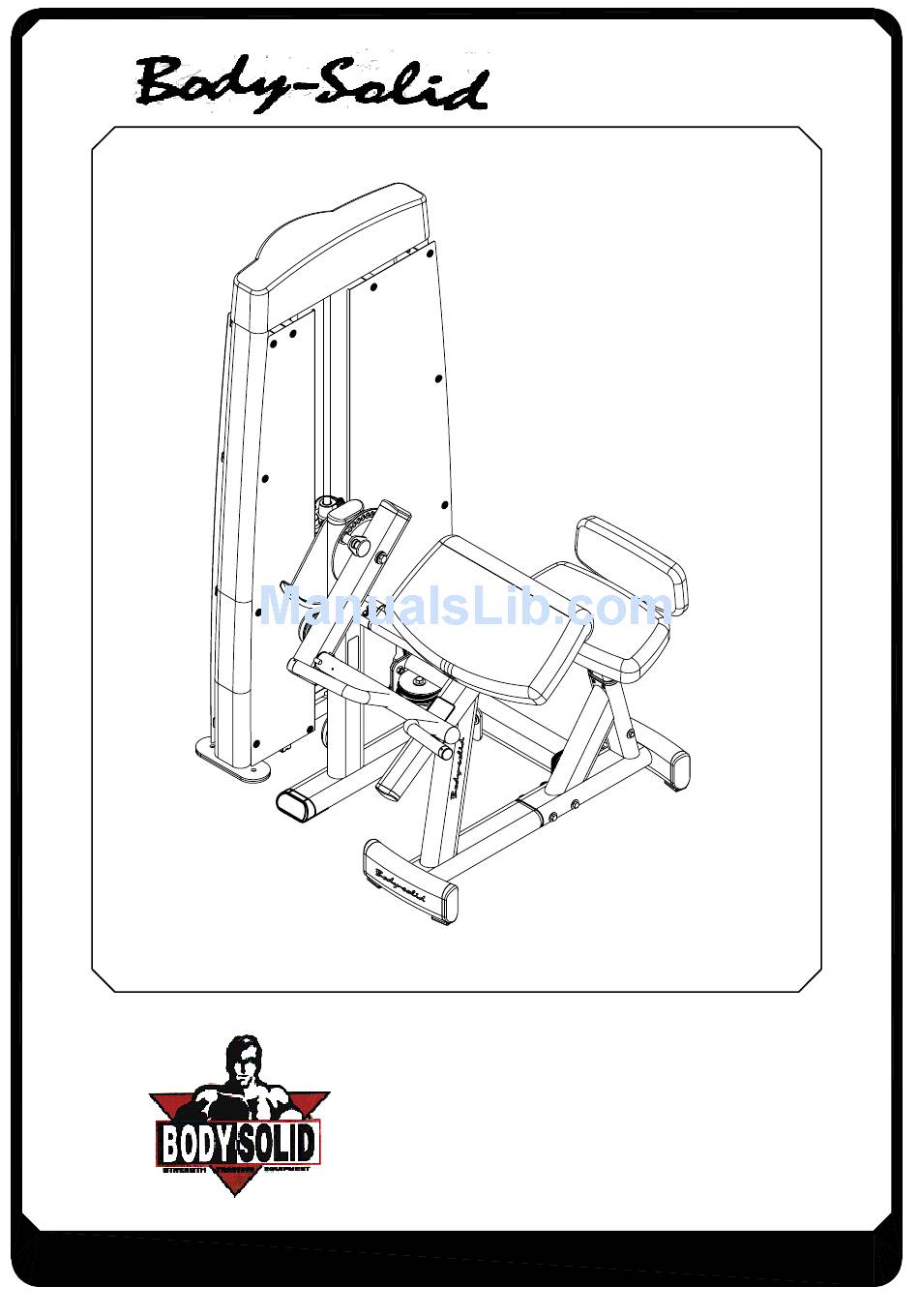

  • Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DBTC.1 OWNER'S MANUAL...
  • Page 2 DBTC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.5 (A2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (A3)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.1 (A4)HEX BOLT 5/16"X1"L PARTIAL QTY.12 (A5)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1 (A6)STEEL BUSHING 1/2"X 8.5X21L QTY.1 DBTC.1-102006 Page...
  • Page 3 DBTC ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.7 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.12 (B2)NYLON LOCK NUT 5/16" QTY.1 (C5)SPRING WASHER 5/16" QTY.12 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.8 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.6 (C3)5/16"(I.D.)FLAT WASHER 16 QTY.2 DBTC.1-102006 Page...
  • Page 4 HARDWARW ILLUSTRATION (AA1)ALLEN SCREW 5/16"X3/8"L FULL THREAD QTY.3 (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3 (AA3)ROUND INNER HEX SCREW M4X65L PARTIAL QTY.2 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20 (AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 DBTC.1-102006 Page...
  • Page 5 (AA7)10LB PIN(8250-071) QTY.1 (CC3)M4(I.D.)FLAT WASHER 12 QTY.2 (AA8)ELASTIC BOLT QTY.1 (AA9)WEIGHT STACK CABLE (8260-009) QTY.1 (CC4)SPRING WASHER 1/2" QTY.1 (BB1)NUT 1/2"-13UNC QTY.1 (CC5)SPRING WASHER 3/8" QTY.1 (BB2)NYLON LOCK NUT1/2" QTY.3 (CC6)1/2"(I.D.)FLAT WASHER 25 QTY.2 (CC1)1/2"(I.D.)FLAT WASHER 34 QTY.4 DBTC.1-102006 Page...
  • Page 6 ------------------------------------------- [1PCS] (D14) 131X30 END CAP(9211-116) -----------------------------------------------[1PCS] -------------------------------------------[1PCS] (D15)3677mm STELL CABLE(FDBTCA) (D16) 3/4" SHAFT COLLAR(9211-046) --------------------------------------------[2PCS] (D17) 4" RUBBER DOUNT(9310-017) ---------------------------------------------[2PCS] (D18)TOP PLATE(8400-006) -------------------------------------------------------[1PCS] (D19)WEIGHT SELECTOR BAR(8210-042) --------------------------------------[1PCS] (D20)95X250 RUBBER PAD(9310-060) --------------------------------------------[2PCS] (D21)DBTC FOR DGYM STEEL CABLE(FDBTCB) -----------------------------[1PCS] 3677 DBTC.1-102006 Page...
  • Page 7: Parts Illustration

    PARTS ILLUSTRATION A1 [1PCS] C [1PCS] B [1PCS] D [1PCS] F1 [1PCS] G [1PCS] H [1PCS] I [1PCS] J [1PCS] K [1PCS] L [1PCS] M [1PCS] 13CPTB 8312-062 9132-019 N [1PCS] O [1PCS] P [1PCS] 9122-038 9111-060 9440-162 DBTC.1-102006 Page...
  • Page 8 ASSEMBLY INSTRUCTIONS DBTC PARTS ILLUSTRATION AA[1PCS] AB[1PCS] 6610-002 8380-046 AC[1PCS] AD[1PCS] 8380-047 8380-048 AF[1PCS] AE[2PCS] 9211-111 260158A 3/4"X1.6tX1407L AG[2PCS] AH[9PCS] 8313-144 8321-040 50.5 AJ[2PCS] AI[1PCS] 8321-040 8321-040 50.5 50.5 DBTC.1-102006 Page...
  • Page 9 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 1 assembled and completed 1/2" Washer X2 1/2"X3/4"L HEX Bolt X2 A1X2 C1X2 C1X2 B1X2 M10X16L HEX Bolt X5 M10 Washer X5 DBTC.1-102006 Page...
  • Page 10 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP2 assembled and completed M6X12L HEX Bolt X8 M6 Washer X8 1/2" Washer 1/2" X3-1/4"L HEX Bolt DBTC.1-102006 Page...
  • Page 11 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 3 assembled and completed 1/2"X3/4"L HEX Bolt 6X6X45L Key 1/2" Washer 1/2" Washer 1/2"X3/4"L HEX Bolt 1/2"X3/4"L HEX Bolt 1/2" Washer DBTC.1-102006 Page...
  • Page 12 Detail View Above shows STEP 4 assembled and completed 5/16"X5/16"L Allen Head Bolt X4 1/2" Washer 1/2"x3/4"L HEX Bolt 1/2" Washer 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt 1/2" Washer 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt DBTC.1-102006 Page...
  • Page 13 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 5 assembled and completed A4X4 C5X4 C4X4 C4X4 C4X4 C5X4 A4X4 C5X4 A4X4 3/8" Spring Washer 3/8"x3/4"L Round Inner Head DBTC.1-102006 Page...
  • Page 14 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 6 assembled and completed M6X12 Round Bolt X4 M6 Washer X4 AGx2 M10X25L Cone Bolt x8 D20x2 DBTC.1-102006 Page...
  • Page 15 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 7 assembled and completed D16X2 AEX2 D17X2 DBTC.1-102006 Page...
  • Page 16 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 8 assembled and completed DBTC.1-102006 Page...
  • Page 17 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 9 assembled and completed 1/2"X1"L HEX Bolt 1/2" Washer B1X3 C2X3 C2X3 A1X3 DBTC.1-102006 Page...
  • Page 18 ASSEMBLY INSTRUCTIONS DBTC Detail View Above shows STEP 10 assembled and completed WEIGHT STACK CABLE AA1X3 Detail View 1/2" Washer 1/2" Round End Cap Washer 1/2"x1-1/2"L HEX Bolt DBTC.1-102006 Page...
  • Page 19 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 11 assembled and completed M6X12 Round Bolt X21 M6 Washer X21 CC3X2 AA3X2 AA6X4 DBTC.1-102006 Page...
  • Page 20 ASSEMBLY INSTRUCTIONS DBTC Above shows STEP 12 assembled and completed D21. 1/2"X1"L HEX Bolt 1/2" Washer DBTC.1-102006 Page...
  • Page 21 ASSEMBLY INSTRUCTIONS DBTC DGYM DBTC DBTC.1-102006 Page...
