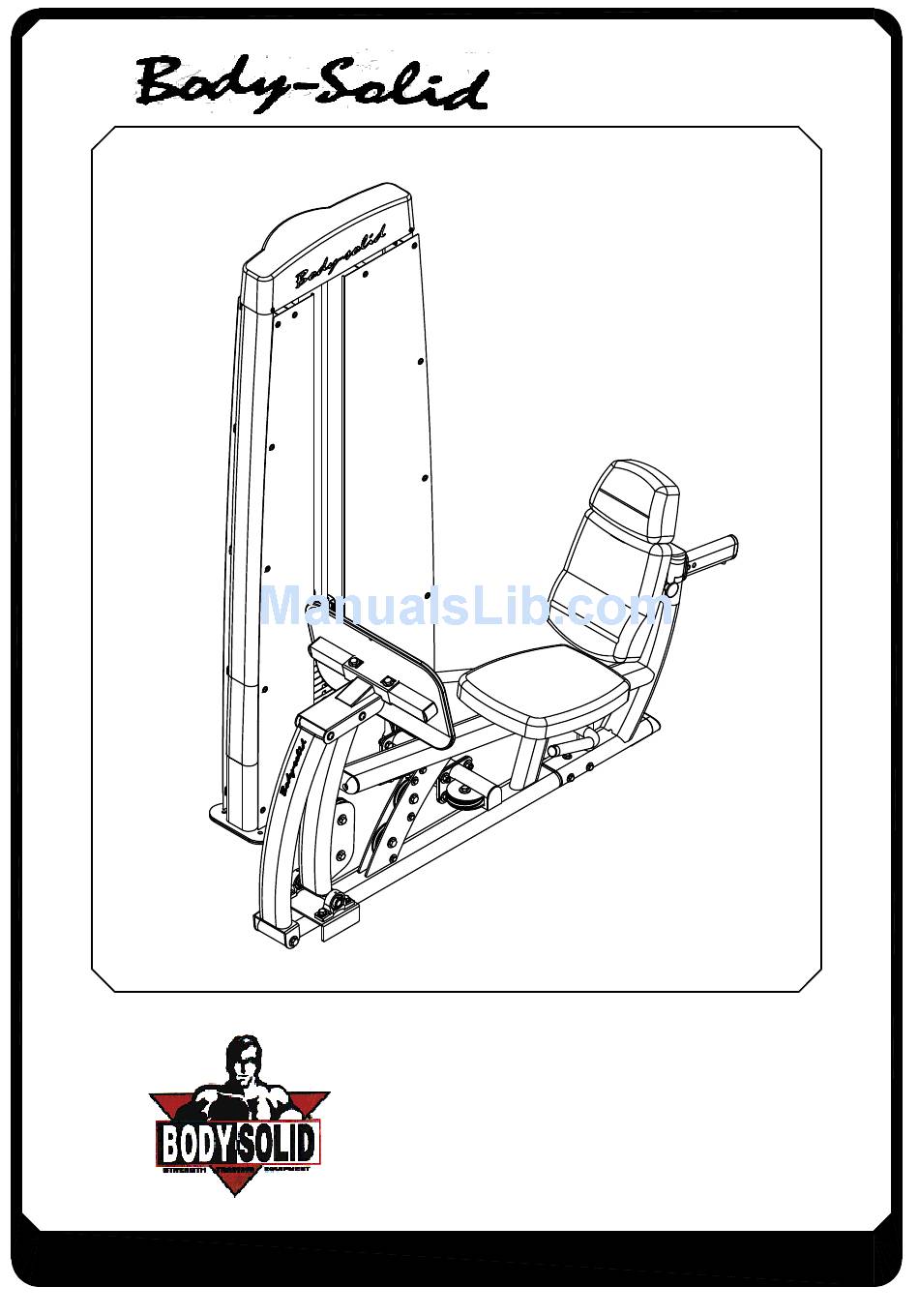

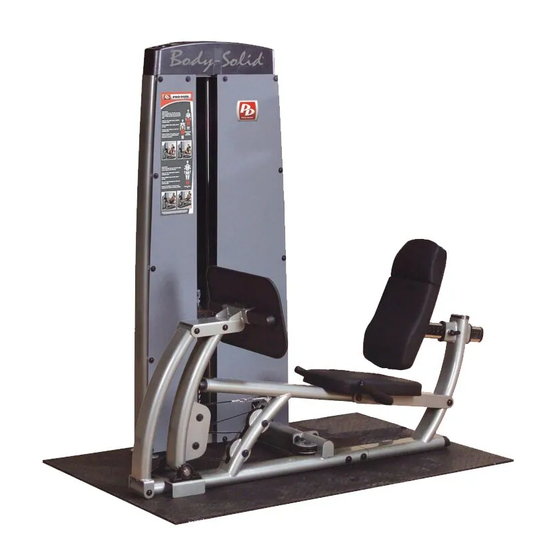

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DCLP.1 OWNER'S MANUAL...
- Page 2 ASSEMBLY INSTRUCTIONS DCLP HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.8 (A2)HEX BOLT 1/2"X1-3/4"L PARTIAL QTY.4 (A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.2 (A4)HEX BOLT 1/2"X2-1/2"L PARTIAL QTY.2 (A5)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2 DCLP.1-042007 Page...
- Page 3 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A6)HEX BOLT 1/2"X5-3/4"L PARTIAL QTY.2 (A7)HEX BOLT 3/8"X2"L PARTIAL QTY.4 (A8)HEX BOLT 5/16"X1"L PARTIAL QTY.4 (A9)HEX BOLT 5/16X3-1/4"L PARTIAL QTY.2 DCLP.1-042007 Page...
- Page 4 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.20 (C3)3/8"(I.D.)FLAT WASHER 27 QTY.8 (B2)NYLON LOCK NUT 3/8" QTY.4 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.6 (C5)SPRING WASHER 5/16" QTY.6 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.24 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.16 DCLP.1-042007 Page...
- Page 5 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.4 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEAD 3/8"X3-1/2"L PARTIAL QTY.1 (AA6)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.24 (AA7)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 DCLP.1-062007 Page...
- Page 6 (CC2)1/2"(I.D.)FLAT WASHER 34 QTY.6 (AA11)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC3)M6(I.D.)FLAT WASHER 13 QTY.24 (AA12)FIRM SHEATH(8890-046) QTY.1 (CC6)SPRING WASHER 3/8" QTY.1 (BB2)NYLON LOCK NUT1/2" QTY.4 (BB3)NYLON LOCK NUT3/8" QTY.1 (CC7)1/2"(I.D.)FLAT WASHER 25 QTY.2 (BB4)NYLON LOCK NUT M10 QTY.1 DCLP.1-062007 Page...
- Page 7 ------------------------------------------- [2PCS] (D10) 4"RUBBER DOUNT(9310-017) -----------------------------------------------[2PCS] (D11)TOP PLATE(8400-006) --------------------------------------------------------- [1PCS] (D13)95X250 RUBBER PAD(9310-060) -------------------------------------------- [2PCS] (D14)2895 STEEL CABLE(FDCLPA) ---------------------------------------------- [1PCS] (D15)3705 STEEL CABLE(FDCLPB) ----------------------------------------------- [1PCS] -------------------------------- [1PCS] (D16)DLP FOR DGYM STEEL CABLE(FDCLPC) (D17)WEIGHT SELECTOR BAR(8210-042B) ------------------------------------ [1PCS] 3705 2895 DCLP.1-042007 Page...
-
Page 8: Parts Illustration
PARTS ILLUSTRATION A [1PCS] C [1PCS] B [1PCS] D [1PCS] E[1PCS] F [1PCS] G [1PCS] H [1PCS] I [1PCS] Direction J [1PCS] K [1PCS] L [1PCS) 9111-055 9122-040 Direction M [2PCS) N [1PCS) O [1PCS) 8510-005 6640-001 9440-160 DCLP.1-042007 Page... - Page 9 DCLP ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION AA[1PCS] AB[1PCS] 6610-003 8380-051 AC[1PCS] AD[1PCS] 8380-049 8380-050 AF[1PCS] AE[2PCS] 9211-111 260159 ( 3/4"X1932L) AG[2PCS] AH[11PCS] 8313-144 8321-040 50.5 AI[1PCS] AJ[2PCS] 8321-040 8321-040 50.5 50.5 DCLP.1-042007 Page...
- Page 10 DCLP ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed M10X25L HEX BOLT X2 M10 Washer X2 FLAT ALLEN HEAD M12X20L X2 DCLP.1-042007 Page...
- Page 11 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 2 assembled and completed M10 Washer X4 M10X16L Round Bolt X4 5/8"X129L Shaft X2 M10 Washer X6 M10X16L HEX BOLT X6 3/4"X143L Shaft 1/2"X3/4"L HEX Bolt X2 1/2" Washer X2 DCLP.1-042007 Page...
- Page 12 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 3 assembled and completed DCLP.1-042007 Page...
- Page 13 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 5 assembled and completed D8X2 DCLP.1-042007 Page...
- Page 14 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 6 assembled and completed AJX2 AGX2 M10X25L Cone Bolt X8 D13X2 DCLP.1-042007 Page...
- Page 15 ASSEMBLY INSTRUCTIONS DCLP NOTE ： FINGER TIGHTEN PULLEY FASTENERS PULLEYS WILL BE Above shows STEP 7 REMOVED TO INSTALL CABLE assembled and completed D9X2 AEX2 CC3X20 AA6X20 D10X2 DCLP.1-042007 Page...
- Page 16 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 8 assembled and completed DCLP.1-042007 Page...
- Page 17 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 9 assembled and completed DCLP.1-042007 Page...
- Page 18 DCLP ASSEMBLY INSTRUCTIONS D14. D15. Above shows STEP 10 assembled and completed Detail View WEIGHT STACK CABLE AA11 AA12 M4 SCREW Selector Rod Detail View C3X4 B2X4 1/2"x1-3/4"L HEX Bolt 1/2" Washer A3X2 DCLP.1-042007 Page...
- Page 19 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 11 assembled and completed M6X12L Round Bolt X25 M6 Washer X25 M6 Washer X4 M6X20L Round Bolt X4 AA7X4 DCLP.1-062007 Page...
- Page 20 DCLP ASSEMBLY INSTRUCTIONS Cable to match illustration Double strength(D9) Cable for DGYM only(D16) DCLP.1-042007 Page...
- Page 21 DCLP ASSEMBLY INSTRUCTIONS DGYM DCLP DCLP.1-042007 Page...
