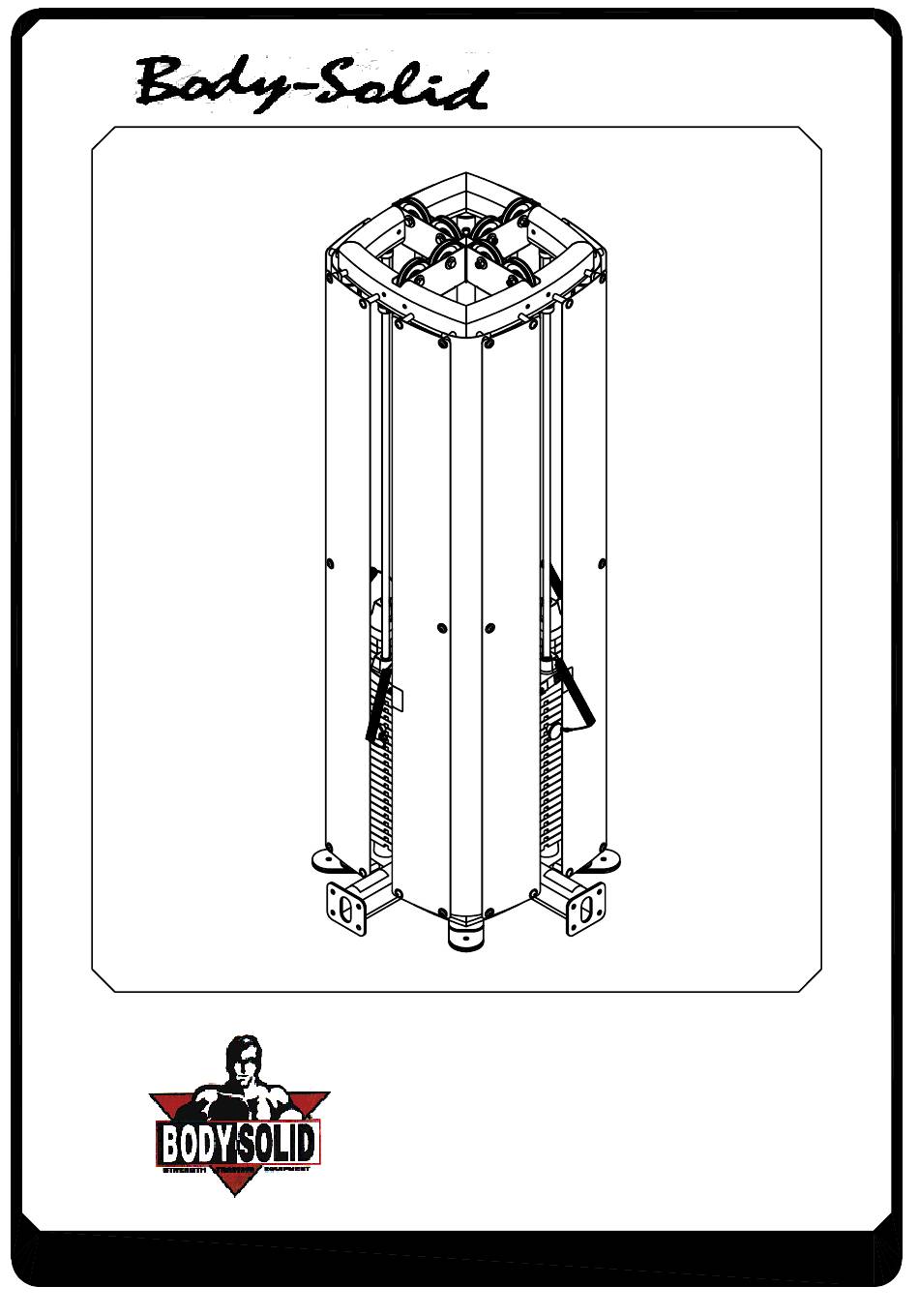

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DGYM OWNER'S MANUAL...
- Page 2 DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.8 (A2)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.8 (A3)ROUND ALLEN HEAD 3/8"x2"L PARTIAL THREAD QTY.4 (A4)HEX BOLT 3/8"x3/4"L PARTIAL THREAD QTY.16 (A5)HEX BOLT 5/16"x1 3/4"L PARTIAL THREAD QTY.4 Page DGYM-102006...
- Page 3 DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)ROUND ALLEN HEAD M10X35L PARTIAL THREAD QTY.8 Page DGYM-102006...
- Page 4 DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A7)ALLEN SCREW 5/16"X3/8"L PARTIAL THREAD QTY.12 (A8)ELASTIC BOLT QTY.4 (A9)10LB PIN (8250-071) QTY.4 (A10)WEIGHT STACK CABLE (8260-009) QTY.4 (A11)IMMOBILE COVER Ø1/2"XØ8.5X21.5L(8690-012) QTY.4 Page DGYM-102006...
-
Page 5: Hardware Illustration
DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C3)3/8"(I.D.)SPRING WASHER QTY.4 (B1)NYLON LOCK NUT 1/2" QTY.16 (C4)5/16"(I.D.)FLAT WASHER 16 QTY.8 (B2)NYLON LOCK NUT 5/16" QTY.4 (C5)1/2"(I.D.)SPRING WASHER QTY.4 (B3)NYLON LOCK NUT 1/2"X13UNCX8T QTY.4 (B4)NYLON LOCK NUT M10 QTY.8 (C6)M10(I.D.)FLAT WASHER 27 QTY.16 (C2)M10(I.D.)FLAT CURVED WASHER R30 20 QTY.16... - Page 6 DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION 3/4"X8L STEEL BUSHING (8110-014)-----------------------[8PCS] 3/4"X19.5L STEEL BUSHING (8110-017)-------------------[24PCS] 3/4" SHAFT COLLAR(9211-046)-------------------------------[8PCS] 20X70L RUBBER DOUNT(9310-049)-----------------[8PCS] D5.95X250 RUBBER PAD(9310-060)--------------------------------[4PCS] D6.WEIGHT SELECTOR BAR(8210-042)---------------------------[4PCS] 117 PULLEY(9213-010B)-----------------------------------------[16PCS] D8.TOP PLATE(8400-006)----------------------------------------------[4PCS] D9.2085mm STEEL CABLE(FDGYMA)------------------------------[4PCS] 2085 Page DGYM-102006...
- Page 7 DGYM ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D11.4770mm DABB For DGYM Steel Cable(FDIOTC)------------------[1PCS] D12.4950mm DBTC For DGYM Steel Cable(FDBTCB)-----------------[1PCS] D13.4350mm DCLP For DGYM Steel Cable(FDCLPC)-----------------[1PCS] D14.3170mm DIOT For DGYM Steel Cable(FDIOTC)-------------------[1PCS] D15.7605mm DLAT For DGYM Steel Cable(FDLATC)------------------[1PCS] D16.5000mm DLEC For DGYM Steel Cable(FDLECB)------------------[1PCS] D17.4555mm DPCC For DGYM Steel Cable(FDPCCC)-----------------[1PCS]...
- Page 8 DGYM ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET B[1PCS] A[1PCS] 6610-005 6610-004 D[4PCS] C[4PCS] 6640-001 6610-006 E[4PCS] F[4PCS] 8380-053 8380-053 Stick to the paper G[4PCS] H[8PCS] 8380-054 5313-Y002 Page DGYM-102006...
- Page 9 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed Page DGYM-122006...
- Page 10 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed Page DGYM-122006...
- Page 11 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed Page DGYM-102006...
- Page 12 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed Page DGYM-102006...
- Page 13 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed Page DGYM-102006...
- Page 14 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed Page DGYM-102006...
- Page 15 DGYM ASSEMBLY INSTRUCTIONS Cable to match illustration Single time of strength WEIGHT CABLE DETAIL VIEW Constitute Dual Machine DPEC, DBTC, DLEC, DABB, DLAT, DPLS, DPCC Page DGYM-102006...
- Page 16 DGYM ASSEMBLY INSTRUCTIONS Cable to match illustration DETAIL VIEW DETAIL VIEW Double strength(D9) WEIGHT CABLE DETAIL VIEW Constitute Dual Machine DCLP, DIOT, DPRS Page DGYM-102006...
- Page 17 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed M10 WASHER X8 M10X35L ROUND BOLT X8 M10X16L ROUND BOLT X8 M10 WASHER X8 M10 WASHER X8 M10X35L ROUND BOLT X8 M10X16L ROUND BOLT X8 M10 WASHER X8 Page DGYM-102006...
- Page 18 DGYM ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed Dual exercise charts Page DGYM-102006...
