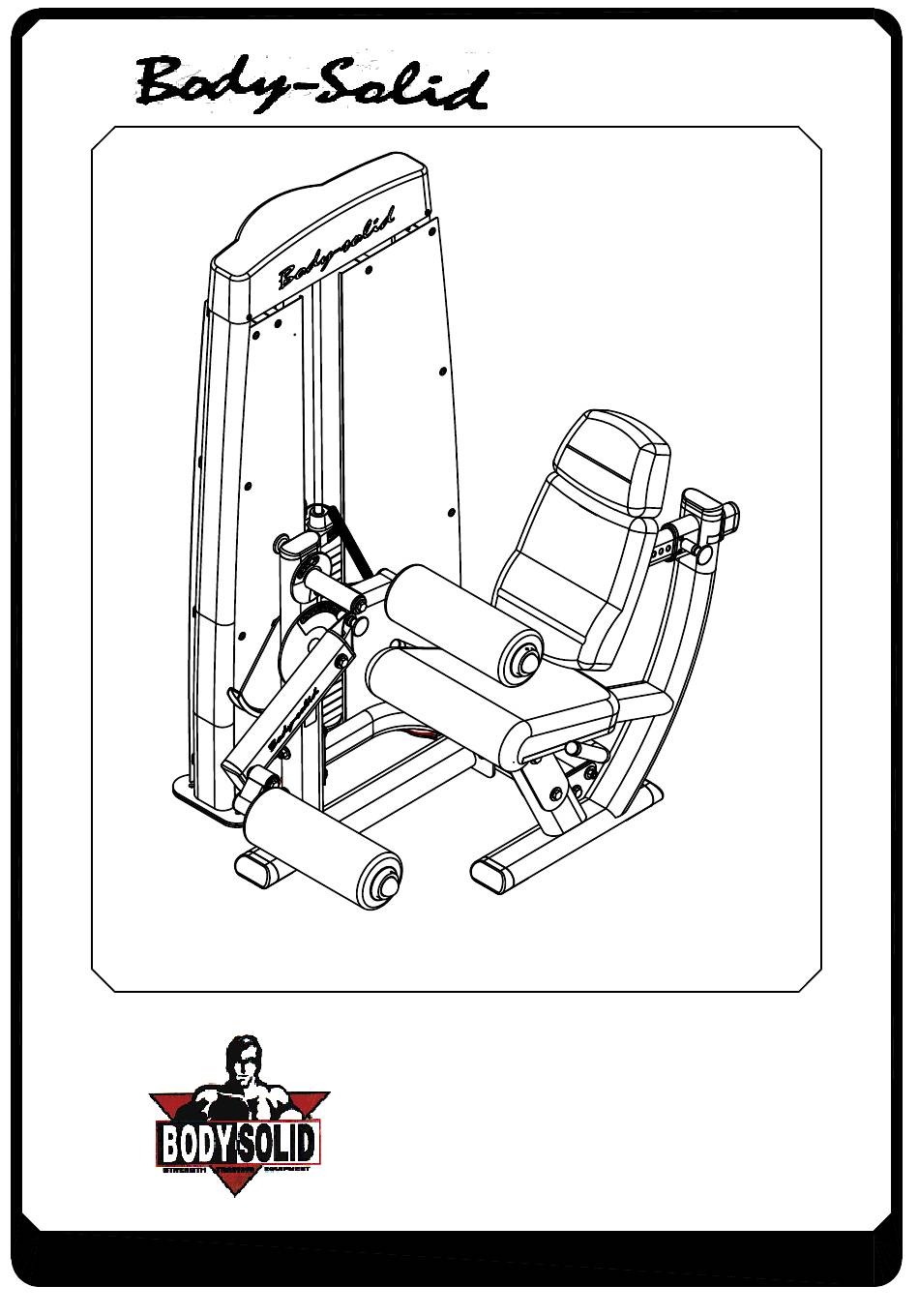

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com DLEC.3 OWNER'S MANUAL...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e ...
- Page 3 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
-
Page 4: Hardware Illustration
DLEC ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.2 (A2)HEX BOLT 1/2"X1-1/2"L PARTIAL QTY.3 (A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1 (A4)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2 (A5)HEX BOLT 1/2"X3-3/4"L PARTIAL QTY.1 DLEC.3-122008 Page... - Page 5 DLEC ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)HEX BOLT 1/2"X5-1/2"L PARTIAL QTY.2 (A7)HEX BOLT 1/2"X5-3/4"L PARTIAL QTY.2 (A8)HEX BOLT 5/16"X1"L PARTIAL QTY.6 (A9)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1 (A10)HEX BOLT 5/16"X3"L PARTIAL QTY.1 DLEC.3-122008 Page...
- Page 6 ASSEMBLY INSTRUCTIONS DLEC HARDWARE ILLUSTRATION (A11) 1/2"X 8.5X21L STEEL BUSHING(8110-062) QTY.1 DLEC.3-022017 Page...
- Page 7 DLEC ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.13 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.7 (B2)NYLON LOCK NUT 5/16" QTY.1 (C5)SPRING WASHER 5/16" QTY.7 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.20 (C2)1/2"(I.D.)FLAT WASHER 25 QTY.6 (C3)5/16"(I.D.)FLAT WASHER 16 QTY.2 DLEC.3-122008 Page...
- Page 8 DLEC ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20 (AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4 (AA7)10LB PIN(8250-071) QTY.1 DLEC.3-122008 Page...
- Page 9 (CC2)M6(I.D.)FLAT WASHER 13 QTY.20 (AA8)ELASTIC BOLT QTY.1 (AA10)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC5)SPRING WASHER 3/8" QTY.1 (AA11)FIRM SHEATH(8890-046) QTY.1 (CC6)1/2"(I.D.)FLAT WASHER 25 QTY.2 (BB2)NYLON LOCK NUT1/2" QTY.3 (BB3)NYLON LOCK NUT M10 QTY.1 (CC1)1/2"(I.D.)FLAT WASHER 34 QTY.4 DLEC.3-122008 Page...
- Page 10 ------------------------------------------- [1PCS] (D16) 131X30 END CAP(9211-116) -----------------------------------------------[1PCS] --------------------------------------------[1PCS] (D17)3580mm STEEL CABLE(FDLECA) (D18) 3/4" SHAFT COLLAR(9211-046) -------------------------------------------[2PCS] (D19) 4" RUBBER DOUNT(9310-017) ---------------------------------------------[2PCS] (D20)TOP PLATE(8400-006) --------------------------------------------------------[1PCS] (D22)95X250 RUBBER PAD(9310-060) -------------------------------------------[2PCS] (D23)DLEC FOR DGYM CABLE(FDLECB) -----------------------------------------[1PCS] (D24)WEIGHT SELECTOR BAR(8210-042B) ------------------------------------[1PCS] 3580 DLEC.3-122008 Page...
-
Page 11: Parts Illustration
C [1PCS] B [1PCS] D [1PCS] E[1PCS] F1 [1PCS] I [1PCS] G1 [1PCS] H [1PCS] J [1PCS] K [1PCS] L [1PCS) O[1PCS] M [1PCS] N [1PCS] 9111-055 8312-062 8313-135 P [2PCS] Q [2PCS] R [1PCS] 9121-053 9161-034B 9440-161 DLEC.3-122008 Page... - Page 12 DLEC ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION AA[1PCS] AB[1PCS] 6610-002 8380-046 AC[1PCS] AD[1PCS] 8380-047 8380-048 AK[1PCS] AE[2PCS] 9211-111A 260158A 3/4"X1.6tx1407L AG[2PCS] AH[9PCS] 8313-144 8321-040 50.5 AI[1PCS] AJ[2PCS] 8321-040 8321-040 50.5 50.5 DLEC.3-122008 Page...
- Page 13 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed C1X2 A1X2 1/2" Washer 1/2"X1"L HEX Bolt B1X2 C1X2 DLEC.3-122008 Page...
- Page 14 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed A6X2 1/2" Washer 1/2"X3-1/4"L HEX Bolt DLEC.3-122008 Page...
- Page 15 Above shows STEP 3 assembled and completed 1/2"X3/4"L HEX Bolt 1/2" Washer 6X6X45L Key 1/2" Washer 1/2"X3/4"L HEX Bolt D3 D5 1/2"X3/4"L HEX Bolt 1/2" Washer 1/2" Washer 1/2"X3/4"L HEX Bolt 5/16"X5/16" Allen Head Bolt X2 2" Chrome Collar X2 DLEC.3-122008 Page...
- Page 16 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 4 assembled and completed 5/16"x3/4"L Round Inner Head 5/16" Spring Washer C1X2 C1X2 B1X2 DLEC.3-122008 Page...
- Page 17 DLEC ASSEMBLY INSTRUCTIONS Detail View Above shows STEP5 assembled and completed 5/16"X5/16"L Allen Head Bolt X4 1/2" Washer X2 1/2"X3/4"L HEX Bolt X2 1/2"X1-1/2"L HEX Bolt X2 1/2" Washer X2 1/2" Round End Cap Washer X2 DLEC.3-122008 Page...
- Page 18 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed DLEC.3-122008 Page...
- Page 19 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 7 assembled and completed M6X12 Round Bolt x4 M6 Washer x4 AGx2 M10X25L Cone Bolt x8 D22x2 DLEC.3-122008 Page...
- Page 20 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed D18X2 AEX2 D19X2 DLEC.3-122008 Page...
- Page 21 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 9 assembled and completed DLEC.3-122008 Page...
- Page 22 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 10 assembled and completed A2X3 C2X3 1/2" Washer 1/2"X1"L HEX Bolt C2X3 B1X3 DLEC.3-122008 Page...
- Page 23 DLEC ASSEMBLY INSTRUCTIONS D17. Above shows STEP 11 assembled and completed Detail View WEIGHT STACK CABLE AA10 M4 SCREW AA11 Selector Rod Detail View A9 C3 1/2" Washer 1/2" Round End Cap Washer 1/2"X1-1/2"L HEX Bolt DLEC.3-122008 Page...
- Page 24 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 12 assembled and completed M6X20L Round Bolt X4 M6 Washer X4 M6X12L Round Bolt X21 M6 Washer X21 AA6X4 DLEC.3-122008 Page...
- Page 25 DLEC ASSEMBLY INSTRUCTIONS Above shows STEP 13 assembled and completed D23. 1/2"X1"L HEX Bolt 1/2" Washer DLEC.3-122008 Page...
- Page 26 DLEC ASSEMBLY INSTRUCTIONS DGYM DLEC DLEC.3-122008 Page...
- Page 27 ASSEMBLY INSTRUCTIONS Anti-cable Break Up Supplement Page BA[2PCS] 8331-015 13.5 PULLEY(9213-010B) NYLON LOCK NUT 1/2" 1/2"(I.D.)FLAT WASHER DFA/DFD HEX BOLT 1/2"x2 1/4"L 1/2"(I.D.)FLAT WASHER DF-042017 Page...
